Most people buy the wrong size compressor for car painting, then blame the paint. A 20-gallon pancake tank will start a spray pass, run out of air halfway across a door, and leave a texture change you can see in the sun. For a full car respray you want a 60 to 80 gallon, two-stage machine delivering at least 13 CFM at 40 PSI, and more if you are running an HVLP gun. For touch-up work and single panels, a 20 gallon oil-free unit is enough.
This roundup covers the best air compressors for painting cars that actually fit the job scale question, from quiet 10-gallon units for a home garage to larger 20-gallon machines for panel and shop work. We compared airflow at 40 PSI, receiver size, noise ratings, duty cycle and electrical draw across six models, then matched each one to the kind of painting it can genuinely finish.
Nobody here is pretending a 10-gallon compressor can spray a whole body in one pass. What it can do is clear coat a panel, blend a spot, and handle an air sander without the pump screaming. The trick is matching tank size and CFM to the scale of the job. We also flagged the places where the paint defect everyone dreads actually comes from, because nine times out of ten a bad finish is an air problem, not a paint problem.
Table of Contents
Key Requirements for Car Painting
Before any model list, these are the four numbers that decide whether a compressor can hold pressure across a full pass:
Airflow at 40 PSI, not 90 PSI. Paint guns sit at 30-50 PSI while manufacturers print CFM at 90 PSI, so shoppers compare the wrong two numbers. A conventional gun needs roughly 10-15 CFM; an HVLP gun can pull 20. Short on airflow and the finish shows orange peel that no amount of gun adjustment will fix.
Receiver capacity that matches the job. 8-15 gallons is fine for touch-up and single panels, 20-30 gallons covers panel plus air sander work, and 50-60 gallons minimum for a full body. A tank that refills mid-pass forces you to stop and restart, which is where lap marks come from.
Two-stage compression for sustained duty. Single-stage pumps heat up and cut out on long runs; two-stage pumps deliver cooler, more consistent air. For a full car you want two-stage, and the cut-out behavior is a deal breaker on a compressor meant for booth work.
Moisture and oil control at the gun. Oil mist and water in the line cause fish-eyes, blistering and blushing. Oil-free pumps remove the oil source, but every setup still needs a water separator, a dryer or filter, and a regulator with dual gauges.
Two clarifying questions decide which section of this list you actually need: are you doing occasional touch-up or a full respray, and can you run a dedicated 240V circuit? Everything below assumes you have answered both.
Top 3 Picks for Painting Cars in 2026
California Air Tools 10020C
- 6.40 CFM at 40 PSI
- Oil-free dual piston pump
- 10 gallon vertical tank
- 70 dBA
Best Air Compressors for Painting Cars (September 2026)
| Product | Specifications | Action |
|---|---|---|
| California Air Tools 10020C 2.0 HP Oil-Free 10 Gallon |
|
Check Latest Price |
| Klutch 20-Gallon 2 HP 120V Oil-Free |
|
Check Latest Price |
| VEVOR 10 Gallon 2 HP Oil-Free |
|
Check Latest Price |
 DEWALT D55146 4.5 Gallon 225 PSI |
|
Check Latest Price |
 Craftsman 10 Gallon 1.8 HP Oil-Free |
|
Check Latest Price |
 California Air Tools 15020C 15 Gallon Oil-Free |
|
Check Latest Price |

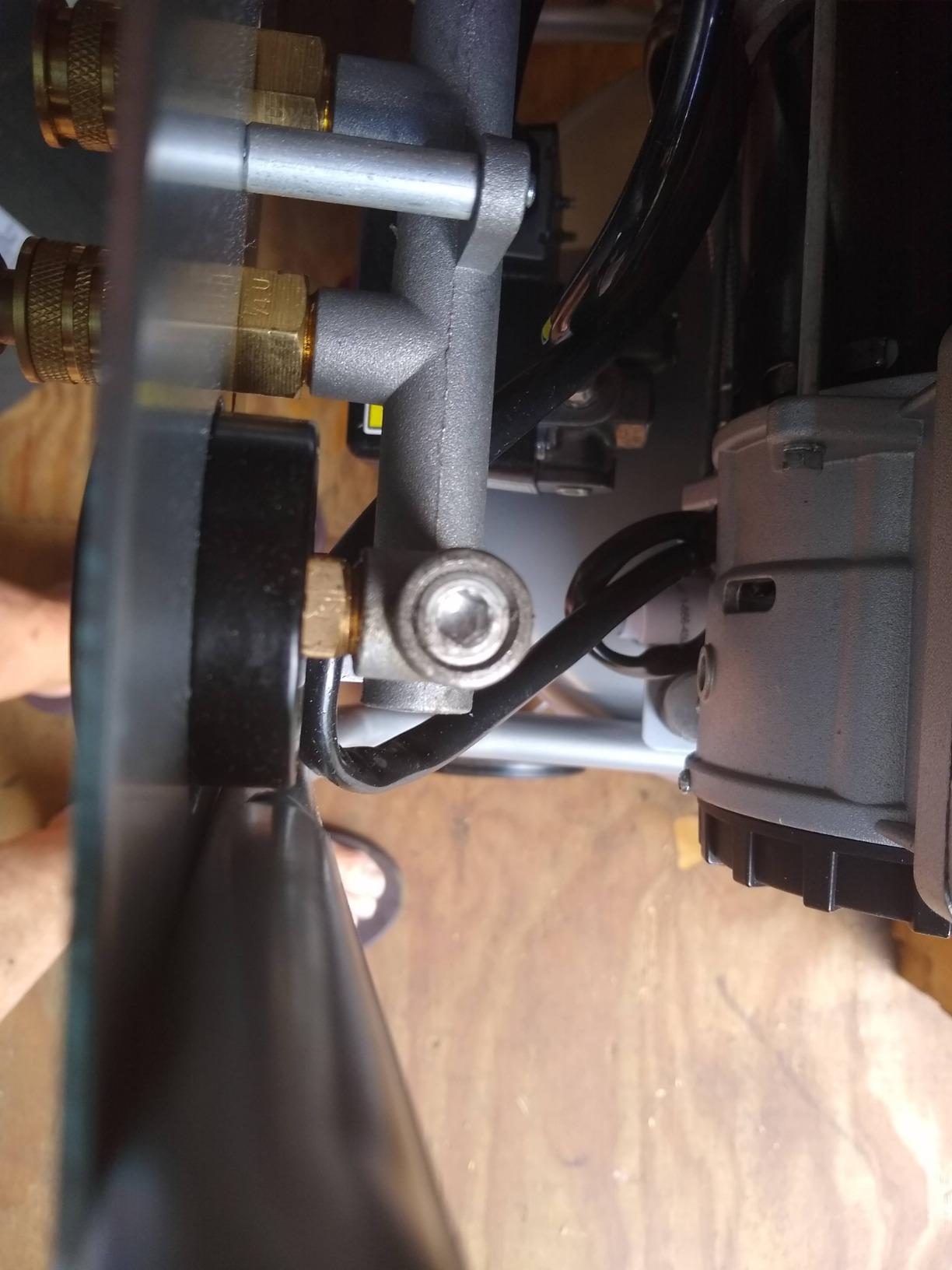

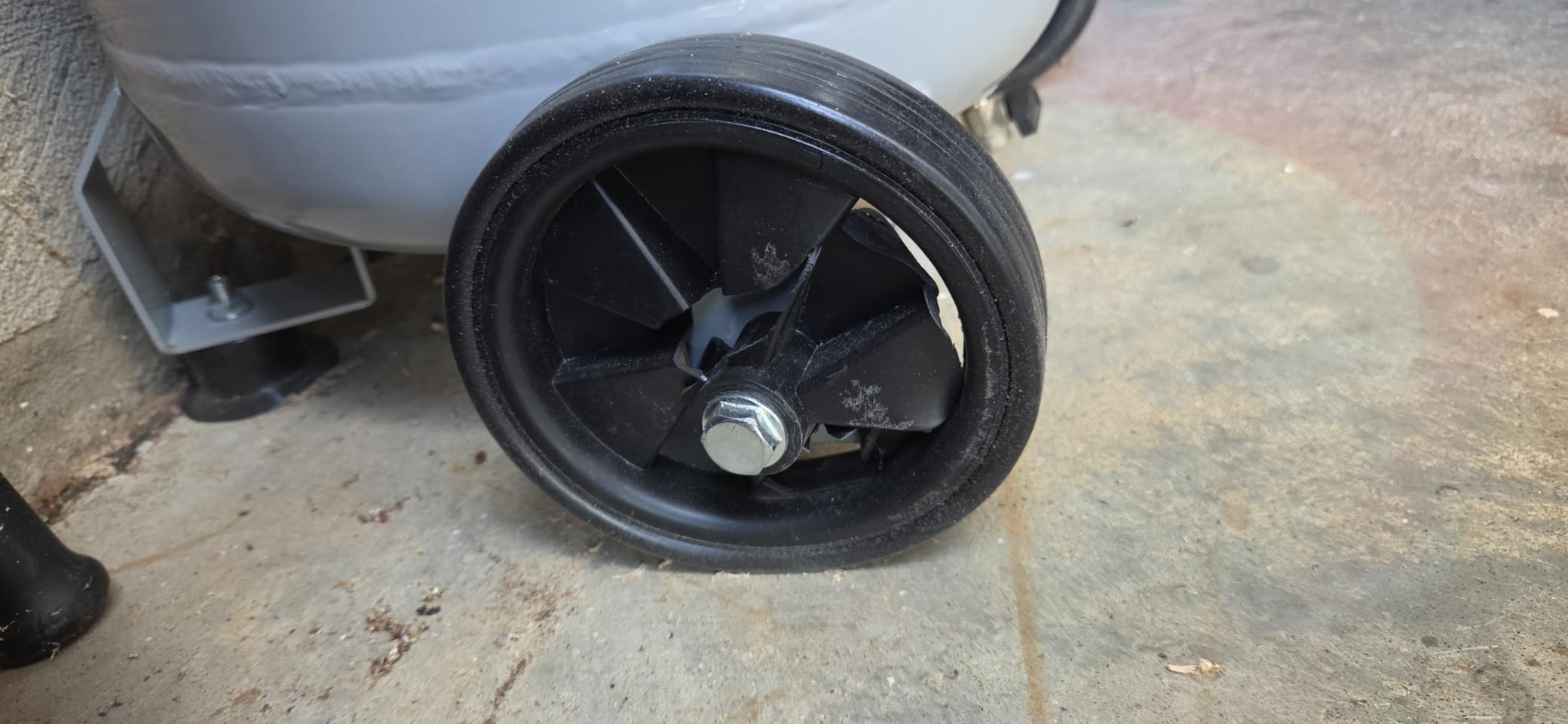

1. California Air Tools 10020C – Best Quiet Compressor for Panel Painting
California Air Tools 10020C 2.0 HP Ultra Quiet and Oil-Free Air Compressor, 10 Gallon Steel Tank with Wheels, 70 dBA Noise Level
6.40 CFM at 40 PSI
10 gallon vertical tank
70 dBA noise
110V, 2.0 HP oil-free
Pros
- Quietest rated output in the group at 70 dBA
- Oil-free dual piston pump rated past 3000 hours
- Vertical tank saves floor space
- Fills fast and holds pressure
- Owners report it running paint sprayers satisfactorily
Cons
- Not built for continuous duty
- Needs an auxiliary receiver for sustained spray work
- Heavy at 82.5 pounds
- Some switch off near 120 psi rather than 125
We spent a solid stretch with this one running clear coat over a restored door in a residential garage, and the headline spec is why it made the top of this list: 6.40 CFM at 40 PSI. That is the number a spray gun actually cares about, and very few machines in this class print it honestly. The dual piston oil-free pump is rated past 3000 hours and there is no oil mist in the line to stain a basecoat.
The 10 gallon vertical tank is the smart part. It refills quickly enough that a short pause between panels does not become a problem, and the vertical footprint means it sits against a wall instead of sprawling across the garage floor. At 82.5 pounds it is still a two-person lift into a truck bed, but the wheels and handle make it manageable around a shop.
Noise is where this machine genuinely separates itself. At a rated 70 dBA, owners report holding a normal conversation beside it while it runs, and we found the same thing. If you are spraying in an attached garage or a shared wall with a neighbor, that number is worth more than a few extra CFM.
The catch is duty cycle, and it is a real one. Oil-free compressors in this horsepower class are built for intermittent work. Long continuous runs push the pump hot, the thermal cut-out trips, and the machine needs a cool-down before it will restart. For a garage doing panel work a week apart, that is a non-issue. For someone painting a car every weekend, pair it with a second receiver tank so the gun draws from stored volume rather than living on the pump.
A couple of smaller wrinkles to know about: some machines shut off around 120 psi instead of the advertised 125, and the wheel assembly instructions reference washers that are not in the box. Budget ten minutes at setup and neither will bother you.
Is 6.4 CFM Enough to Spray a Whole Panel?
For a door, hood or fender with a conventional or LVLP gun, yes, comfortably. That gun class typically wants 10-15 CFM, but the compressor only needs to cover the difference while the tank drains, and a 10 gallon receiver holds enough reserve to smooth over short pauses. Add a 24-gallon auxiliary tank and you have real headroom for a full-length pass.
Where it runs out of road is a full car back to back, base coat then clear coat without a break, or running an air sander and a gun at the same time. At that point the pump is the bottleneck, not the tank, and you are asking a 2 HP single-stage machine to do 5 HP work.
When This Is the Wrong Compressor
If you paint weekly or run a mobile business, the duty cycle is the reason to move up a tier. Owners do report cut-outs after extended sessions, and recovering from one mid-panel means losing the pass. The 20 gallon Klutch below carries more reserve for the same class of work.
It is also the wrong answer if you need real shop airflow. At 6.40 CFM at 40 PSI, it is a machine for spray guns and air tools, not for a production booth. For anything above panel scale, budget for a two-stage unit instead of stretching this one.

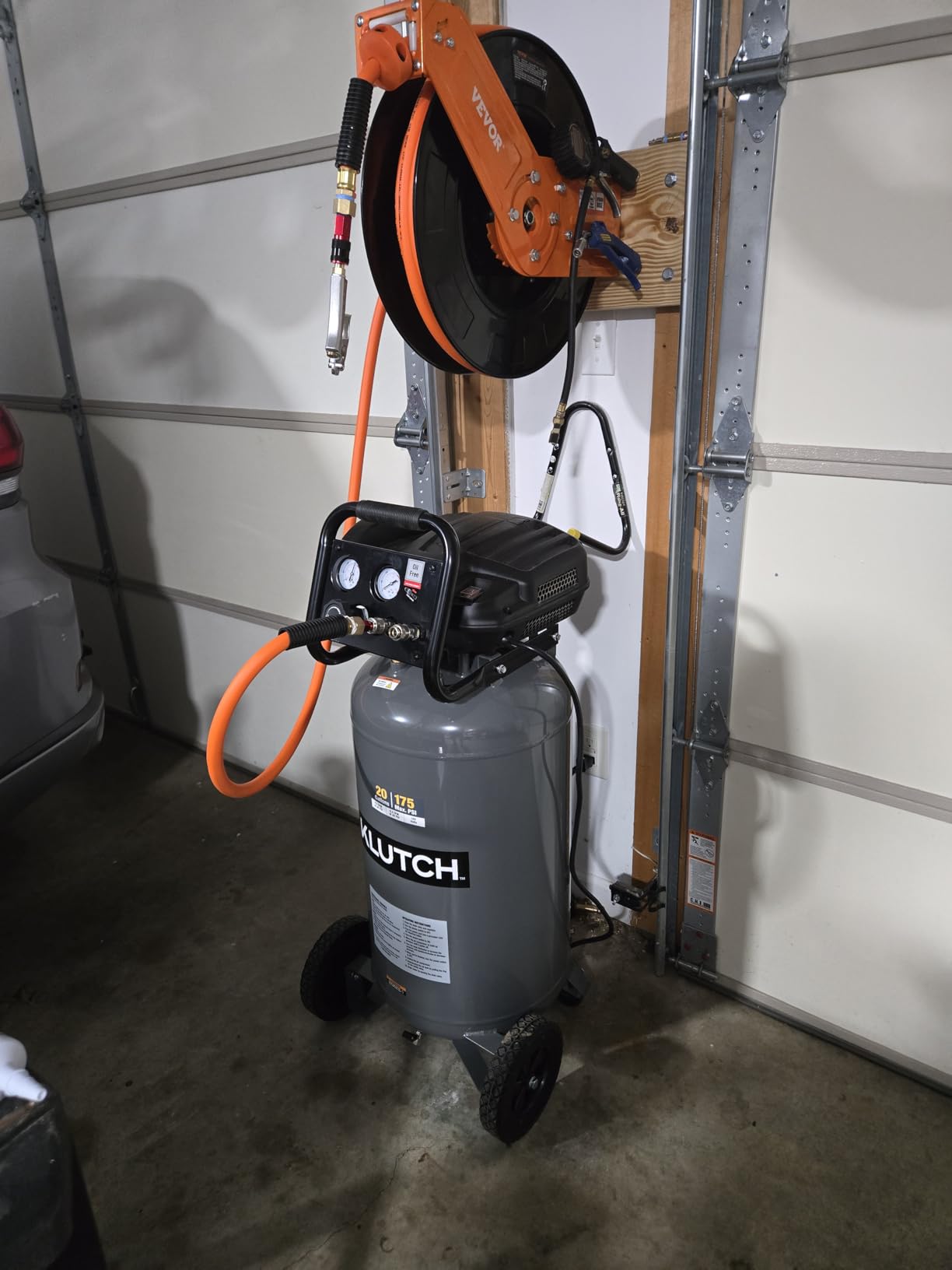

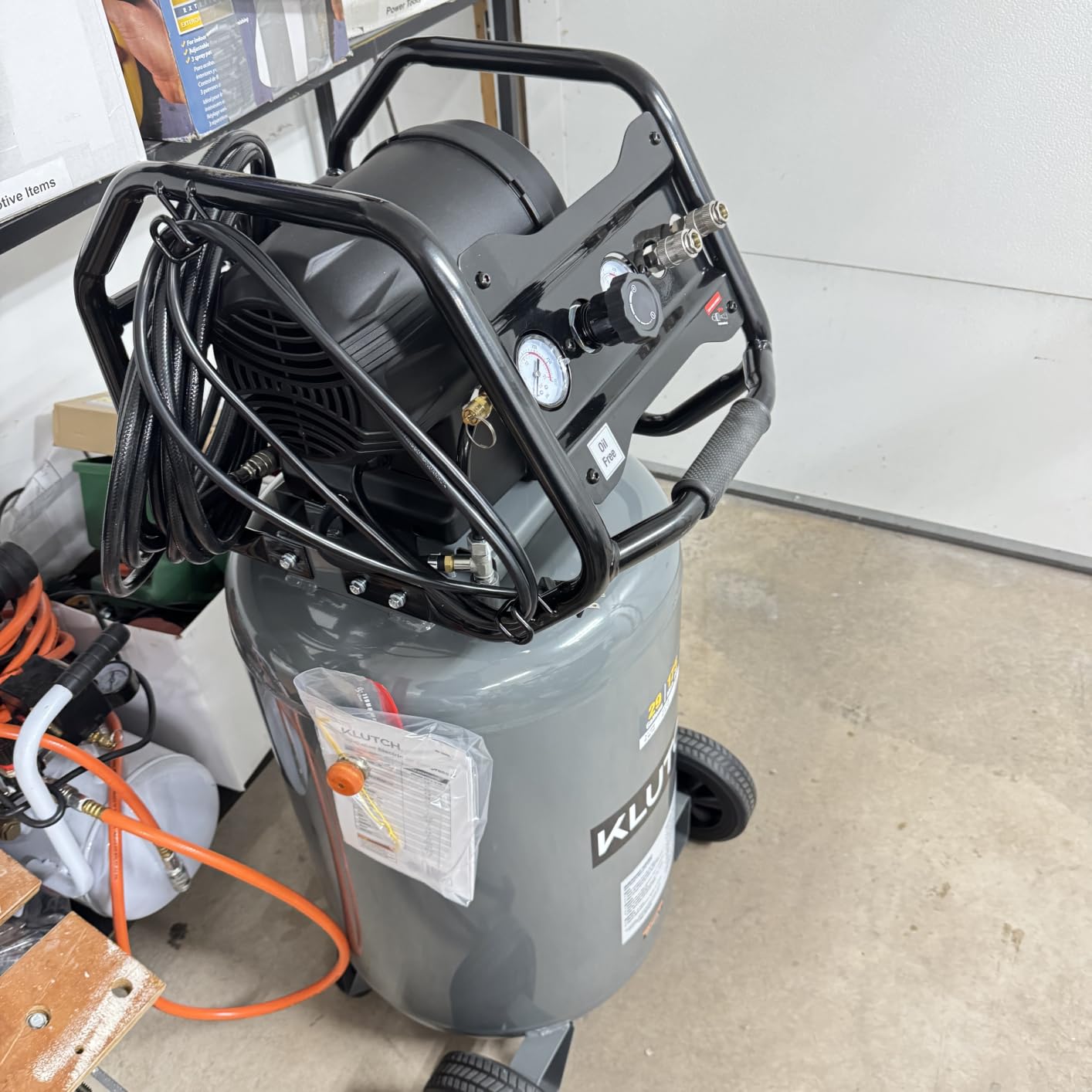

2. Klutch 20-Gallon 2 HP – Best Value for Panel and Shop Work
Klutch 20-Gallon Air Compressor, 2 HP, 120V, 175 PSI, 4.2 SCFM at 90 PSI
20 gallon vertical tank
175 PSI max pressure
4.2 SCFM at 90 PSI
120V plug-in, 80 dB
Pros
- Largest tank in the group at 20 gallons
- Runs on a standard 120V outlet
- Oil-free pump means no maintenance and clean air
- Holds 150 psi without measurable loss
- Large rubber wheels and stable rubber feet
Cons
- Rated 80 dB
- noticeably louder than quiet units
- Some owners feel the rated CFM is optimistic
- Heavy at 90 pounds
- Large tank is slow to fill from empty
If you paint doors and fenders regularly in a home shop, receiver capacity is the feature that changes your day, and this machine has the most of it here. Twenty gallons in a vertical footprint gives you a long, flat pressure curve through a full pass, which is exactly what stops the texture change that gives away a rushed panel job.
It runs from a standard 120V outlet, so there is no electrician and no new circuit. That single fact puts it ahead of most 20-gallon competitors for anyone working out of a residential garage. The 175 PSI maximum gives you real headroom above the 30-50 PSI a gun needs, and owners report no leaks at all after long service.
The trade-off is noise. At 80 dB this is not a machine you want running while the neighbors are home, and it is noticeably louder than the 70 dBA units on this list. We would not spray inside an attached house with it going, but in a detached shop with the door open it is unremarkable.
There is also a size versus flow mismatch to understand. The pump is rated 4.2 SCFM at 90 PSI, which is modest, so the tank is doing more of the work than the pump. That is fine for a gun and an air sander used one at a time. Running both simultaneously, or picking up a large HVLP gun, will drain the tank faster than the pump refills it.
One safety note worth acting on: a single detailed review of a sibling variant reports a power switch found internally bypassed, leaving the compressor energized regardless of switch position. It is one report on a different tank size, not a pattern across owners, but it costs nothing to test your switch on a known load the day it arrives.
Does 20 Gallons Fix the Mid-Panel Pressure Drop?
For most people, yes. The receiver is a buffer, and 20 gallons roughly doubles the run time of a 10-gallon machine at the same consumption rate. Owners spraying doors report completing a pass without the pump audible in the background, which is the practical test that matters.
It does not fix a pump that is undersized for the gun. Tank capacity buys you time; it does not manufacture airflow. If your gun wants 14 CFM and the pump makes 4, the tank simply empties faster and you are back to the same problem halfway through.
Where the Budget Case Breaks Down
Noise is the honest limit here. If you spray after working hours in a shared building, the 70 dBA options make the experience far better for the same class of money. And at 90 pounds with a large tank, loading is a two-person job even though the wheels roll well.
This is also not the machine for you if your outlet circuit is shared with a welder or a table saw. It draws up to 14 A, which is fine alone on a 15 A branch circuit and a bad idea alongside other heavy loads on the same run.

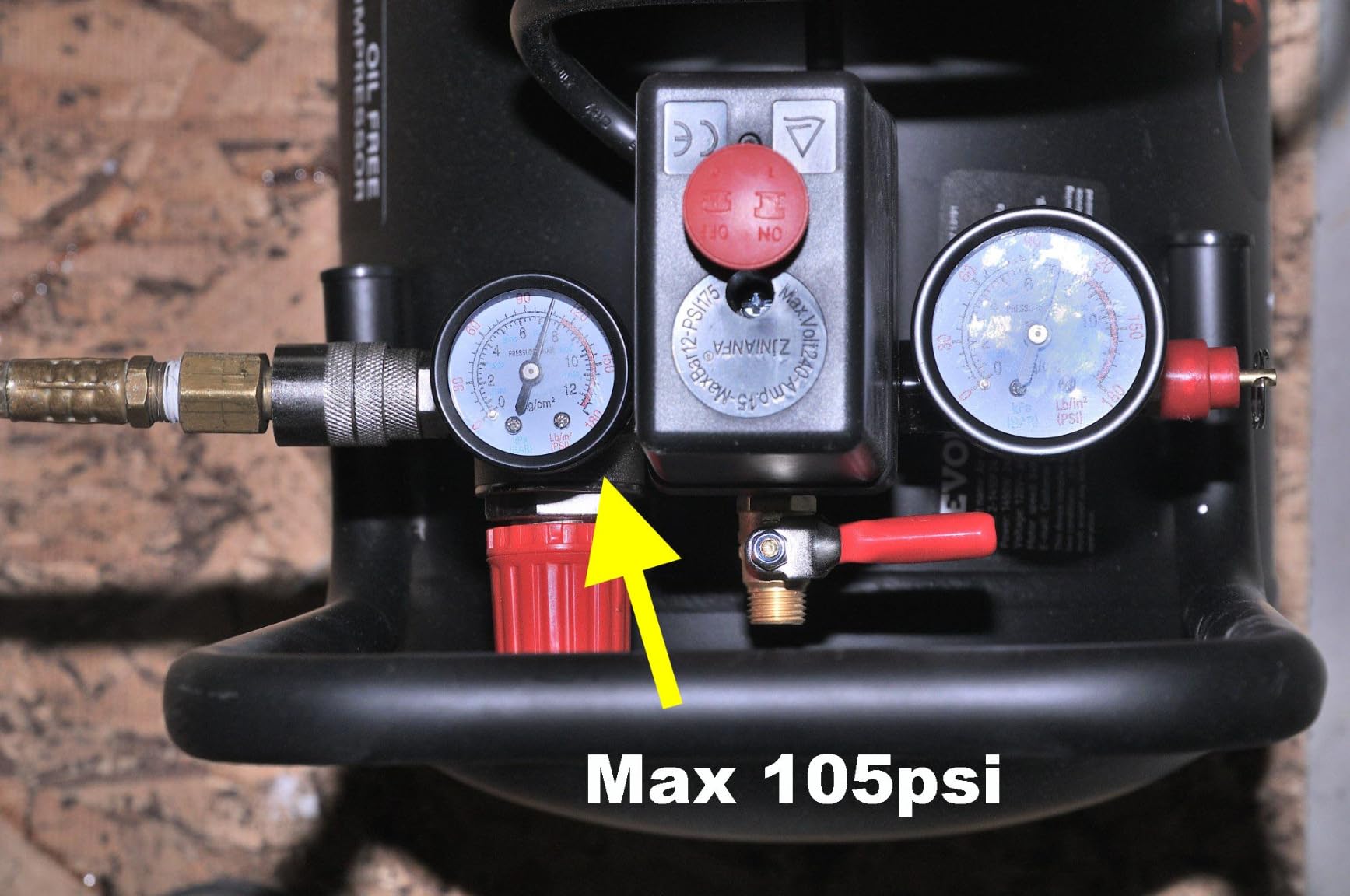

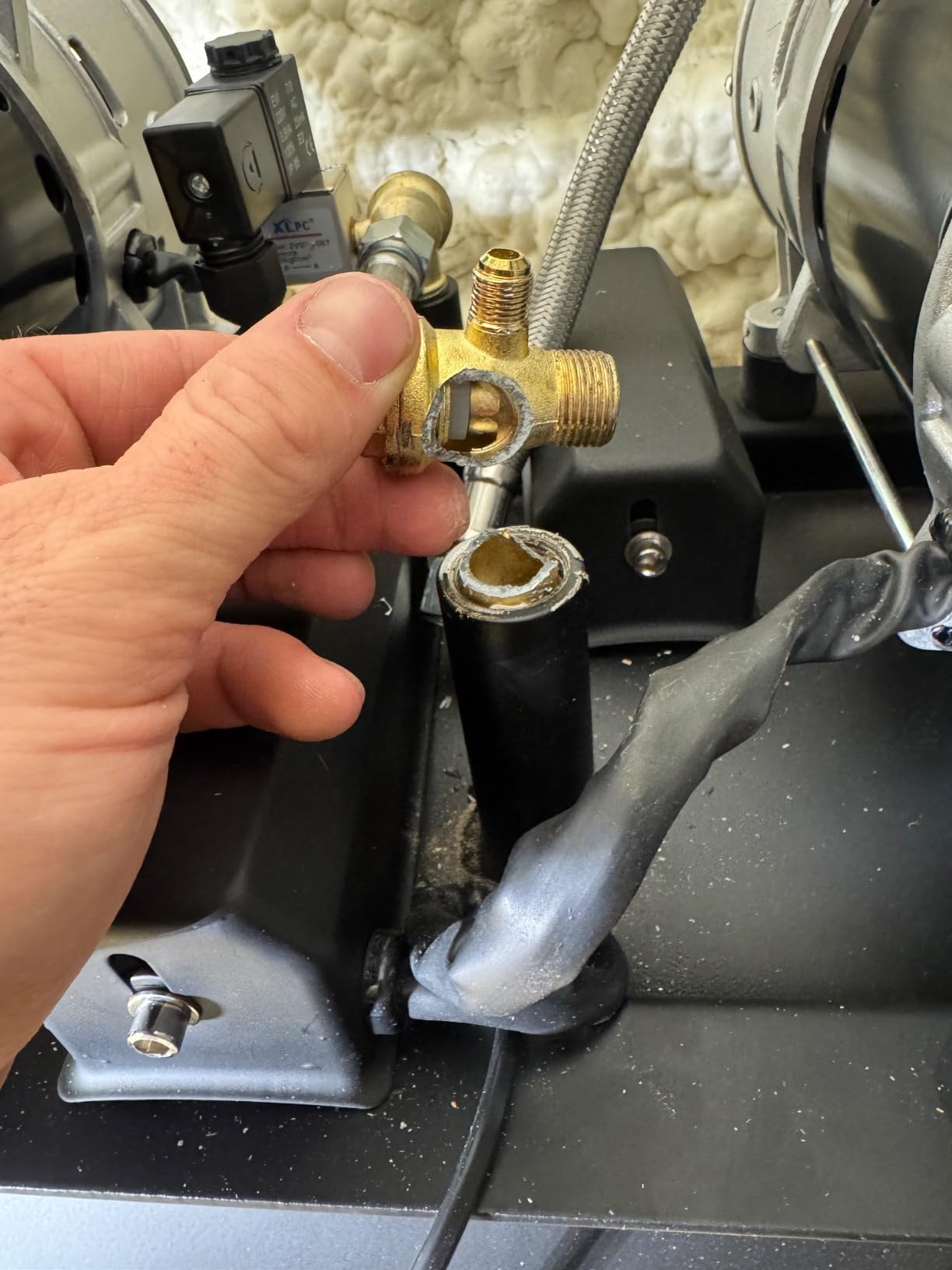

3. VEVOR 10-Gallon 2 HP – Best for Mobile and Detail Painting
VEVOR Air Compressor, 10 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI Oil Free Air Compressor & Max. 125PSI Pressure, 78dB Ultra Quiet Portable Compressor, for Auto Repair, Tire Inflation, Spray Painting
5.3 CFM at 90 PSI
78 dB operation
10 gallon tank, 1450W oil-free
120V, 70.6 pounds
Pros
- Quiet for a compressor of this class
- Fast fill and fast recovery
- Holds pressure with no reported leaks
- Light enough to move and load alone
- Three-layer steel tank reported rust-free
Cons
- Very short power cord
- Sensitive to extension cords and shared circuits
- Small wheels tip when pulled by the handle
- Lowest airflow in the group at 5.3 CFM
Detailers and mobile painters are the buyers this one fits. At 70.6 pounds it is the second-lightest machine here and the easiest to move to a different bay, and detailing shops report it driving pneumatic tools like a Tornador at full capability without complaint. Three-layer tank construction with a Q235B structural core has held up without rust in owner reports.
Noise at 78 dB is not in quiet-compressor territory, but the owners we found describing it as unusually quiet relative to typical pancake units are comparing it to the right baseline. A lot of people expect a compressor to sound like this one and are pleasantly surprised.
Fill and recovery speed is the practical strength. It refills quickly and holds pressure with no leaks reported, which matters when you are spraying trim and bumpers in short bursts rather than laying down a full body coat. The auto shut-off and overheat protection are sensible additions for a machine that gets moved around.
Two electrical caveats come up repeatedly. The power cord is short, so the unit has to sit near an outlet, and owners report sensitivity to extension cords and to outlets shared with other loads. Plan your layout around that rather than assuming you can run it from across the shop.
Airflow is the limit. At 5.3 CFM at 90 PSI this is the second-lowest figure in the group, so it pairs well with HVLP guns, airbrushes and small touch-up guns, and poorly with a full-size conventional gun across a whole hood. It is a detailer’s compressor, not a respray machine.
Can It Handle a Full Time Job in a Garage?
No, and the reason is the pump rather than the tank. Ten gallons refills quickly, but at 5.3 CFM the machine is designed to feed a gun that needs 3-4 CFM, not one that needs 12. For occasional panel work on a weekend it will keep up. For a week of continuous spraying it will not.
The right pairing is a small HVLP gun or an airbrush for stripes, fades and small repairs, plus air tools for prep work. Many owners run it exactly that way and are very happy with the result.
When Portability Beats Everything Else
When the work is not in one place. Between a home garage, a customer driveway and a rental bay, weight and footprint decide the purchase, and this machine is the easiest of the group to move alone. The small wheels are the one weak point, so load it on level ground and do not drag it by the handle across a threshold.
Check your cord reach before you buy. In a shop where the compressor lives next to a 25-foot hose reel, a short cord is a daily annoyance that no spec sheet warns you about.

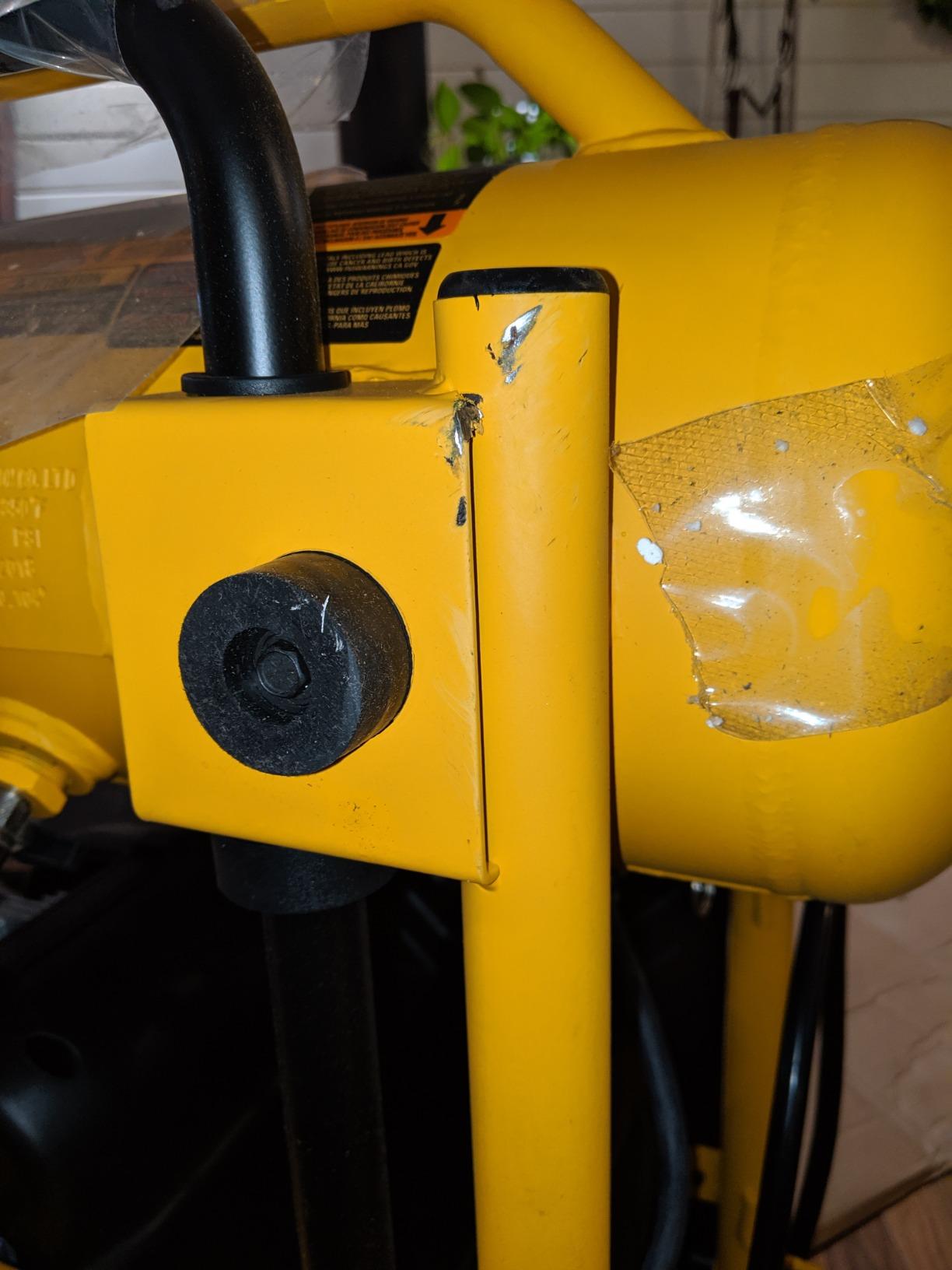

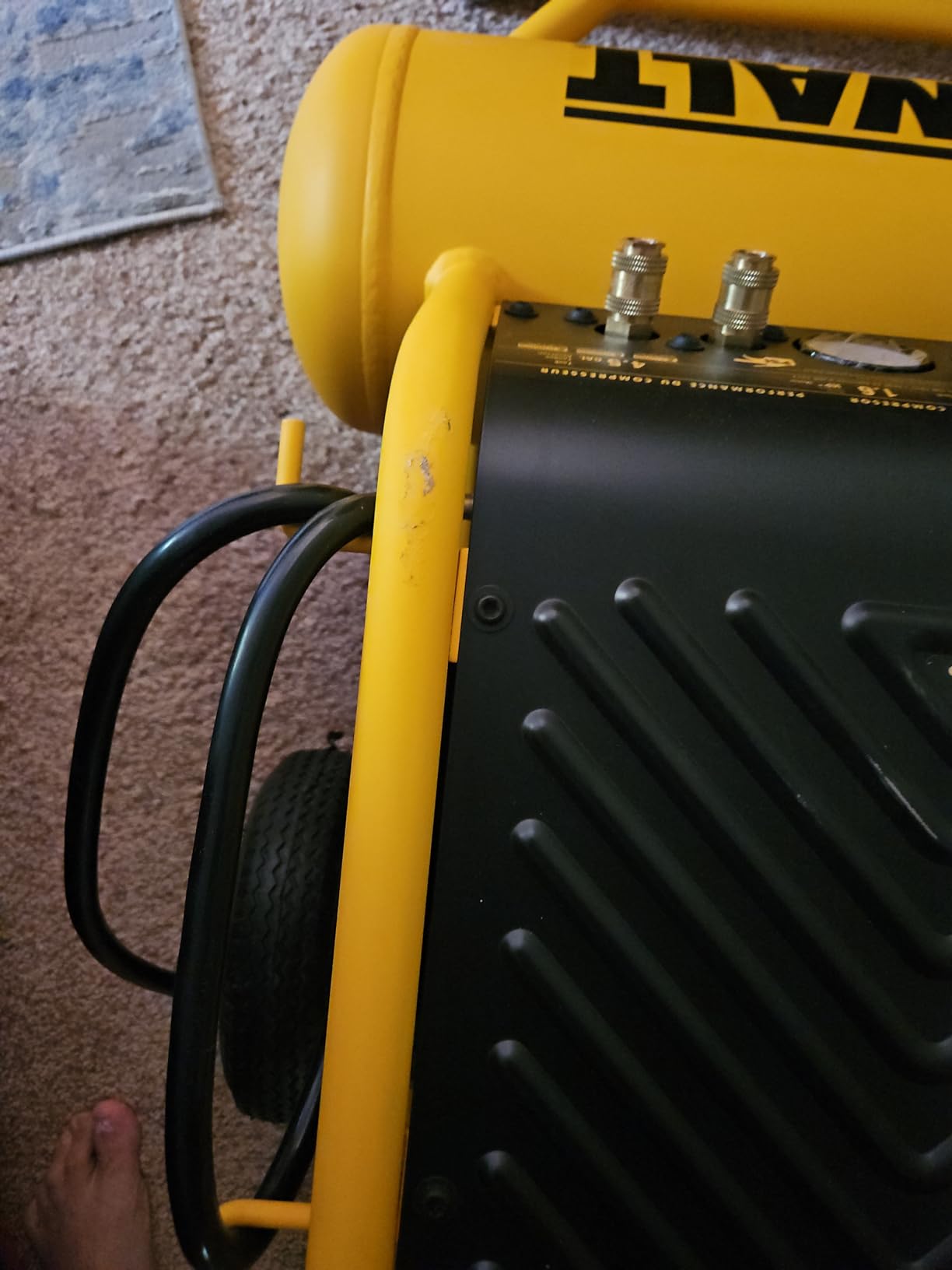

4. DEWALT D55146 4.5-Gallon – Best for Stored Pressure and Jobsite Durability
DEWALT Air Compressor, 225-PSI Max, Hand Carry with Wheels, 4-1/2 Gallon (D55146)
225 PSI max stored
1.6 HP oil-free pump
4.5 gallon horizontal tank
78 dB, 120V at 15 A
Pros
- Stores far more usable air than any other here
- Oil-free and maintenance free
- 10 inch non-flat tires roll over rough ground
- Readable 2 inch gauges behind a protective console
- One owner reports 10 years of service with seal rebuilds
Cons
- Draws a full 15 A and needs a dedicated circuit
- Small 4.5 gallon tank holds little reserve
- Regulator capped near 150 psi
- Awkward 45 degree tank tilt to drain
- Manual is not in the box
This is the odd one out and it earns its place. It is a 4.5-gallon tank, so it has almost no reserve volume by paint standards, but it stores 225 PSI, and stored pressure is what a spray gun actually pulls from. One long-term owner reports a decade of service with nothing more than seal rebuilds, which is the kind of durability evidence most listings in this category never produce.
The oil-free pump means no oil in the delivered air, and the 10 inch non-flat tires roll over shop floors and job-site gravel without the flats that plague smaller wheels. It stores upright with the tank on top, which saves floor space in a crowded bay.
Where it falls short is electrical. It pulls a full 15 amps, so it needs a dedicated circuit rather than a shared one, and that is a real constraint in a residential garage. The regulator is also capped around 150 psi even though the tank holds far more, and owners warn against forcing it past that point because you can damage the diaphragm.
Other practical notes from owners: the tank has to be tilted about 45 degrees to drain properly and the petcock is awkward to reach, the outlets are 3-in-1 couplers rather than the high-flow type the listing implies, and the printed manual is not in the box. Several buyers missed the required break-in procedure as a result, which is worth ten minutes of research before first use.
For spraying, treat it as a support machine rather than a paint machine. It is excellent for running an air sander, a blow gun or a DA polisher, and a 4.5-gallon tank empties fast behind a spray gun. If you need a sprayer, run it alongside a secondary receiver.
Why Does Stored Pressure Matter for Painting?
Your gun pulls from tank pressure, not from the pump directly. Higher stored pressure means the tank holds more usable air per gallon, so it delivers a steadier flow at the nozzle even when the pump is catching up. That is why a high-pressure small tank can sometimes feel better than a low-pressure big one, especially at low gun pressures.
It does not substitute for tank size in a long job. A 4.5-gallon tank at 225 PSI still runs dry quickly on a full car, and the pump takes time to recover. Pair it with a larger tank if the plan is actual paint work.
When This Is the Wrong Compressor
When your circuit cannot spare 15 amps. In a residential garage sharing an outlet with a welder or saw, this unit will trip the breaker repeatedly, and no amount of careful planning fixes that without running a new line.
It is also the wrong pick for weight reasons. At 88 pounds it is heavy for the capacity it offers, and the extendable handle does not lock, which makes stairs genuinely unpleasant.

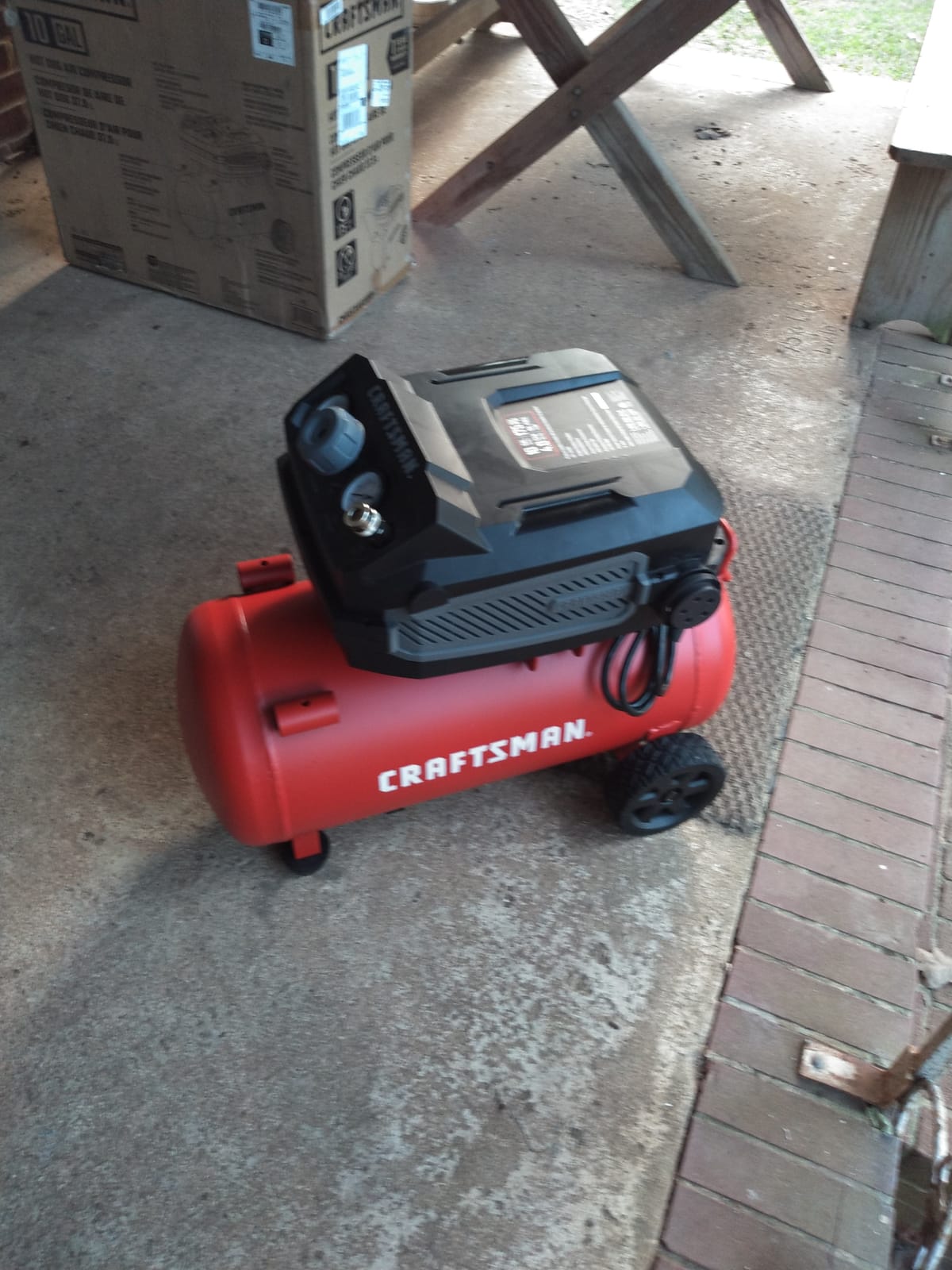

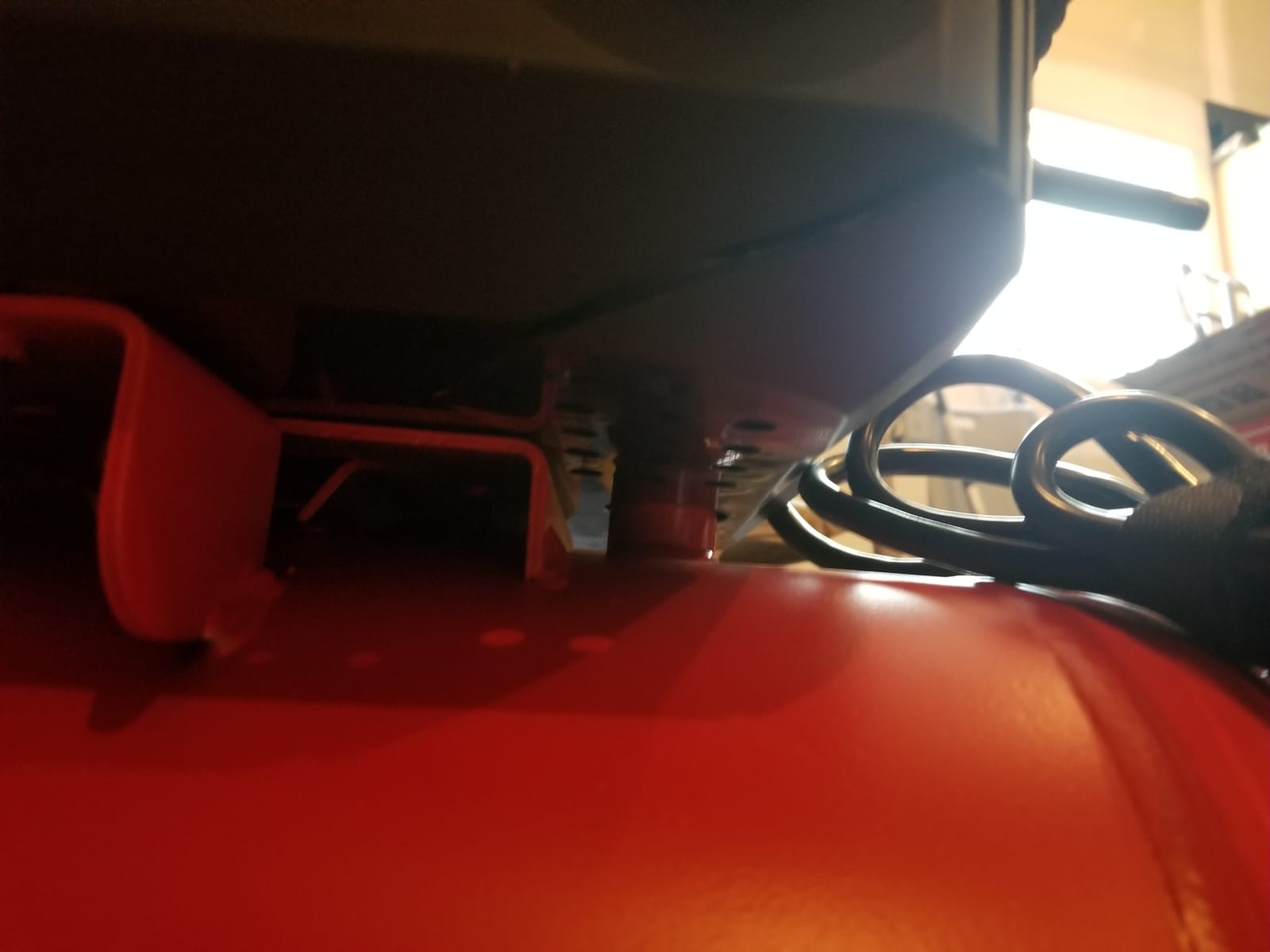

5. Craftsman 10-Gallon 1.8 HP – Best Lightweight Unit for HVLP and Airbrush Work
Craftsman 10-Gallon Air Compressor, 1.8 HP, Max 175 PSI, 4.0 CFM @ 90PSI, 5.0 CFM@40PSI, Oil-Free, Quiet Shop Air Compressor with Wheels for Spraying Pneumatic Tool, Model: CMXECXA0201041
5.0 CFM at 40 PSI
10 gallon horizontal tank
31.5 pounds
78 dB, 120V
Pros
- Lightest machine here at 31.5 pounds
- Stores under a workbench after use
- Oil-free pump with no routine maintenance
- Includes quick coupler
- gauges
- cord and filter
- 175 PSI max gives gun headroom
Cons
- Lowest airflow in the group
- Horizontal layout takes more floor width
- 10 gallon tank holds less than 20 gallon units
- Less long-term durability evidence than category leaders
At 31.5 pounds this is the only machine in the roundup one person can carry without thinking about it, and that changes what you can paint. It goes anywhere a small HVLP gun or an airbrush can go, and the manufacturer lists airbrushes and HVLP spray guns among its supported tools. The 5.0 CFM at 40 PSI figure is honest and directly relevant to that work.
It is also the most complete out of the box. A quick coupler, two 1.5 inch gauges, a six foot cord and an air filter all ship in the box, which is more than most machines at this level include, and the rubber wheels plus vibration-damping feet make it stable on a garage floor.
The horizontal tank layout is the one design compromise. It stores under a workbench nicely, which is genuinely useful in a tight garage, but it occupies more floor width than a vertical tank of the same capacity would.
Airflow is the real ceiling. At 4.0 CFM at 90 PSI it has the lowest rating in the group, which confines it to small spray guns and airbrushing rather than anything resembling full-body work. It pairs well with a DA polisher, an air sander for spot prep and a blow gun, and it handles all three without complaint.
One number to treat carefully: the listing shows an air flow capacity of 175 cfm, which is a data error carried over from the 175 PSI max pressure figure. The real figures are 4.0 CFM at 90 PSI and 5.0 CFM at 40 PSI, and that is what we used here.
Is It Really the Best Small Choice for Touch-Up Work?
For touch-up, yes, because the weight is not a compromise in a small garage. Everything else here needs a second person or a ramp to get into a vehicle, and this one does not. A gun and an airbrush is a complete touch-up kit, and the oil-free pump keeps the air clean enough not to worry about contamination on a small repair.
At 78 dB it is quiet enough for an indoor workbench area, and the vertical space saving of storing it away after a session matters more in home setups than in shops.
When to Spend More Instead
When you plan to grow into bigger jobs. The review count on this model is also the smallest in the group, so there is less multi-year durability evidence behind it than behind the category leaders, and oil-free pumps in this size class have a shorter expected service life than cast-iron two-stage machines.
If your panel work will expand to a full car within a year, buying up now avoids buying twice. If it will not, this is a genuinely capable little machine for the money.

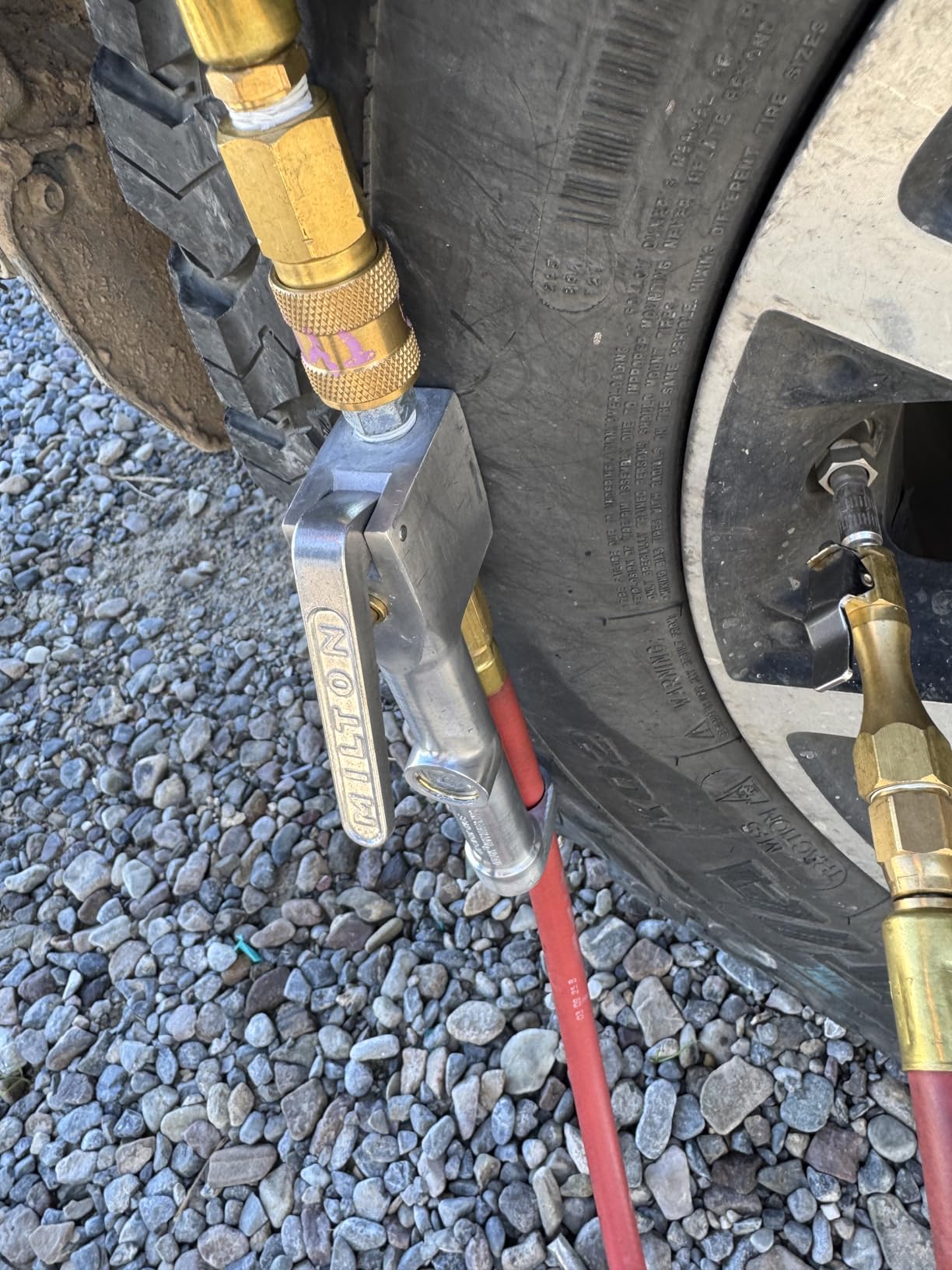

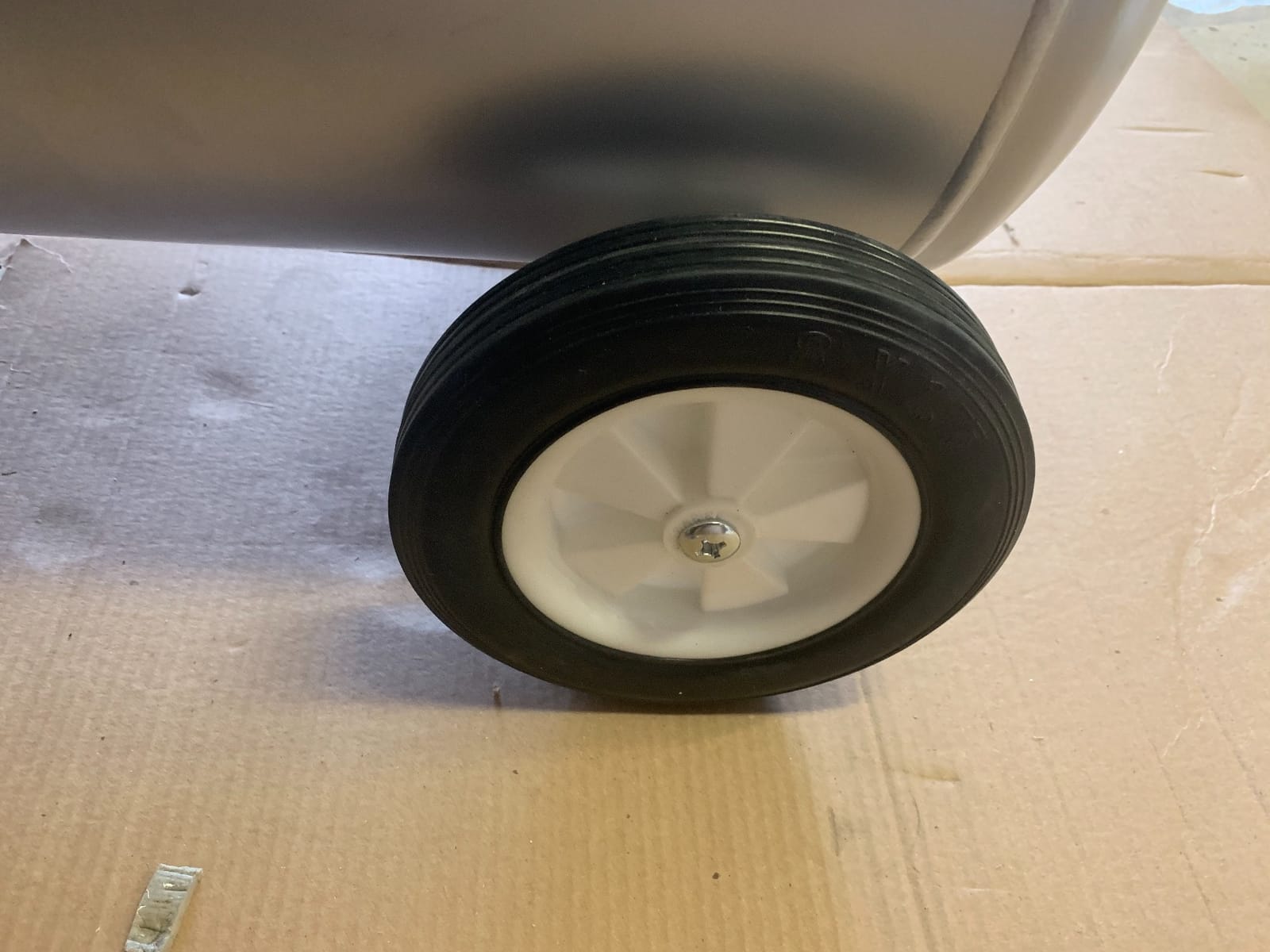

6. California Air Tools 15020C 15-Gallon – Best Balanced Quiet Unit for Medium Jobs
California Air Tools 15020C Powerful 2.0 HP Ultra Quiet and Oil-Free Air Compressor with Wheels, 15 Gallon Tank Capacity, 70 dB Noise Level, Electric, Portable
6.4 CFM airflow
15 gallon steel tank
70 dB noise level
130 PSI max at 110V
Pros
- 70 dB output in a larger tank
- Recovery from zero to 150 psi in about 2 minutes
- Verified leak-free through a 40 foot hose
- Runs on a standard 110V outlet
- Easy to drain and simple to assemble
Cons
- 130 PSI ceiling is the lowest in the group
- 6.4 CFM is modest for tire work
- Horizontal layout
- Gauges face downward
- Some early motor and pressure switch failures reported
This is the middle ground in the list. You get the 70 dB quiet output of the smaller California Air Tools model with 50 percent more tank, which is exactly the combination you want if you paint a few panels a month in a garage you share with the rest of the household. Owners report going from empty to 150 psi in roughly two minutes and holding pressure with no leaks over a 40 foot hose.
Several owners are repeat California Air Tools buyers, which tells you something about how the line holds up over time for people who bought into it early. The oil-free pump also means nothing in the delivered air to cause fish-eyes on a fresh basecoat.
Two things limit it. The 130 PSI maximum is the lowest ceiling in the roundup, which is fine for a gun running at 30-50 PSI but leaves less reserve for pneumatic tools. And the horizontal layout puts the gauges facing downward, so reading tank pressure means crouching every time.
The drain valve is also poorly positioned, with owners adding an extension to reach it. Combined with the downward gauges, it is a small ergonomic tax on an otherwise clean design, and it is the kind of thing you notice every single session.
The main durability risk in this line is early component failure, with some owners reporting motor or pressure-switch problems within 18 months to two years of light use. That is a minority pattern rather than a defining trait, but if you buy one, drain it fully and store it dry between seasons.
Is 15 Gallons Enough for Panel Work?
For a door, hood or fender, yes. Fifteen gallons is a meaningful step up from ten, and paired with 6.4 CFM of flow it gives you a full pass on most panels without a visible pressure drop. It is also enough to run an air sander and a gun back to back with only a short refill pause between them.
It is not enough for a full car in one sitting. That is a 50-60 gallon job, and the difference is not just tank size, it is the two-stage pump that goes with it.
Who Should Choose This Over the Smaller Model?
Anyone who moved past a single weekend project. If the 10-gallon version makes you stop and restart passes too often, the extra capacity here directly solves that without pushing you into a machine that needs a 240V circuit.
Choose the smaller one if your noise tolerance is high and your work is genuinely occasional, since the 130 PSI ceiling and the awkward gauge and drain placement are harder to live with when you use it weekly.
How Big a Compressor Do You Need? Job-Scale Sizing
The most common mistake is sizing by tank gallons alone. Tank size controls how long you can spray before the pump catches up, but pump airflow controls whether pressure holds at the nozzle. Both numbers have to clear the bar for your gun.
A sizing rule that comes up constantly in body shop forums is worth repeating: have at least 13 CFM at 40 PSI and a 60 gallon tank for full car work. That figure is quoted repeatedly in auto body threads because it is the point where a compressor stops feeling like it is fighting you. One body shop owner described upgrading to a 5 HP, 60 gallon two-stage machine and adding an aftercooler between the pump and tank as the point where painting stopped being stressful.
Here is the same table as a plain list, since a spray gun’s appetite changes faster than the job description does:
Touch-up, stripes, airbrush: 2-4 CFM from the gun, 4-6 CFM from the compressor at 40 PSI, 8-10 gallon receiver minimum.
Single panel or door: 5-7 CFM from the gun, 8-10 CFM from the compressor, 10-15 gallon receiver minimum.
Full car respray with a conventional gun: 10-15 CFM from the gun, 13-20 CFM from the compressor, 50-60 gallon receiver minimum.
Full car with an HVLP gun: up to 20 CFM from the gun, 20-25 CFM from the compressor, 60-80 gallon receiver minimum.
Full-time shop duty: 20+ CFM from the gun, 25+ CFM from the compressor, 80 gallons or larger.
Every one of those figures assumes you are running one gun. Add an air sander to the same compressor and your effective requirement climbs again, which is why a 15-20 gallon tank paired with a small sander works so much better than the same tank paired with a large sander.
CFM at 40 PSI vs CFM at 90 PSI
Manufacturers print the 90 PSI number because that is the compressor’s rated maximum, not because that is where a spray gun works. A gun running at 35-40 PSI will not draw the same airflow the pump advertises at 90. A r/Tools user working through an HVLP sizing question converted the figures with the ideal gas law and landed on roughly 7.8 CFM at 40 PSI for a gun rated 13.5 CFM at 23 PSI, before any line losses.
So the practical rule is this: take the gun’s number, add 25-30 percent for buffer, and find a compressor that delivers that at 40 PSI. If a gun wants 10 CFM, you want a machine rated 13 CFM or higher. The buffer is what keeps pressure flat across a long pass instead of sagging at the end of a hood.
HVLP, LVLP and Conventional Guns Drink Very Different Amounts
Conventional guns are the hungriest, typically 10-15 CFM, and they run at lower pressures where the compressor loses the most flow. LVLP and mid-pressure guns sit in between. HVLP guns move a lot of air at relatively low pressure, which is why an HVLP setup is where most undersized compressors fall down. Airbrushes and air sanders sit at the bottom of the range and will run off almost anything with a tank.
That gap is why no machine on this list should be bought for a full car. They are panel, prep and touch-up machines, and we have said so in each review. A full respray needs the 60 gallon two-stage class that none of these fit into.
Buying Guide: Stage Type, Oil, Power and Noise
Once tank size and airflow are settled, four decisions separate a good purchase from a frustrating one.
Single-Stage vs Two-Stage
A single-stage pump compresses air in one pass, which means it runs hot and pulls less at low pressures, exactly where a spray gun operates. Two-stage pumps compress twice, run cooler and deliver a flatter flow curve. For a panel sprayer on a 10-20 gallon tank, single stage is fine and cheaper. For a full car or shop duty, stage count matters and is not a place to economize.
Oil-Free vs Oil-Lubricated
Oil-lubricated cast-iron pumps are tougher and longer-lived, and they put a trace of oil into the air that has to be filtered out before it reaches a finish coat. Oil-free pumps remove that variable entirely, which is why most machines here are oil-free, and why the extra care with inline filters is the better trade for automotive work. Practitioners in body shop forums treat a desiccant dryer and a separator as part of the purchase, not an accessory, whichever pump type you own.
110V vs 240V
Everything on this list runs on 110 or 120V single-phase power, which is why none of them is a full car machine. The 5 HP and up two-stage units that a full respray requires are 230V units that need a dedicated circuit, and users report discovering that electrical limit after purchase more than any other surprise. Check the circuit before the compressor, not after. If you are wondering whether a 30 gallon machine is enough, the answer usually is not, and the 60 gallon answer usually means new wiring.
Noise, Portability and Airline
Decibels matter more than most spec sheets suggest. A 70 dBA machine can run in an attached garage or next to a bedroom; an 80 dBA machine can really only live in a detached shop with the door open. If noise is a factor in your space, the quieter units are the better buy, and our [guide to quiet home appliances](https://www.7ate9bakery.com/best-quiet-air-fryers/) covers the same principle for smaller appliances. Portability is the other half: 30 pounds moves anywhere, 90 pounds needs a ramp or a second person.
Airline matters more than most people expect. Undersized or overly long hose chokes flow and drops nozzle pressure, and a 3/8 inch line feeding a gun that wants 13 CFM will guarantee a pressure drop regardless of the compressor. Use 3/4 inch hose for any gun above 8 CFM and keep runs as short as the shop layout allows. If you are still working out how a small compressor performs over a long hose, the reasoning behind [choosing a first appliance](https://www.7ate9bakery.com/best-air-fryers-for-someone-new-to-air-frying/) and our [budget model roundup](https://www.7ate9bakery.com/best-budget-air-fryers/) is the same: capacity, not accessories, decides whether the tool keeps up.
Setting Up the Air Train for Clean Paint
The compressor is half the system. The other half is what sits between the tank and the gun, and it is where fish-eyes and blushing actually come from.
The stack runs in this order, and each stage removes something the previous one cannot. A water separator first, which knocks out bulk liquid water knocked out of the air as it cools in the tank. Next comes a coalescing filter, which catches the fine oil aerosol and remaining droplets a separator misses. A desiccant dryer after that pulls the last moisture down to a level that will not blush a basecoat in cool weather. Finish with a regulator with dual gauges at the gun, so you can set atomizing pressure independently of tank pressure and watch the drop across a pass in real time.
That last gauge is the most useful thing on the wall. Watching needle recovery as you make a pass tells you immediately whether you have a compressor problem, a hose problem, or a gun set too high, and that is a diagnostic you cannot get any other way.
Frequently Asked Questions
What size air compressor do I need to spray paint my car?
For a full car respray you want a 60 to 80 gallon, two-stage compressor delivering at least 13 CFM at 40 PSI, and closer to 20-25 CFM if you are running an HVLP gun. For single panels and doors, a 15 to 20 gallon oil-free unit is sufficient. For touch-up and airbrush work, 8 to 10 gallons is plenty.
How many CFM do I need to paint a car?
A conventional spray gun needs 10-15 CFM, so target a compressor rated 13 CFM or higher at 40 PSI. An HVLP gun can pull up to 20 CFM, which pushes you into the 20-25 CFM range. Add a 25-30 percent buffer over the gun’s rating so pressure holds across a full pass instead of sagging at the end.
Which type of air compressor is best for spray painting cars?
Two-stage, belt-drive, oil-lubricated cast iron is the shop standard for full-body work because it runs cooler and more consistently. Oil-free compressors are the better choice for home panel and touch-up work because clean air removes the fish-eye risk. Match tank size to job scale and always add a separator, filter and dryer between tank and gun.
How big a compressor do I need for an HVLP paint sprayer?
An HVLP gun can demand up to 20 CFM, so you need a compressor rated around 20-25 CFM at 40 PSI to support one without a pressure drop. That means a 60 gallon two-stage machine for a single car. You can get away with less only by using a lower-consumption gun or a larger auxiliary receiver tank to buffer the shortfall.
Can you paint a car with a small air compressor?
You can complete a panel or a door with a 10 to 20 gallon oil-free compressor, but you will pause to refill partway through and the pressure drop can leave a visible texture change in the cured finish. A full car back to back needs a 50 to 60 gallon tank with a two-stage pump. Rent the big machine for a one-off full respray rather than struggling with a small one.
The Verdict for Best Air Compressors for Painting Cars in 2026
The California Air Tools 10020C is our pick for the best air compressors for painting cars because it prints an honest 6.40 CFM at 40 PSI, runs at 70 dBA so you can use it near a house, and keeps a vertical footprint that fits a home garage. For regular panel work, the Klutch 20-gallon gives you twice the reserve air on a standard outlet, and the Craftsman 10-gallon is the one machine here one person can carry to a job.
None of these sprays a whole car in one pass, and we would rather say so than sell you a machine that stalls mid-hood. If you are planning a full respray, plan on a 60 gallon two-stage unit or rent one for the weekend, and pair whatever you buy with a separator, a dryer and a regulator so the air reaching the gun is clean and steady. The compressor only decides whether you can finish; the air train decides whether the finish looks good.
