A bench vise is a bench-mounted clamping tool with one fixed jaw and one screw-driven movable jaw. It holds metal firmly while you saw, file, grind, drill, bend, weld, or tap it, which frees both hands and stops the workpiece from shifting under power-tool force. (Spelling note: a metalworking clamp is a vise, a gripping tool is a vice.)
Metalworking generates far more force than a hand can resist. An unmoved workpiece means crooked cuts, wandering holes, snapped taps, ruined material, and a real chance of flying steel. A rigid bench vise is the cheapest insurance a shop can buy, and a good one is built to last a lifetime.
Below is our list of the best bench vises for metalworking in 2026, covering twelve models from 4.5 inches to 6-1/2 inches of jaw width. We looked at duty class and material tensile strength, jaw and spindle design, base rigidity and lockdown security, throat depth, replaceable jaw availability, warranty length, and bench weight. All models were verified against current 2026 listings, and every number below comes from the manufacturer specification and owner feedback.
If you also work at a bench outside the shop, our guides to the [8 best bench scrapers for portioning dough](https://www.7ate9bakery.com/best-bench-scrapers-for-portioning-dough/) and the [8 best bench scrapers for handling wet dough](https://www.7ate9bakery.com/best-bench-scrapers-for-handling-wet-dough/) cover the light end of bench work.
Table of Contents
Top 3 Picks for Best Bench Vises for Metalworking (September 2026)
The Forward DT08125A is the strongest all-round pick here, pairing 60,000 PSI ductile iron with three replaceable jaw sets and a rotating head at 5 inches wide. The VEVOR 6-inch gets the most capability per dollar, with 4,496 lb of clamping force and magnetic soft jaw pads included. The Wilton 11106 is the dependable pick for automotive and general repair work, backed by a lifetime warranty.
Forward DT08125A 5 Inch Bench Vise
- 60000 PSI ductile iron
- 5500 lb clamping force
- Microgroove pipe and V-jaws
- 360-degree rotating head
VEVOR 6 Inch Multi-Purpose Vise
- 4496 lb clamping force
- 3.5 in throat depth
- Magnetic soft jaw pads
- Dual-screw swivel base
Wilton 11106 6 Inch Bench Vise
- Lifetime warranty
- Replaceable serrated jaw inserts
- Large anvil surface
- Double lockdown swivel
All 12 Bench Vises at a Glance in 2026
Every vise below bolts to a bench the same way, but they differ sharply on material, throat depth, and pipe capacity. Scan the table first, then read the full review for the two or three that fit your bench and your work.
| Product | Specifications | Action |
|---|---|---|
| Forward DT08125A 5 Inch Bench Vise |
|
Check Latest Price |
| VEVOR 6 Inch Multi-Purpose Vise |
|
Check Latest Price |
| Wilton 11106 6 Inch Bench Vise |
|
Check Latest Price |
 Forward CR50A 5.5 Inch Bench Vise |
|
Check Latest Price |
 Yost 445 Combination Bench and Pipe Vise |
|
Check Latest Price |
 Yost 760-DI 6 Inch Multi-Jaw Vise |
|
Check Latest Price |
 IRWIN 5 Inch Multi-Purpose Vise |
|
Check Latest Price |

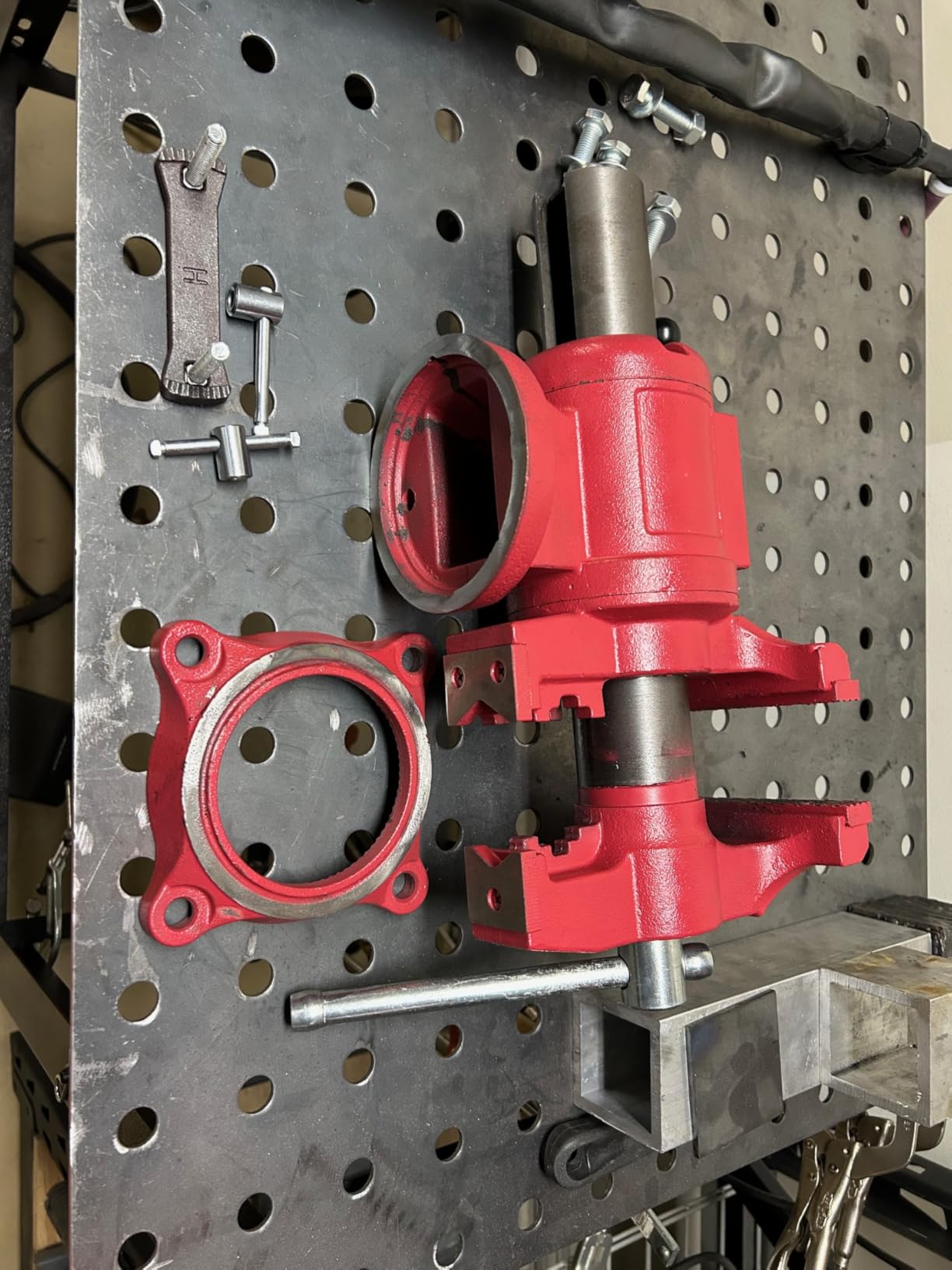

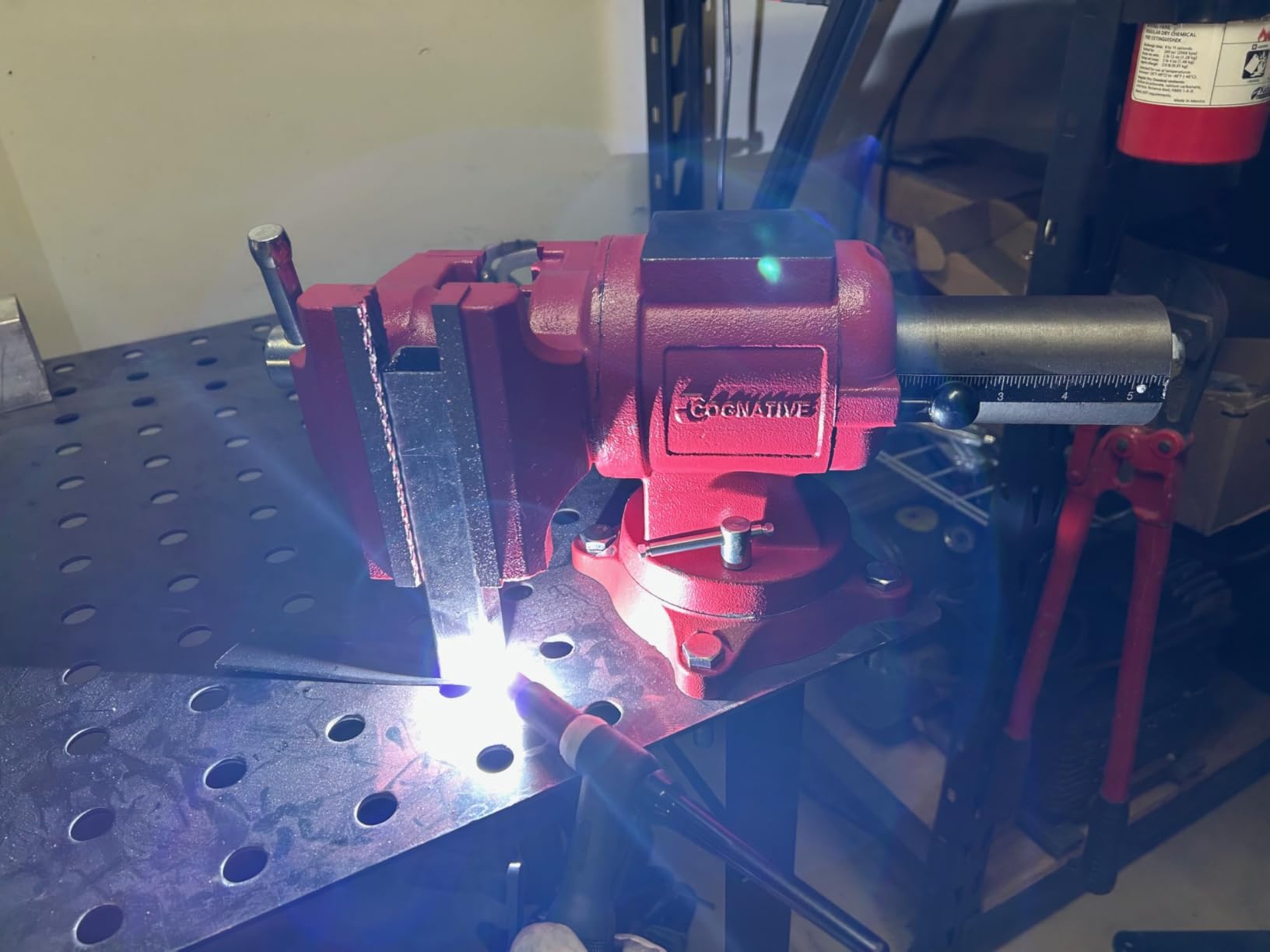

 COGNATIVE 6 Inch 9,900 lb Bench Vise |
|
Check Latest Price |

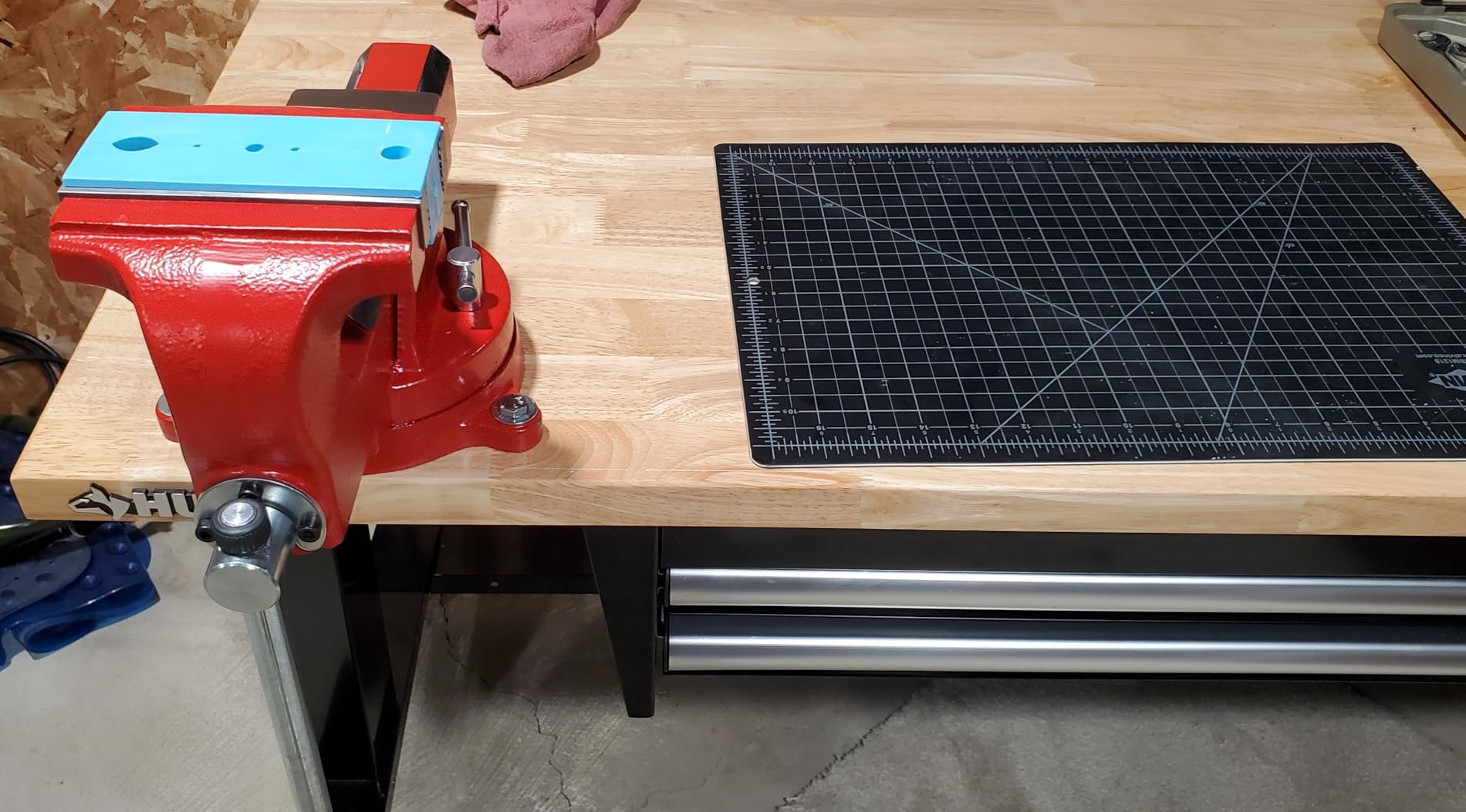

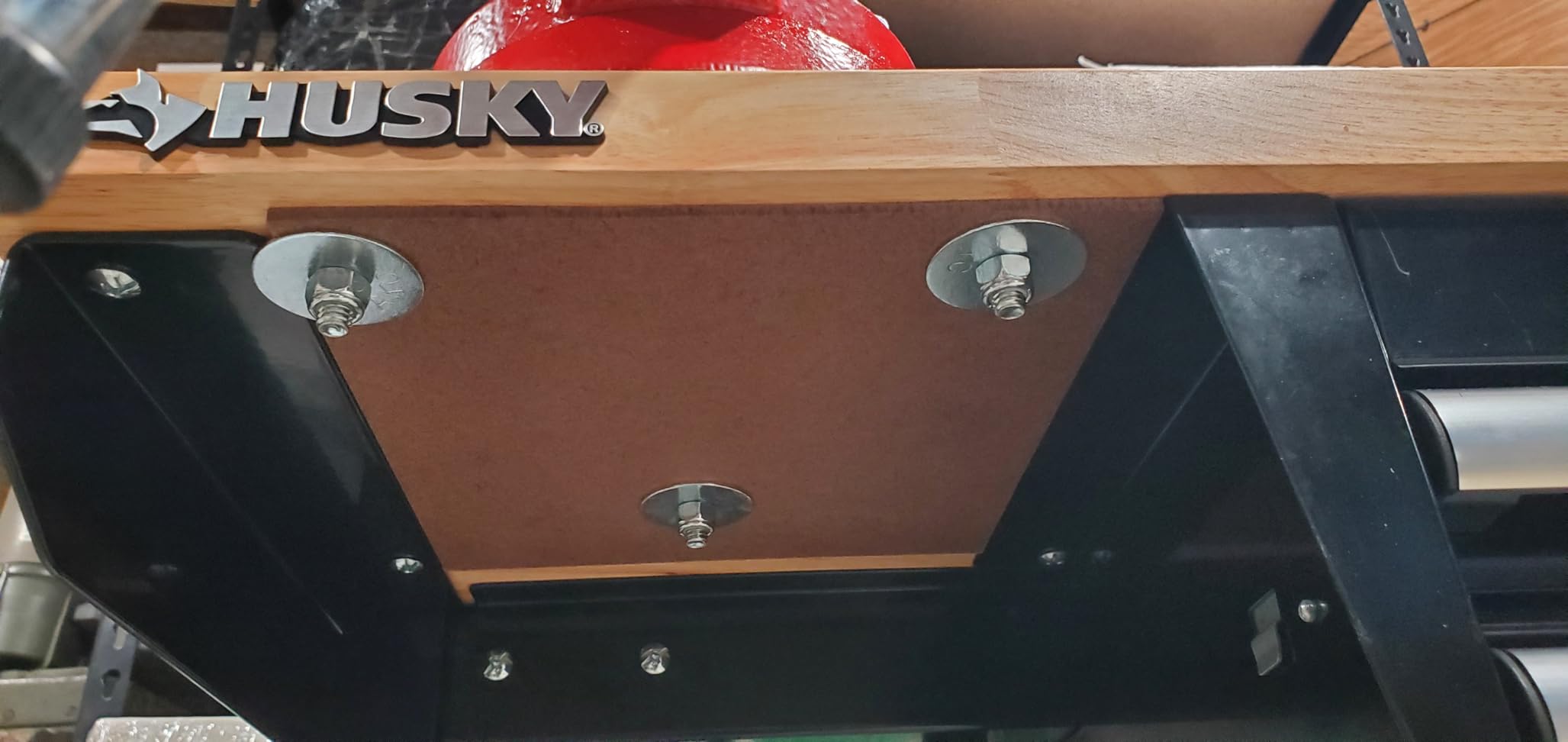

 Yost ADI-6 6 Inch Heavy Duty Vise |
|
Check Latest Price |

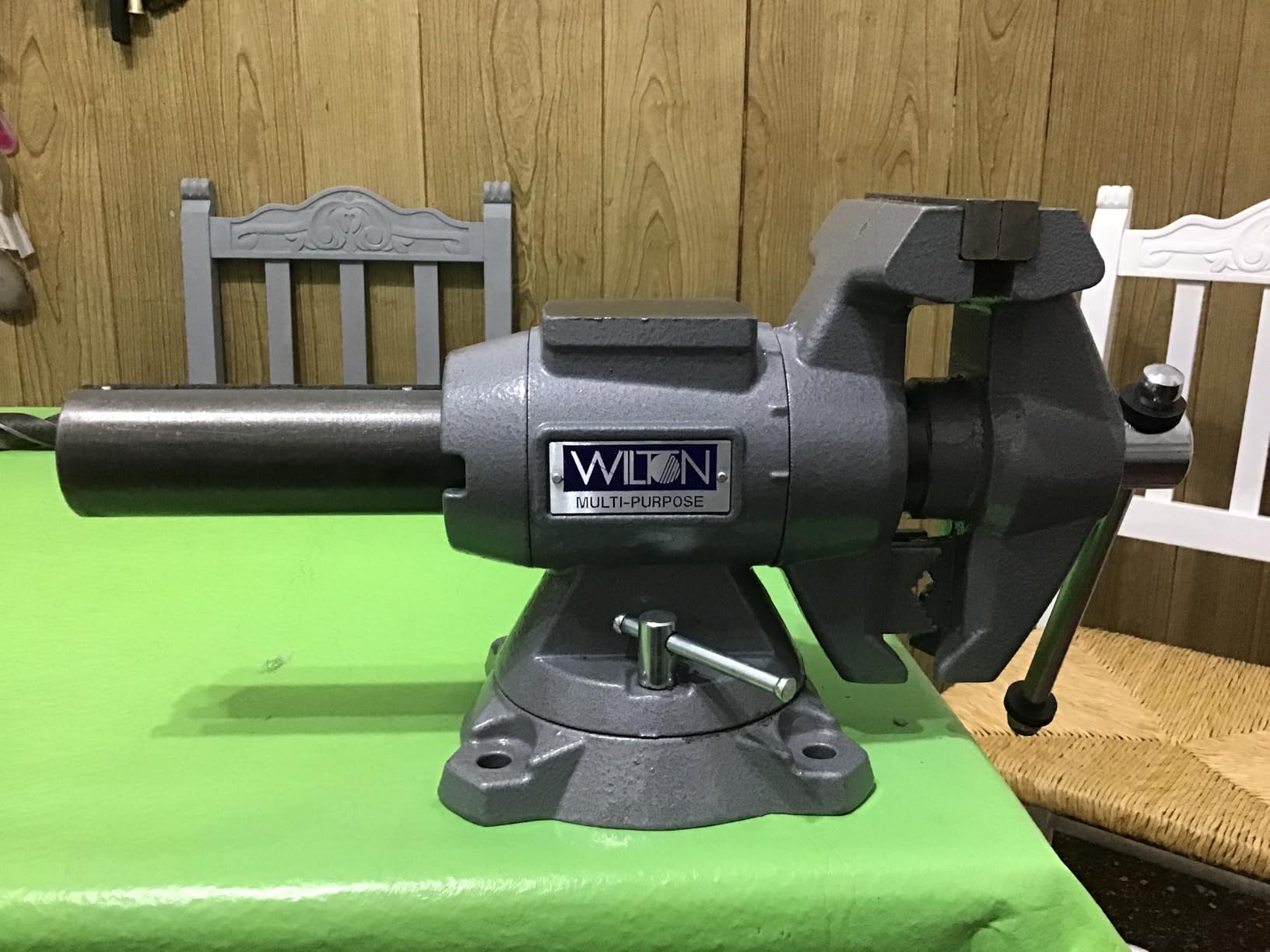

 Wilton 650P 6-1/2 Inch Multi-Purpose Vise |
|
Check Latest Price |

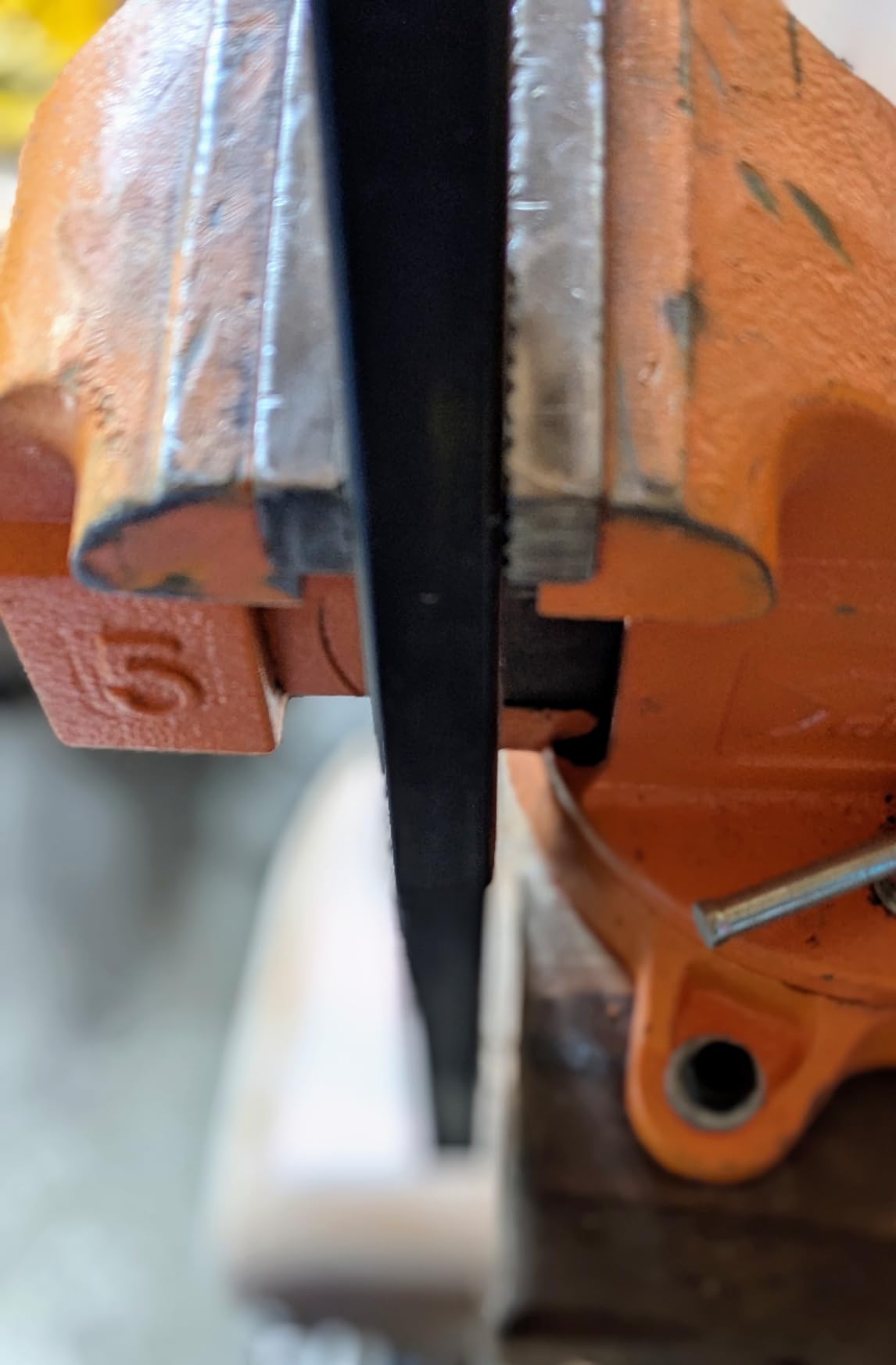

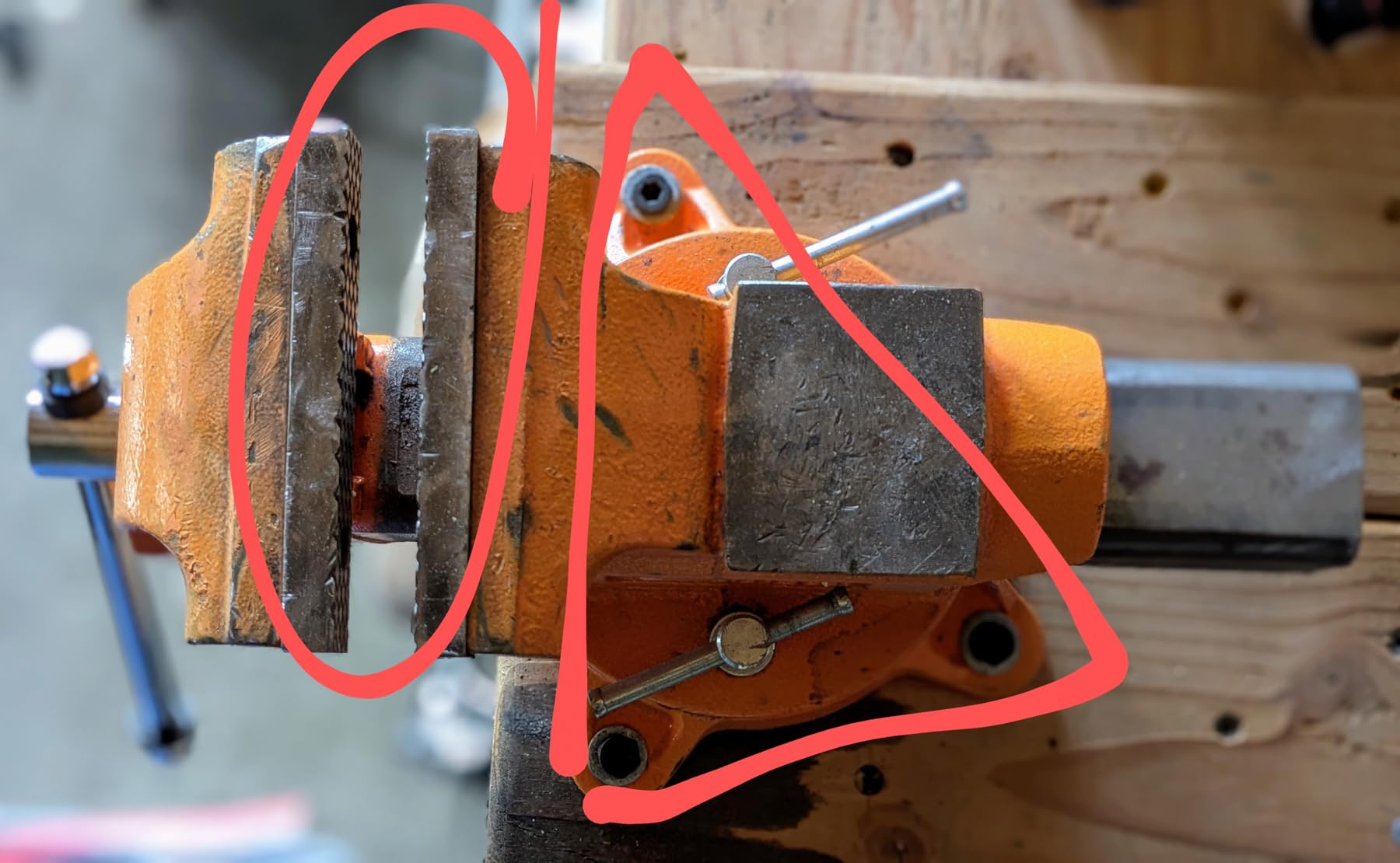

 Forward 30505 5 Inch Bench Vise |
|
Check Latest Price |

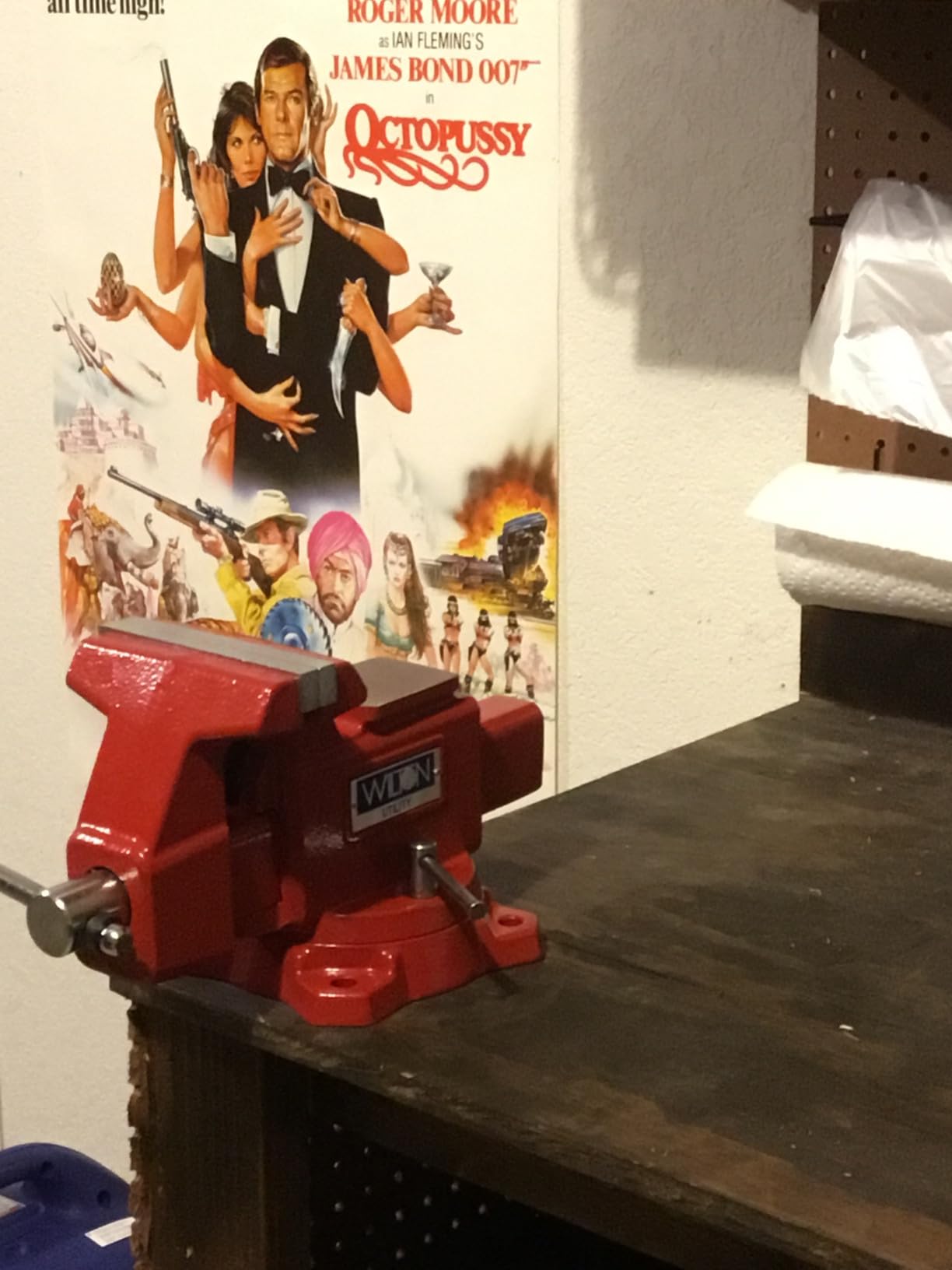

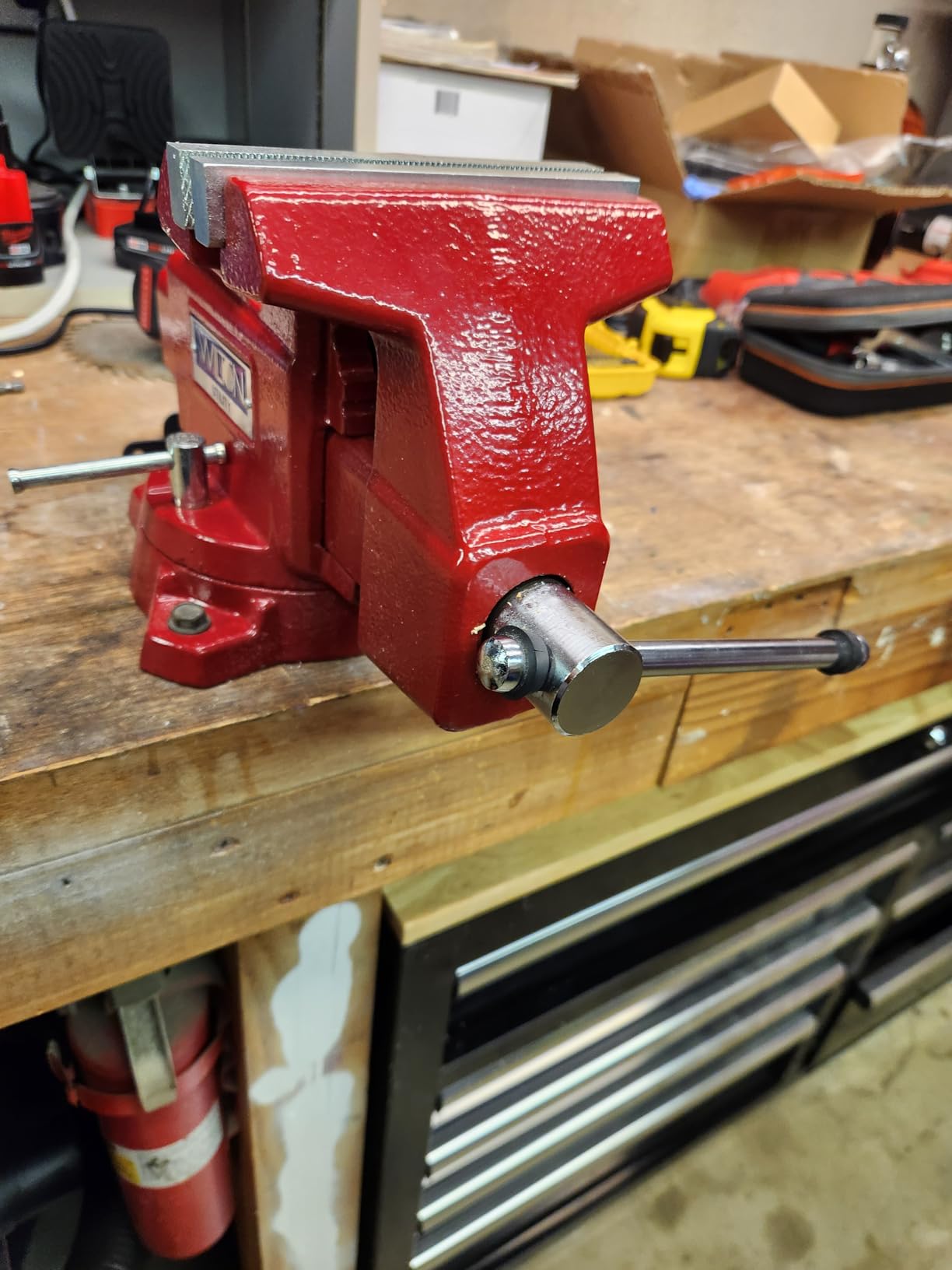

 Wilton 675U 5-1/2 Inch Utility Vise |
|
Check Latest Price |

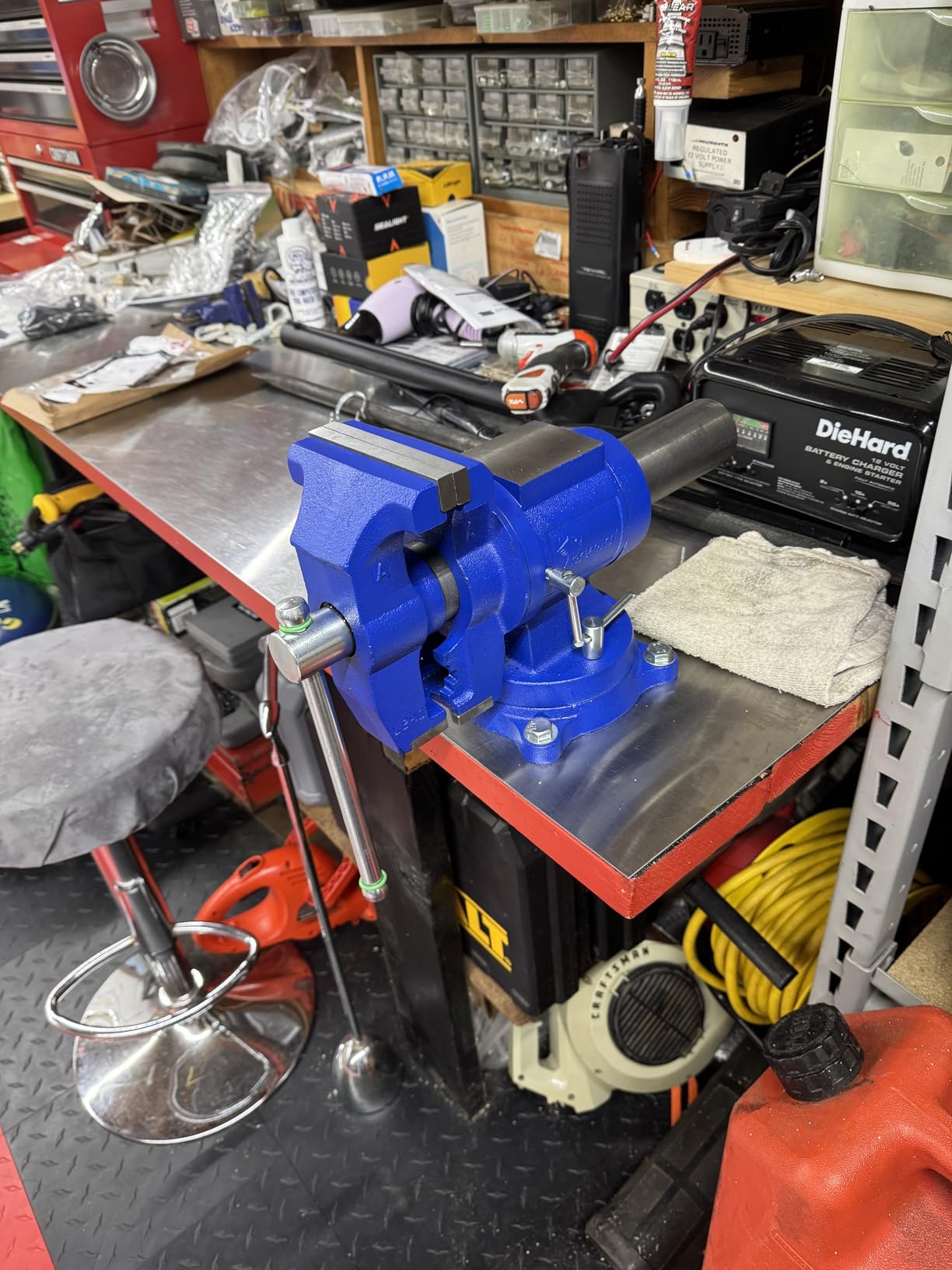

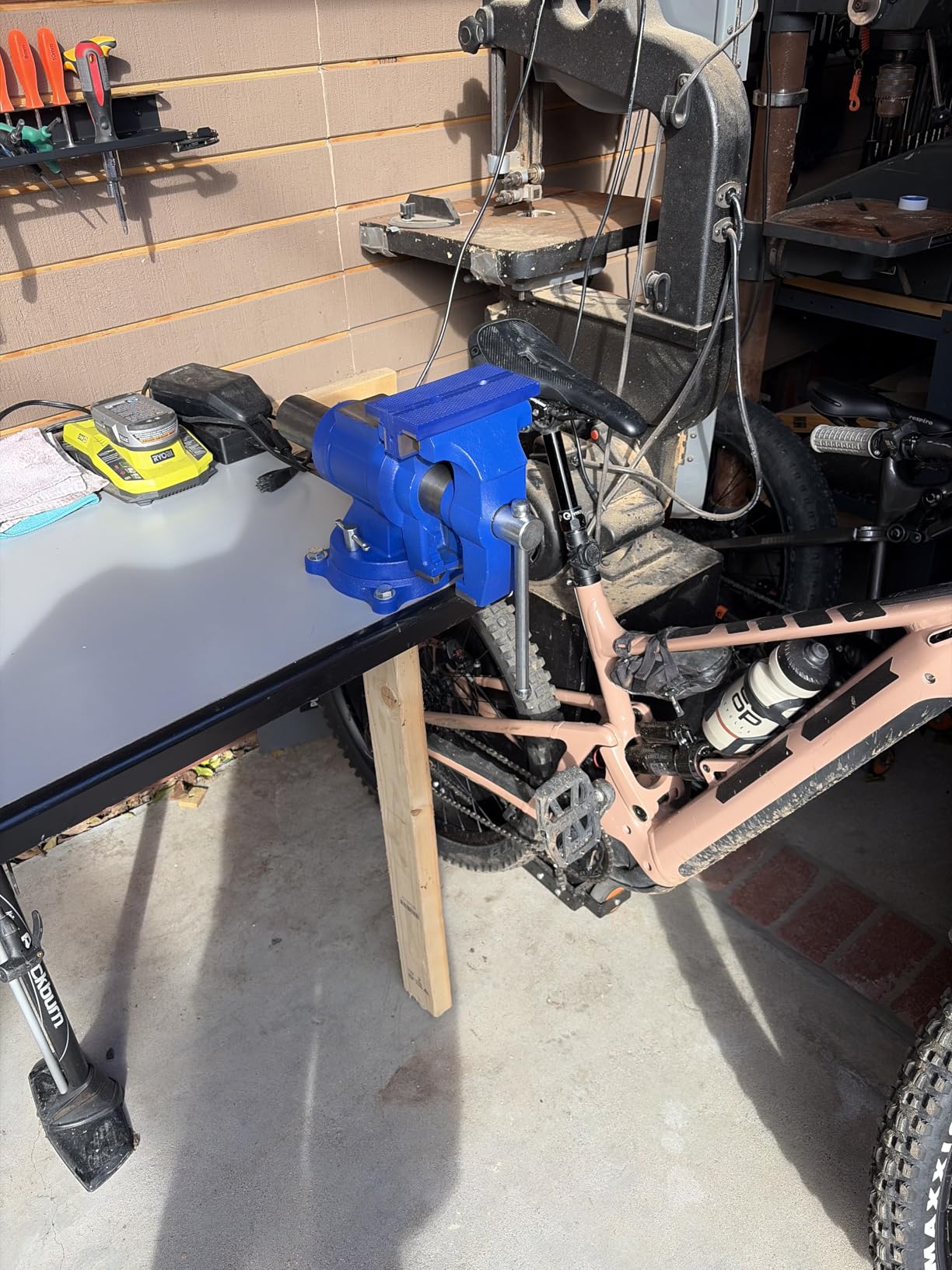

1. Forward DT08125A 5 Inch Heavy Duty Bench Vise: The Best All-Round Bench Vise
Forward DT08125A 5 Inch Heavy Duty Bench Vise with 360°Swivel Base and Head
5 in jaw and 5 in opening
60,000 PSI ductile iron
5,500 lb (24 kN) force
33 lbs with rotating head
Pros
- Three replaceable jaw sets including pipe and V-jaws
- 360-degree rotating head plus swivel base
- Large reinforced anvil
- Highest rating in the group at 4.8 stars across 1950 reviews
Cons
- 33 lb body is heavy for a light benchtop
- 5500 lb clamping force trails the larger 6-inch models
- 2.6 in throat is shallow for tall material
The Forward DT08125A is the vise I keep coming back to. It is a 5-inch vise, which is the sweet spot for most home metalworkers, and it arrives with more hardware than you would expect at this size. Three sets of machined jaws ship in the box: microgroove replaceable top jaws, built-in pipe jaws covering 3/5 inch to 2-1/2 inch, and a set of V-jaws.
What sold me was the rotating head. The vise head turns a full 360 degrees on top of a swivel base, so you can bring a vertical pipe or a long bar into the jaws without shimming the whole vise around. Owners consistently single this out, along with how solid the body feels after months of shop use.
The clamping force is rated at 5,500 lb (24 kN), which is plenty for cutting, filing, drilling, tapping, and light forming. It is not the strongest number in this roundup, and if you routinely bend heavy plate or press bearings, you would want more.
Technically this is a 60,000 PSI ductile iron casting for both the stationary and floating body, which puts it a full tier above the 30,000 PSI gray cast iron used in the classic general-purpose vises. Ductile iron carries far more ductility, so the casting absorbs shock instead of cracking when you tighten hard or knock the vise with a hammer.
The jaw width is 5 inches, the maximum opening is 5 inches, and the throat depth is 67mm (2.6 inches). That throat is the trade-off. It is shallow compared with the 3.1 inch and 3.5 inch throats in this group, so tall upright material sits further from the spindle line and takes more effort to secure.
The large reinforced anvil is intended for grinding, cutting, and tapping light work. It is not a substitute for a proper anvil on hammering-heavy work, but it handles flattening small ends and light punch work without complaint.
At 33 lbs this is a two-person lift in some cases, and a home bench built from thin particleboard will not hold it well. Bolt it into a solid top or a steel stand before you load it up.
Who the Forward DT08125A suits best
This is the vise for a home shop that does mixed work: a bit of welding prep, tapping and drilling, occasional pipe fitting, and general clamping. If you have been thinking about whether 4 inches or 6 inches is right, the 5-inch format with three jaw sets answers both sides of that question in one tool.
It is also a strong first serious vise. The 60,000 PSI body, the replaceable jaws, and the rotating head are all features you would eventually want anyway.
Where the Forward DT08125A falls short
Skip it if you bend thick plate or press large bearings regularly, because 5,500 lb of clamping force and a 2.6 inch throat are not the tools for that job. The 33 lb weight is also a real constraint on a lightweight hobby bench.
If your work is almost entirely round bar held vertically, the V-jaws and the rotating head are exactly right, and this handles it well.

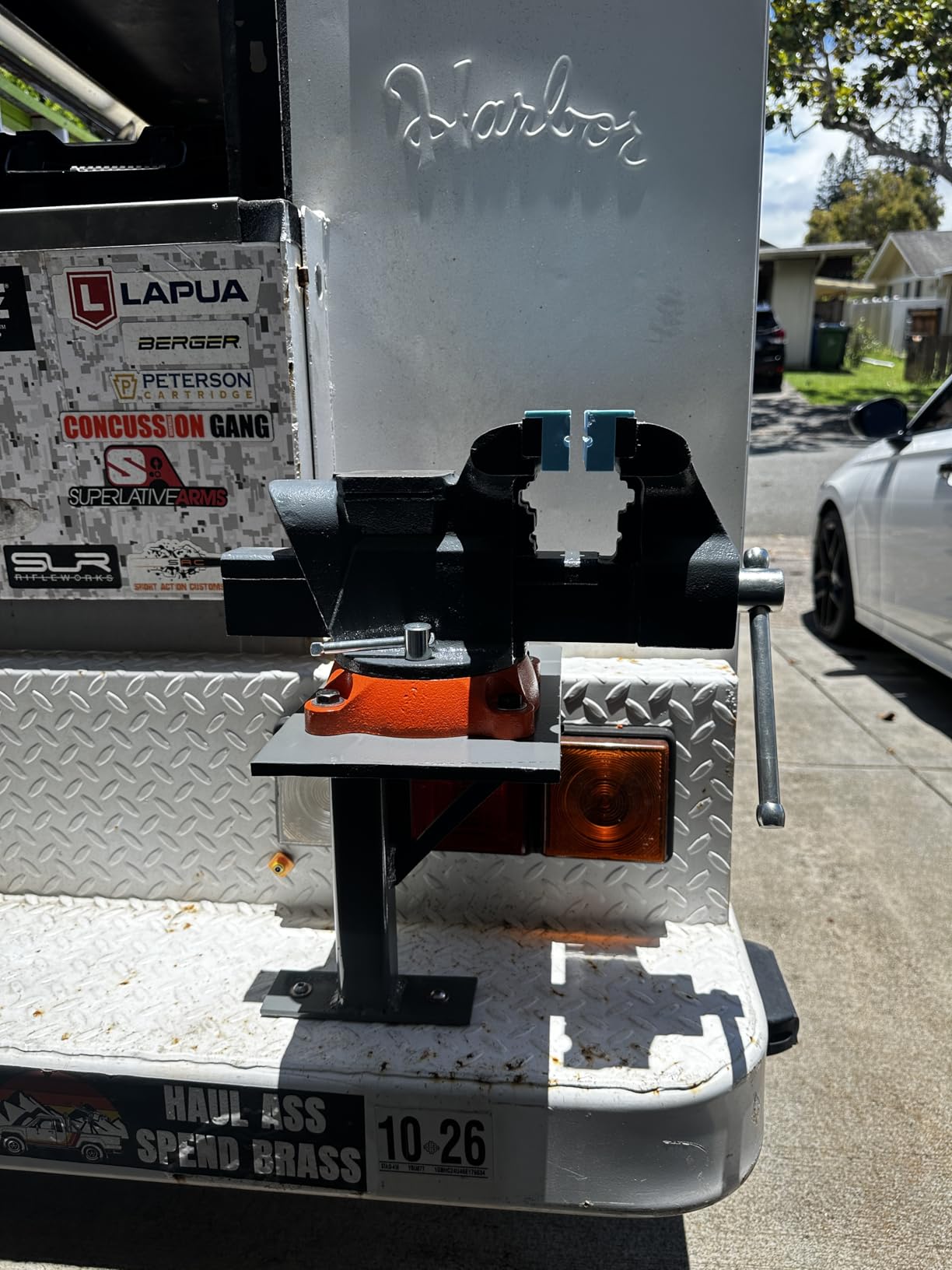

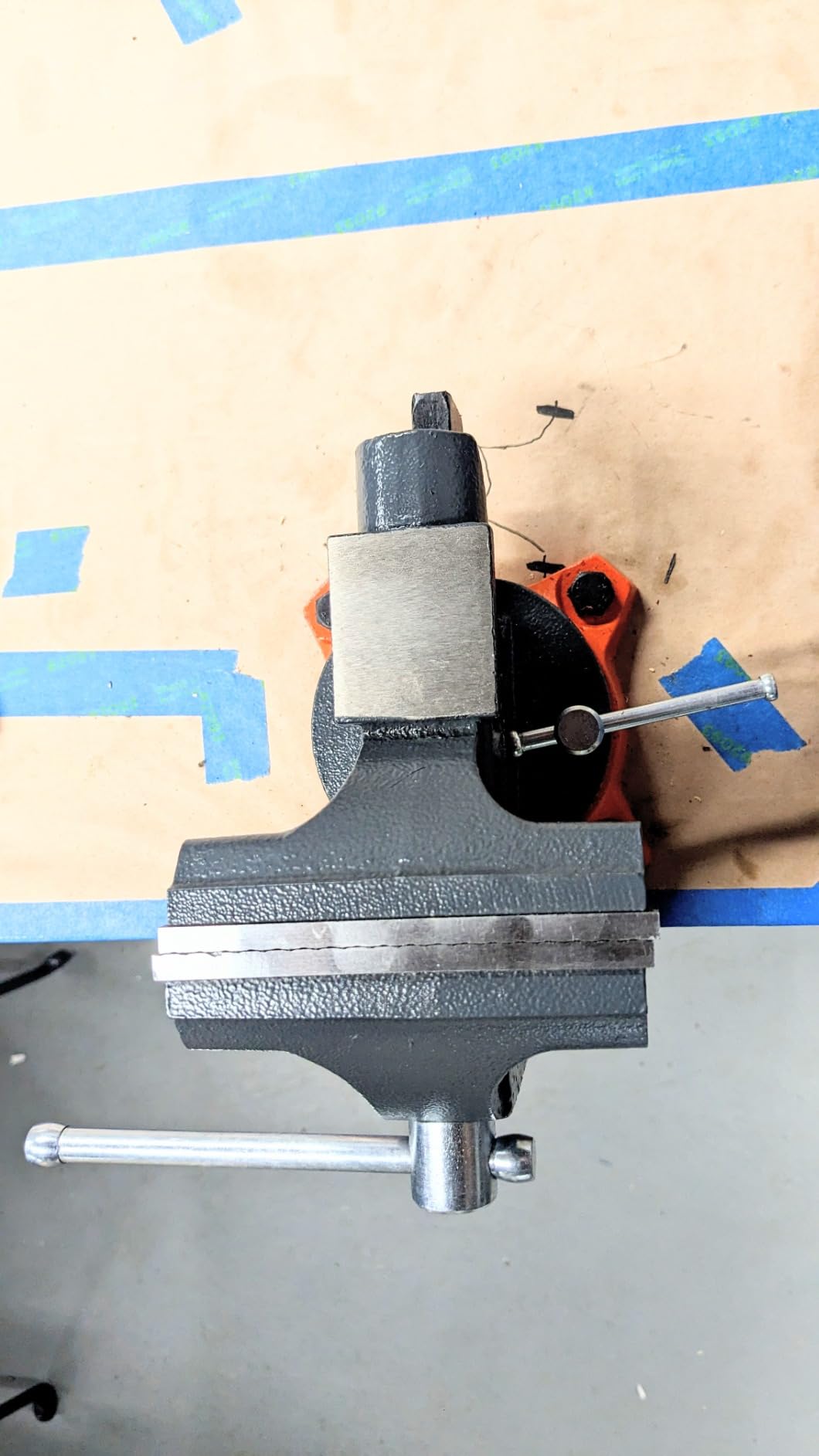

2. VEVOR 6 Inch Multi-Purpose Bench Vise: The Most Capability Per Dollar
VEVOR Bench Vise, 6-inch Jaw Width 5.9-inch Jaw Opening, 360-Degree Swivel Locking Base Multipurpose Vise w/Anvil, Heavy Duty Ductile Iron Workbench Vise w/Bolts & Nuts, for Drilling, Pipe Cutting
6 in jaw and 5.9 in opening
4,496 lb (20 kN) force
3.5 in throat depth
25 lbs with dual-screw swivel
Pros
- Number one best seller in the Bench Vises category with 1542 reviews
- Includes magnetic soft jaw pads for finished work
- Dual locking screws resist the base-cracking flaw of single-screw vises
- Smooth lead screw with high spring tension
Cons
- Supplied bolts are too short for most benches and lack locking washers
- Jaws sit slightly misaligned when fully closed
- Base is smaller than typical for a 6-inch vise
The VEVOR 6-inch is the most talked-about bench vise in this group, ranking as the number one best seller in the category with 1,542 reviews and a 4.7-star average. For a first metalworking vise on a tight budget, the amount of usable capability here is hard to argue with.
It measures 14.4 by 6 by 7.4 inches and weighs 25 lbs, which is lighter than most 6-inch vises. The lead screw action is smooth, with enough spring tension that the jaws resist chatter under load rather than creeping.
Two details stand out. The base carries two locking screws rather than one, which fixes a common failure mode on cheap swivel vises where a single screw eventually cracks the base casting. And it ships with magnetic nylon soft jaw pads, a courtesy you rarely see at this level.
On paper the specs are the strongest of the mid-size vises here. Jaw width is 6 inches, jaw opening is 5.9 inches, and throat depth is 3.5 inches, which is deeper than every 5-inch model in this roundup. Clamping force is rated at 20 kN, or 4,496 lb.
The body is forged from 60,000 PSI ductile iron with a rust-proof powder coat, and the serrated carbon steel jaw plates are replaceable. The anvil measures 2.9 by 3 inches, and the pipe capacity runs from 0.6 inch to 2.9 inch, so it covers thin wall tube as well as heavier pipe.
The only real complaint that repeats across owner feedback is the mounting hardware. The supplied M10 bolts are too short for a typical workbench and there are no locking washers, so plan to buy your own grade 8 bolts before mounting. A few owners also report slight jaw misalignment when the jaws are fully closed, and a little play in the moving parts.
Because the base is smaller than you would expect on a nominal 6-inch vise, reinforce the bench top under the mounting area. The overall footprint is 14.4 inches long and 7.4 inches tall, so check that against your bench clearance too.
Who the VEVOR 6 Inch suits best
This is the pick for a home shop on a budget that still wants a 6-inch jaw and a deep throat. If you are building a first metalworking bench, this gives you pipe jaws, soft jaw pads, replaceable plates, and dual base screws for less than most 5-inch vises from heritage brands.
It is also comfortable for a garage where the vise is shared between woodworking, sheet metal, and general repair.
Where the VEVOR 6 Inch falls short
It is not a machinist-grade vise, and anyone expecting a ground, hand-fitted slide will be disappointed. Owners also note the action is not perfectly precise, which matters if you are doing delicate layout or holding finished surfaces.
Buy your own hardware, and skip it if your bench is particleboard, because 25 lbs of clamping force concentrated on a weak top will eventually split it.

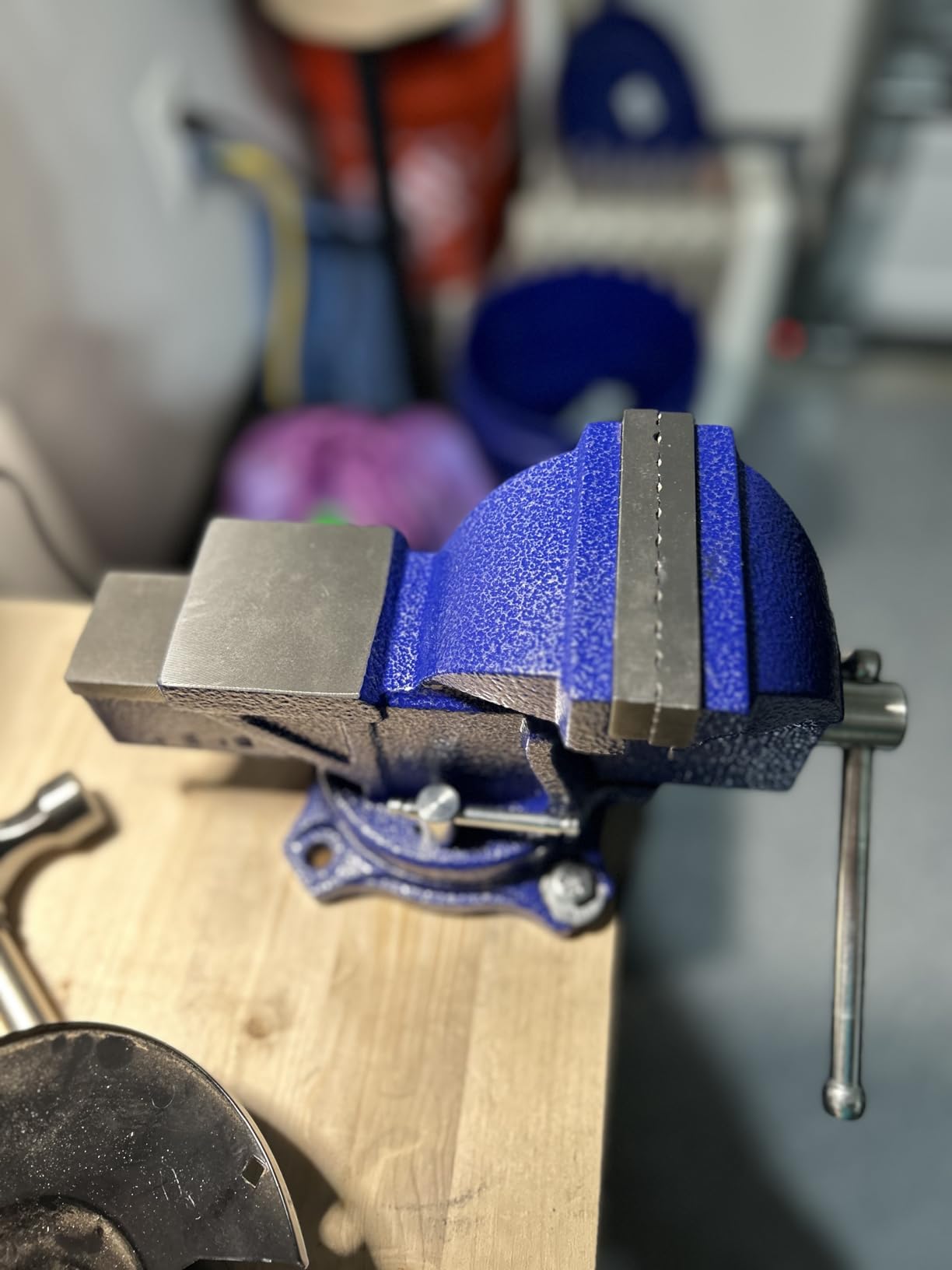

3. Wilton 11106 6 Inch General Purpose Bench Vise: The Dependable Shop Workhorse

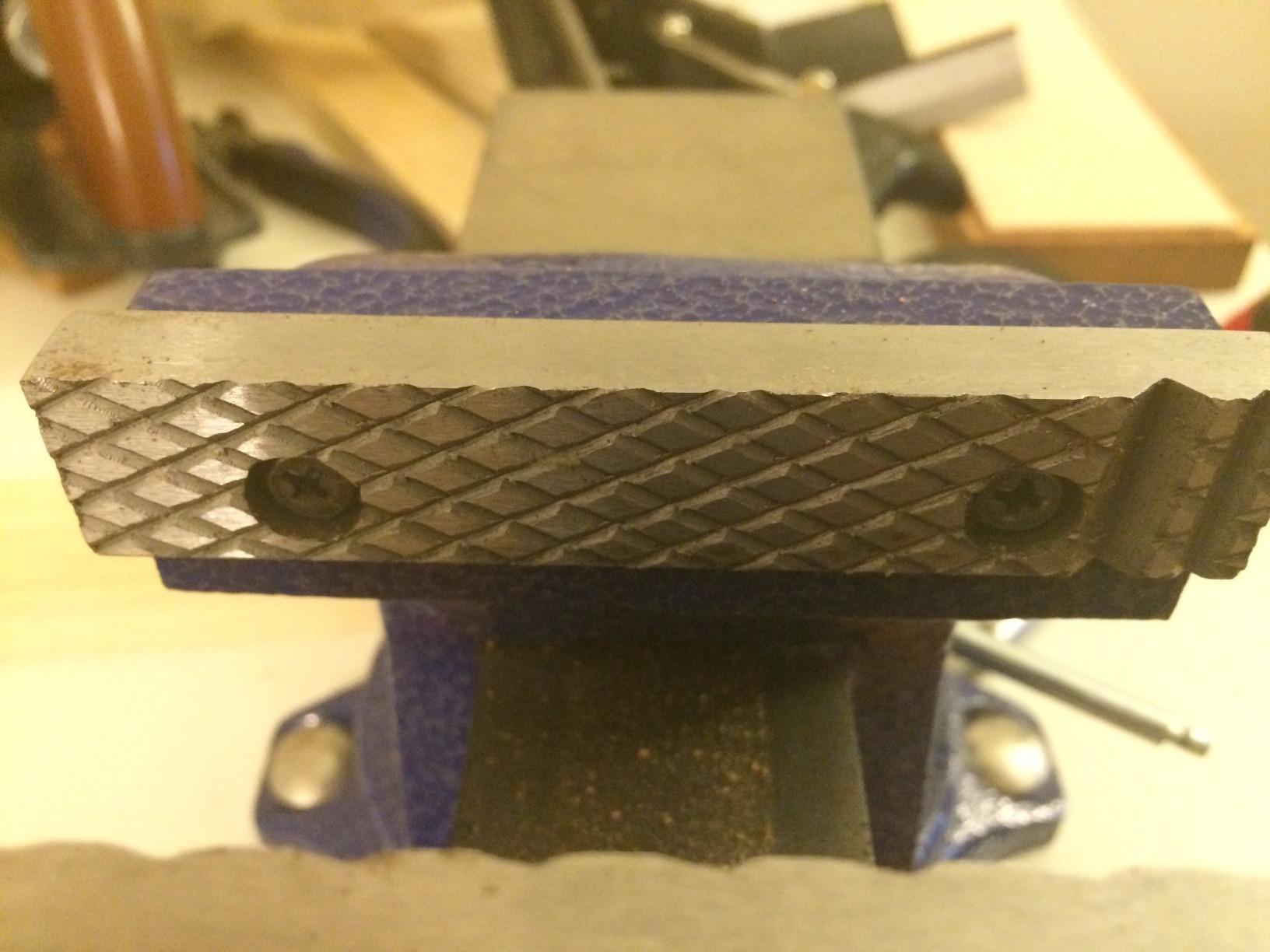

Wilton General Purpose Bench Vise, 6″ Jaw Width, 5″ Max Jaw Opening, 3″ Throat (11106)
6 in jaw and 5 in opening
30,000 PSI gray cast iron
38 lbs
Lifetime manufacturer warranty
Pros
- Backed by a lifetime warranty against manufacturing defects
- Double-lockdown 120-degree swivel base holds position
- Hardened replaceable machine-serrated jaw inserts
- Large anvil for forming work
Cons
- 30000 PSI gray cast iron is weaker than ductile iron rivals
- Swivel range limited to 120 degrees
- Fixed head with no rotation for angled work
Wilton is the name most people picture when they hear bench vise, and the 11106 is the general-purpose model that built that reputation. It is the one I recommend to automotive mechanics and repair shops that want something boring, heavy, and permanently covered by a lifetime warranty.
At 38 lbs it stays planted on the bench, and the cast iron body is the traditional 30,000 PSI gray iron that generations of shops have used. Nothing about the construction is cutting edge, which is exactly why it endures.
Owner feedback repeats the same themes: solid casting, jaws that stay square, and a swivel base that does not creep. The warranty is the headline. A lifetime warranty against manufacturing defects changes the calculation for anyone planning to keep a vise for decades.
Dimensions are 16.6 by 8 by 8.4 inches, with a 6 inch jaw width, 5 inch maximum opening, and 3 inch throat. The jaw inserts are hardened steel with machine-serrated faces, and they are replaceable, which is the single most important feature for anyone who grinds a face flat for sheet metal work.
The swivel base rotates 120 degrees with double lockdowns. In practice that covers most workholding angles, but it is a fraction of the 360-degree bases on several picks in this roundup, and the head itself is fixed with no rotation. When you need to hold a tall vertical pipe, you position the workpiece rather than the vise.
The anvil work surface is large enough for general striking and forming. The listed tensile strength figure of 30,000 PSI is the honest weakness here. That is half the rating of the ductile iron models in this roundup, and it is why we would not use the 11106 for heavy pressing or hammering work.
Who the Wilton 11106 suits best
Auto shops, diesel shops, and general repair benches. The 6-inch jaw handles suspension bolts, brackets, and shaft work, and the anvil covers light punch and flatten work without needing a second fixture.
It is also the choice for anyone who wants brand serviceability. Wilton publishes an exploded parts diagram, and jaw inserts and anvil surfaces are replaceable, so a damaged vise does not become scrap.
Where the Wilton 11106 falls short
It is not the right pick for heavy machining, hot forging support, or aggressive impact work, where the lower tensile rating shows. The 120-degree swivel and fixed head also make it awkward for angled or vertical clamping compared with a rotating-head design.
If your bench is small, 38 lbs plus a 16.6 inch length is a lot of real estate for a 5 inch opening. If space is tight, a 5-1/2 inch model gives a similar feel in a smaller frame.

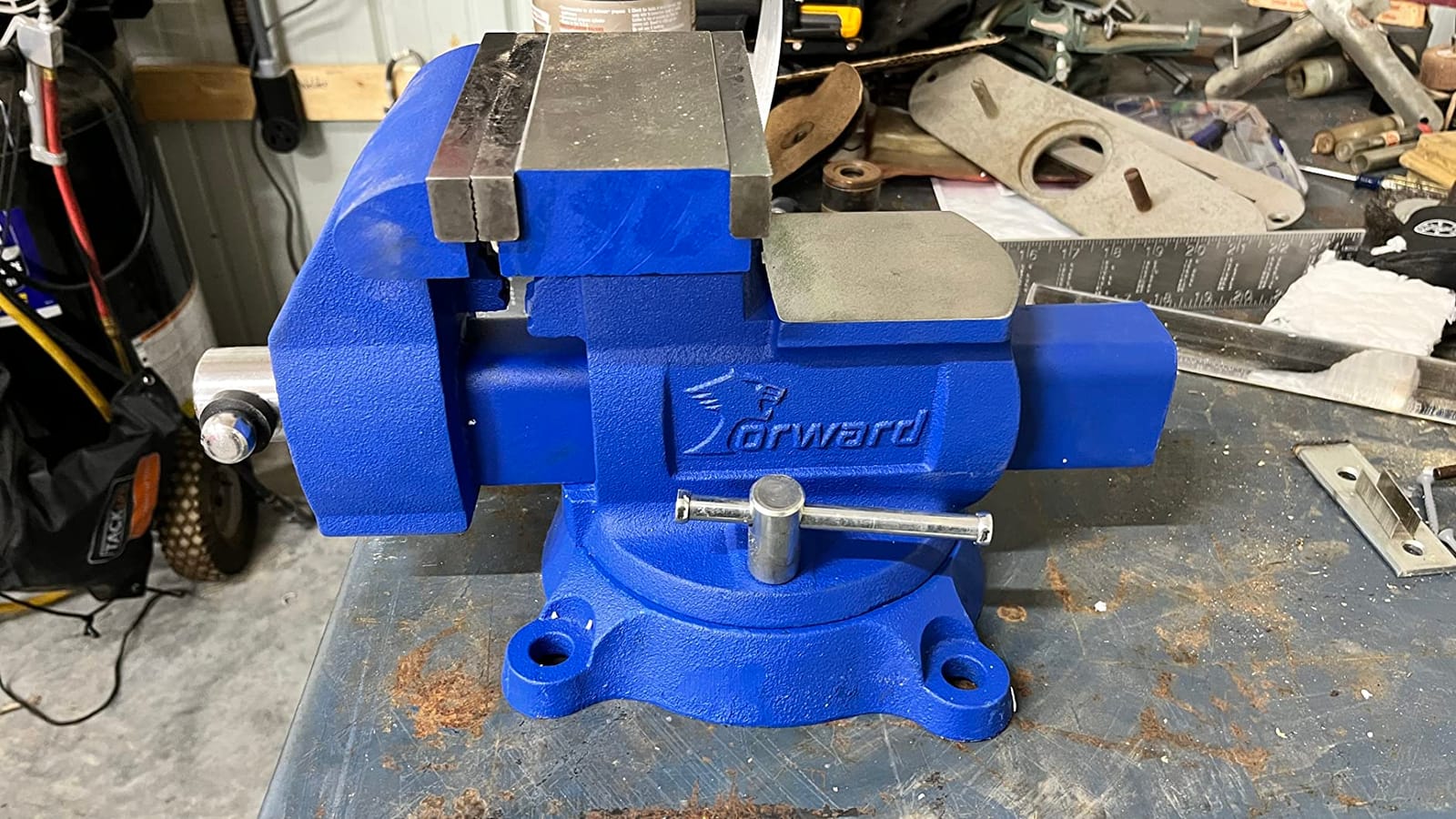

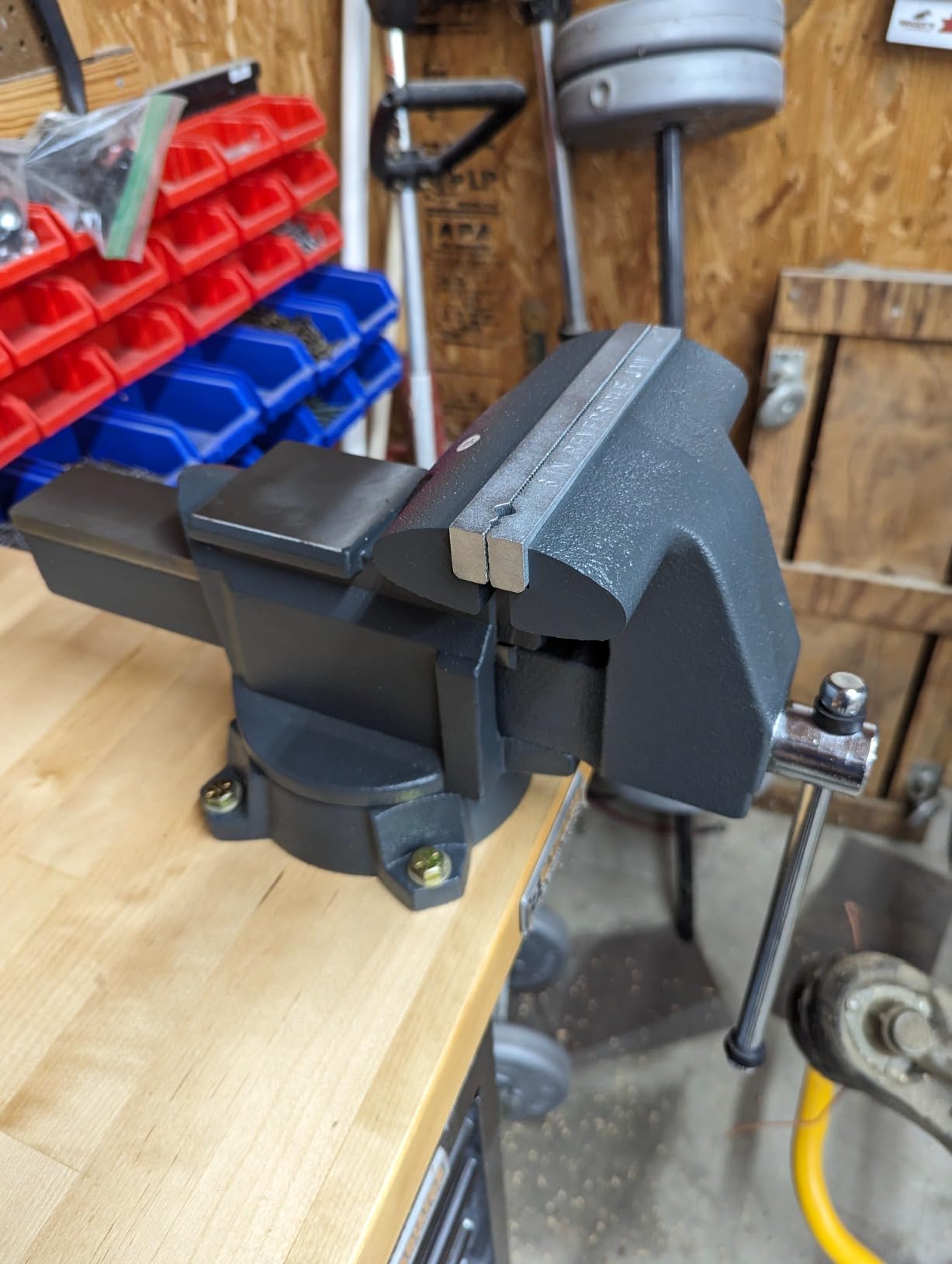

4. Forward CR50A 5.5 Inch Bench Vise: Deep Throat and Serious Clamping Force
Forward CR50A 5.5 Inch Bench Vise Heavy Duty with Anvil and 210°Swivel Base
5.5 in jaw and 6 in opening
7,700 lb (35 kN) force
3.1 in throat
60,000 PSI ductile iron
Pros
- 7700 lb clamping force is well above most 5-inch vises
- Deep 3.1 in throat paired with a 6 in opening
- Replaceable flat jaws and built-in pipe jaws
- Large anvil for grinding
- cutting and tapping
Cons
- 210-degree swivel is short of a full rotating head
- No V-jaw set for round material
- 5.5 in jaw width limits very large flat bar
The Forward CR50A is the odd-sized answer to the 4 inch versus 6 inch debate, and the numbers back up the unusual format. It opens 6 inches wide on a jaw that is only 5.5 inches across, and it pulls 7,700 lb of clamping force.
That is the highest clamping force of any Forward model in this roundup, and it is achieved on a body that is not excessively heavy. If you want more pull than a 5-inch vise gives you without jumping to a 6-inch bench, this is the middle step.
Owners highlight the throat depth first. A 3.1 inch throat on a vise this size means tall upright pieces sit close to the spindle line, which makes clamping far easier than on a shallow-throat 5-inch model.
Everything is cast from 60,000 PSI ductile iron. Two sets of replaceable jaws are supplied: flat slotted jaws for general work, and built-in pipe jaws covering 1/2 inch to 3-1/2 inch, which is a wide range for a vise under 6 inches.
The overall footprint is 14.4 by 6.2 by 7.6 inches, so it is compact enough for a mid-size bench. The swivel base rotates 210 degrees, which is far more useful than a fixed base and less versatile than the 360-degree designs on the Yost 760-DI, the Wilton 650P, and the Forward DT08125A.
The large reinforced anvil is intended for grinding, cutting, and tapping. It is larger than the anvils on most 5-inch vises here, which makes it a better surface for flattening cut ends and light punch work before welding prep.
The one thing it does not offer is a dedicated V-jaw set. Round material has to be worked in the pipe jaws, which is fine for pipe and tube but awkward for short round bar that needs to sit upright and be drilled or cross-drilled.
Who the Forward CR50A suits best
Fabricators and hobby metalworkers who want a deep throat and strong pull in a bench-friendly size. It is a natural fit for welding prep, where you are cutting, grinding, and dressing plate before the torch.
It is also a good match if you do a lot of pipe and tube work in the 1/2 inch to 3-1/2 inch range and want that capacity built in rather than added later.
Where the Forward CR50A falls short
If you work with round bar held vertically, or you need to swing a long workpiece through more than 210 degrees, the limited swivel becomes a daily annoyance. The 5.5 inch jaw also stops you from clamping very wide flat material that a true 6-inch vise would take.
Choose it for depth and force, not for rotation or V-jaws. If rotation matters more, look at the 6-inch options further down this list.

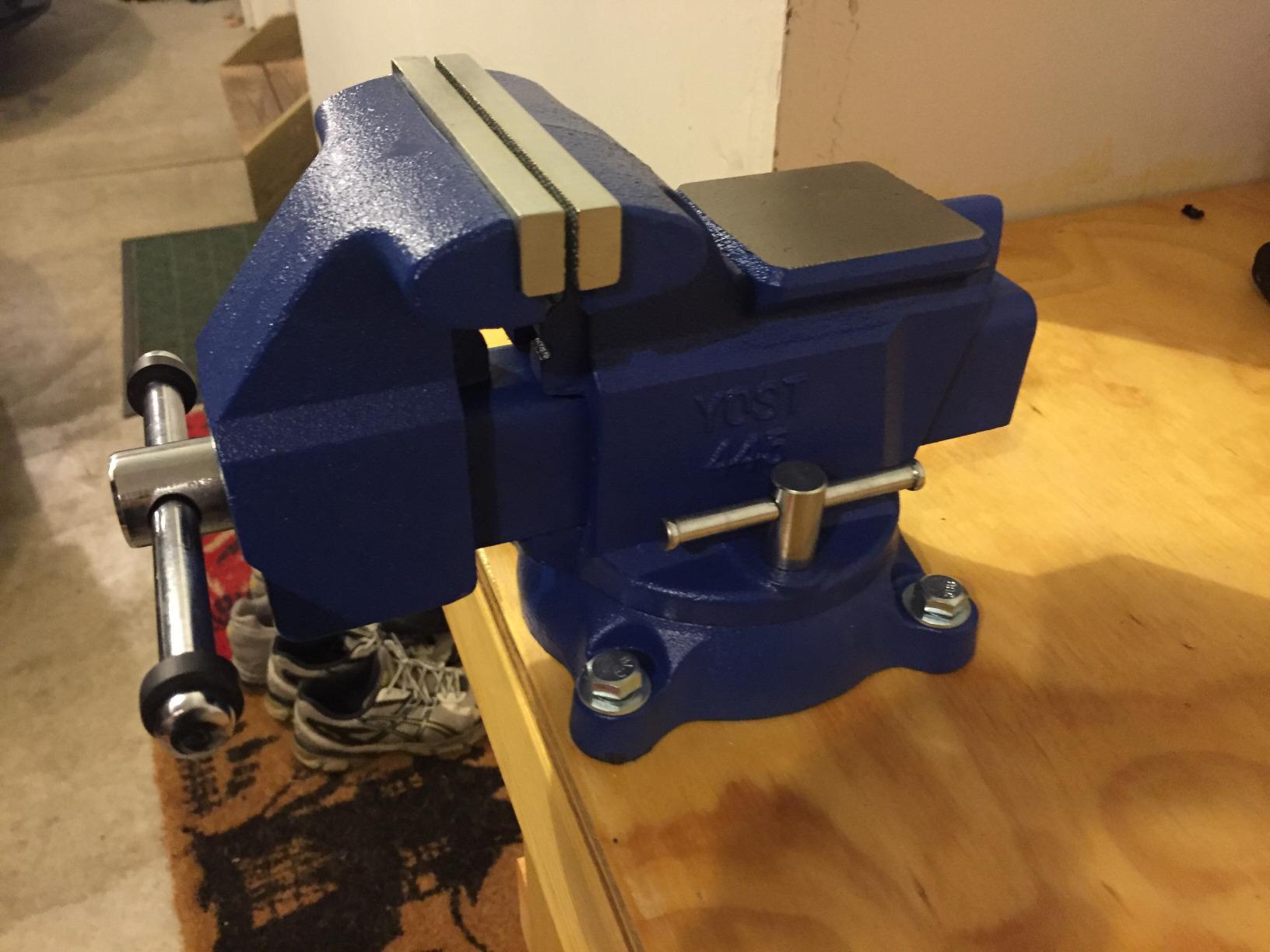

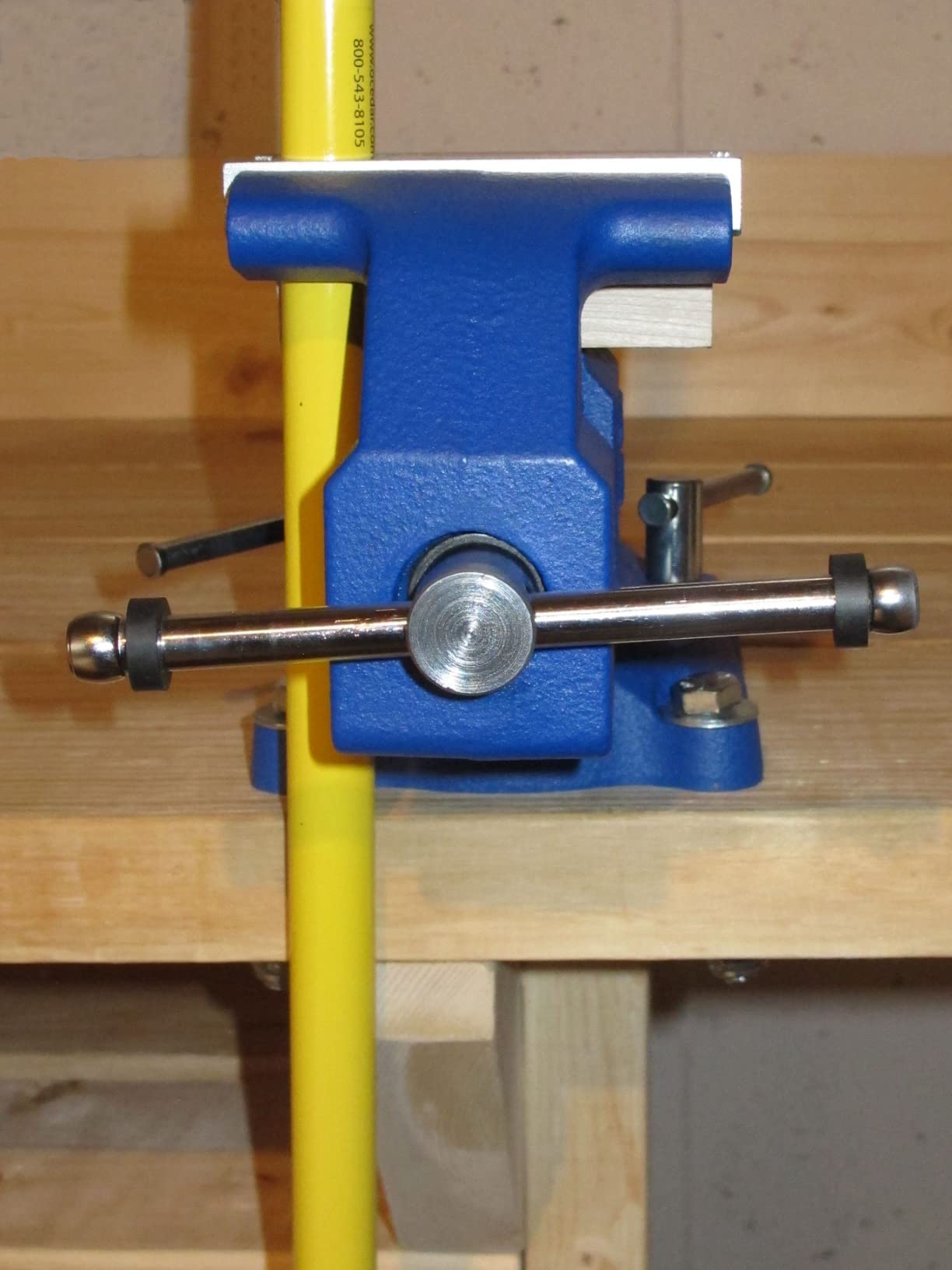

5. Yost 445 Combination Bench and Pipe Vise: The Lightweight Budget Pipe Vise
Yost Vises 445 Combination Vise | 4.5 Inch Jaw Width Utility Pipe and Bench Vise |Secure Grip with Swivel Base and Large Pipe Jaw Capacity | Made with Cast Iron and Steel U Channel Bar
4.5 in jaw and 4 in opening
Pipe capacity 0.125 in to 2 in
17 lbs
30,000 PSI cast grey iron
Pros
- Handles flat material and up to 2 in pipe in one tool
- Lightest vise in the roundup at 17 lbs
- 360-degree swivel base with two lockdowns
- Replaceable hardened serrated top jaws
Cons
- 30000 PSI grey iron is the weakest material here
- 4.5 in jaw and 4 in opening limit larger work
- Only a 1-year limited warranty
The Yost 445 is the one to buy if your bench is small, your budget is fixed, and you need a vise that clamps pipe. It weighs 17 lbs, which makes it the easiest model here to mount, and it carries a large permanent serrated pipe jaw as well as standard bench jaws.
That combination is genuinely useful. Instead of buying a second bench pipe vise, you get flat clamping and round clamping in the same 4.5 inch frame with a 4 inch opening and 2.625 inch throat.
Yost is a long-established American brand, and the 445 has a 4.7-star average across 1,195 reviews. Reviewers treat it as a solid budget combination vise rather than a heavy shop tool, and the expectations match that description.
The construction is 30,000 PSI cast grey iron with a steel U-channel bar running through the body, which is how the slide gets its strength at this price. The top jaws are replaceable hardened steel with serrated faces, and the large anvil work surface handles light striking and flattening.
Pipe capacity runs from 0.125 inch up to 2 inch, which covers everything from thin wall tube to 2 inch pipe. The swivel base rotates a full 360 degrees with two lockdowns, so despite the small frame you can still swing a short fitting into position.
Two limits are worth being clear about. The listed tensile strength figure of 1,500 lb is low next to the ductile iron models in this roundup, and the warranty is a 1-year limited warranty rather than the lifetime coverage offered on several Wilton models. That is an honest statement of where it sits in the duty class ladder.
Measure your bench first. The overall dimensions are 6 by 8 inches, which is the smallest footprint in the group, but a 4 inch opening means large plate and long bar simply will not fit.
Who the Yost 445 suits best
Plumbers, HVAC technicians, and anyone doing pipe fitting on a small bench or in a mobile setup. At 17 lbs it moves between benches easily, and the built-in pipe jaw removes the need for a separate clamp.
It is also a sensible first vise for a hobbyist working with mild fabrication and general repair who is not planning to press or hammer heavy material.
Where the Yost 445 falls short
It is not a heavy duty bench vise for metalworking, and treating it as one will disappoint you. Grey iron at 30,000 PSI cracks rather than flexes under abuse, and the 1-year warranty reflects that limit.
If you plan to hammer, press bearings, or bend thick plate, step up to a ductile iron model with replaceable jaws and a longer warranty.

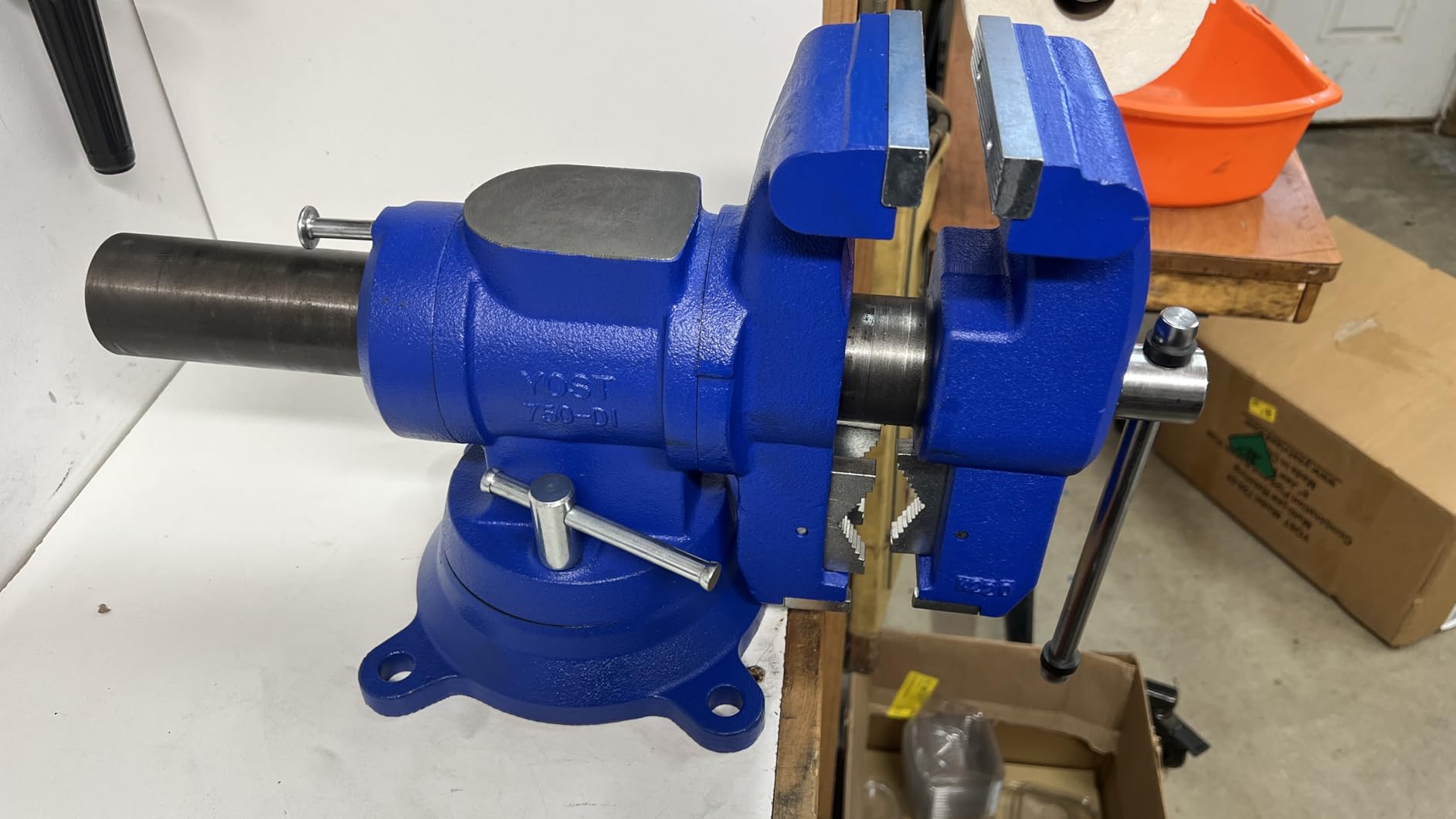

6. Yost 760-DI 6 Inch Multi-Jaw Rotating Vise: The Deepest Throat in the Roundup
Yost Vises 760-DI Multi-Jaw Rotating Vise 6 Inch Jaw Width | 2 in 1 Multipurpose Bench and Pipe Vise | Secure Grip with Swivel Base | Made with a Combination of Ductile Iron & Hardened Steel
6 in jaw and 5.90 in opening
4.31 in throat depth
60,000 PSI ductile iron
75.8 lbs with dual rotation
Pros
- Deepest throat in the roundup at 4.31 in
- Body and head both rotate 360 degrees with two lockdowns
- Three replaceable jaw sets including V-jaws
- 75.8 lb body stays solid under heavy torque
Cons
- 75.8 lbs will crack a particleboard bench
- Some play in the head pin when the jaws are open
- Anvil finish chips sooner than premium cast iron vises
The Yost 760-DI is the most mechanically ambitious vise here. It has dual rotation: the whole body swivels 360 degrees on an interlocking V-grooved base, and the head itself rotates a further 360 degrees, locking at 12 positions every 30 degrees.
In practice that means you can hold a tall vertical pipe, an angled bracket, or a long tube and still get the jaws square on the work. Long-term owners describe it as the best value in a rotating multi-jaw vise, specifically because the locking rigidity once clamped is exceptional.

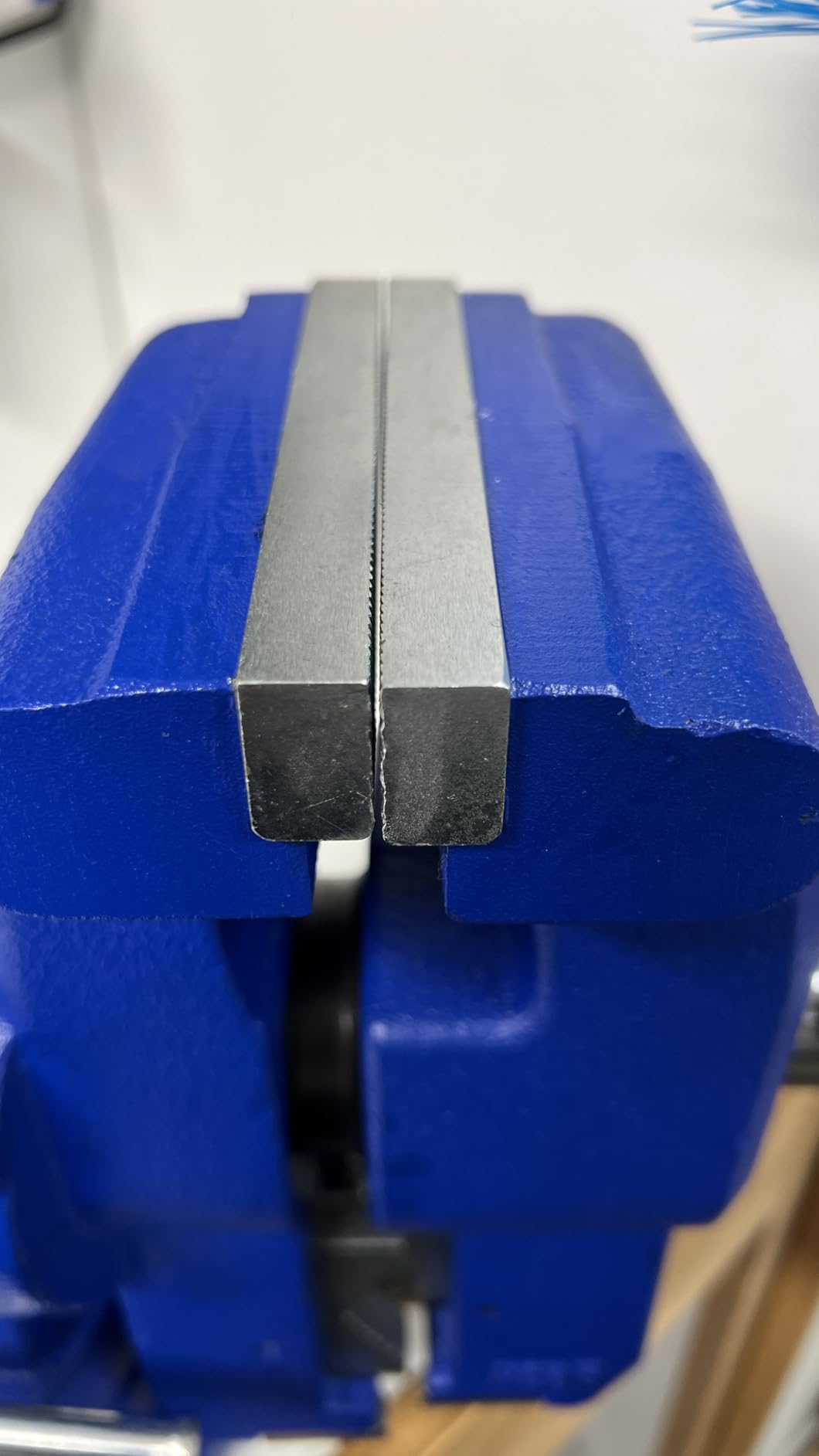

Owners also report that the jaws align perfectly and the lead screw is well machined. At 75.8 lbs it does not move once it is bolted down, which is exactly what you want in a vise that is asked to resist big torque.
The throat depth of 4.31 inches is the deepest in this roundup by a wide margin, and that is the number that matters most on this vise. Jaw width is 6 inches with a 5.90 inch opening, so tall upright material sits well back from the spindle line and clamps with far less effort.
Pipe capacity runs from 0.63 inch to 4.33 inch, the largest of any model here, which makes it a genuine bench and pipe vise in one body. Three replaceable jaw sets ship with it: parallel serrated bench jaws, serrated pipe jaws, and V-jaws for round material.
The casting is 60,000 PSI ductile iron with hardened steel replaceable jaws, and there is a large anvil work surface. The warranty is a 3-year limited warranty, which sits between the 1-year budget models and the lifetime coverage on the Wilton options.
Two practical cautions. At 75.8 lbs, install this on a reinforced top or a steel stand; owners report cracking a particleboard bench with a vise of this class. And note that the vise cannot rotate a workpiece while the jaws are clamped, by design, so plan your setup before tightening. Some owners also report slight play in the head retaining pin when the jaws are open, and a handle that sits close enough to the head to catch fingers.
Who the Yost 760-DI suits best
Anyone holding long pipe, tube, or tall upright work on a regular basis. The 4.33 inch pipe capacity and 4.31 inch throat cover material that most vises here simply cannot take, and the indexed head makes setup repeatable.
It is a strong fit for a small machine shop or fabrication shop that has already learned how to work around a heavy bench vise, and for anyone who prefers a single tool that covers bench, pipe, and round stock.
Where the Yost 760-DI falls short
It is the heaviest vise in this roundup, and weight is not a feature if your bench cannot carry it. It is also overkill for a hobbyist who clamps short bar and does light assembly work, where a 25 lb vise will serve better and take less space.
Skip it if you need a very wide jaw opening for long bar, since the 5.90 inch opening is smaller than the 7.875 inch offered by the Yost ADI-6.

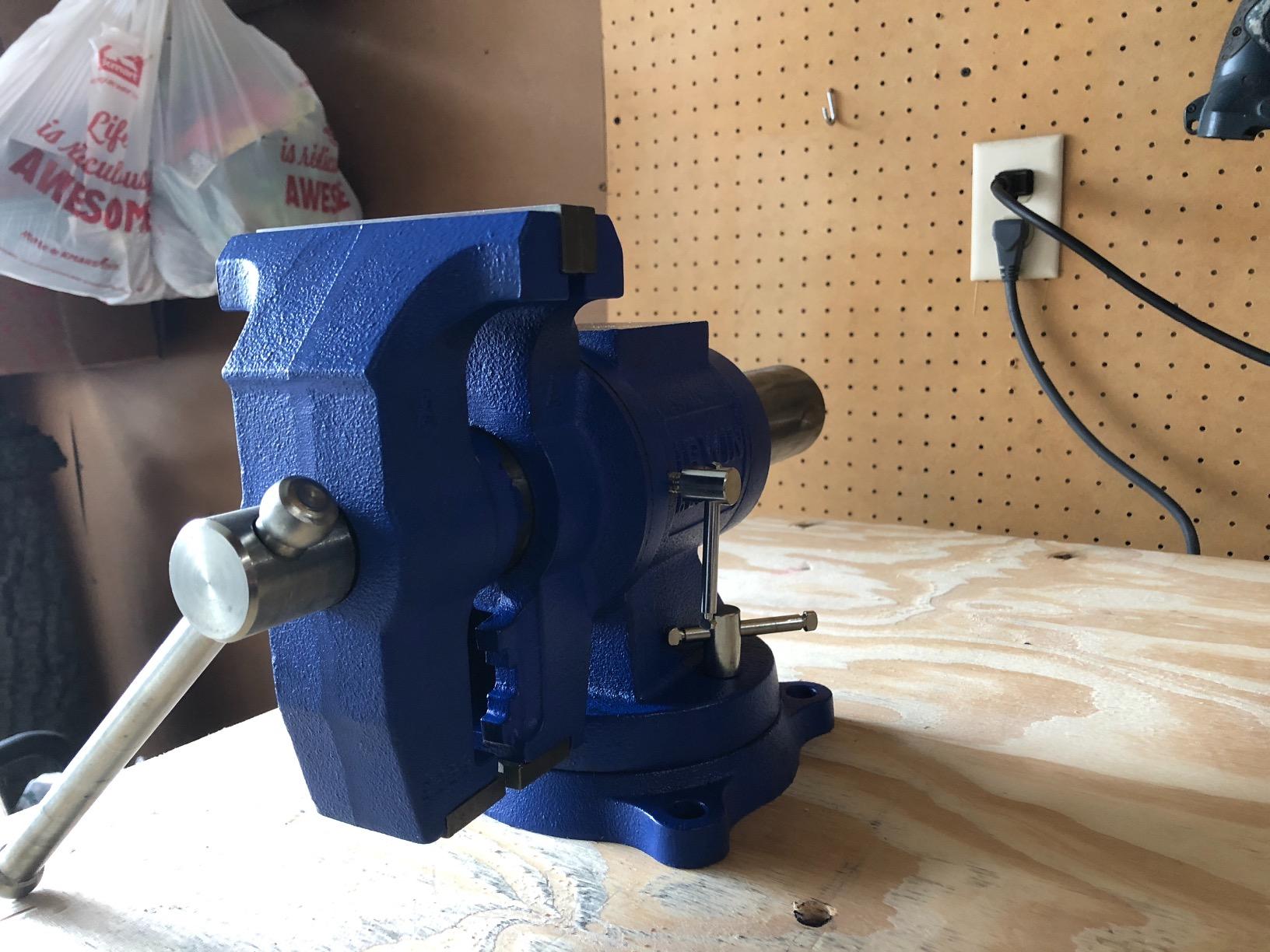

7. IRWIN 5 Inch Multi-Purpose Bench Vise: Two-Axis Rotation for Round Material
IRWIN Tools Multi-Purpose Bench Vise, 5-Inch (4935505)
5 in jaw width
Rotates in two planes
33.1 lb cast iron
Integrated anvil
Pros
- Rotates in two planes for vertical or horizontal round material
- Built-in rotating pipe jaws rarely seen at this level
- One owner reports a decade of abuse with no failure
- Heavy 33 lb cast iron body that stays square
Cons

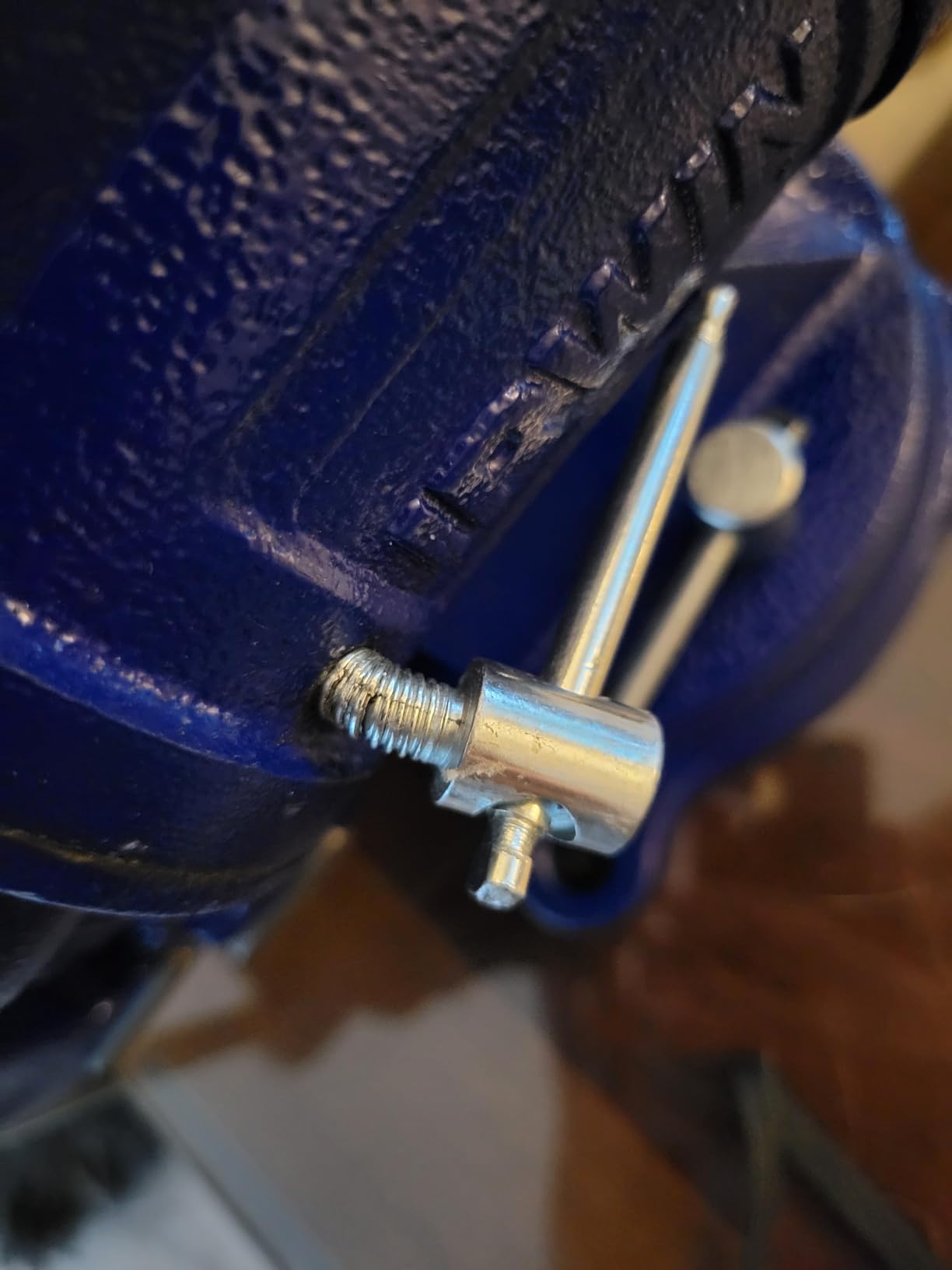

- Blue casting blocks the machined steel pipe jaw from seating fully
- Action is not machinist precise and jaws can loosen with use
- Occasional transit damage to the swivel lock
The IRWIN 5-inch stands apart because it rotates in two planes. The swivel base turns 360 degrees, and the pipe jaws themselves rotate, so you can orient round material vertically or horizontally without rearranging the vise.
That is a narrower feature than the dual-rotation Yost 760-DI, but for pipe and round bar specifically it is the most useful rotation in the group. IRWIN is a recognised name, and the build quality of the casting matches the brand.
At 33.1 lbs it is a solid bench presence. One owner reports a decade of abuse, including cheater-pipe tightening, with no failure, which is the kind of longevity claim you rarely see outside heritage brands.
The 5 inch jaw width sits in the middle of the roundup, and the rotating pipe jaws are machined steel rather than cast. The fused steel handle allows fast adjustment, which matters when you are moving between clamping jobs all day, and the incorporated anvil keeps the vise steady while you work.
The overall dimensions are 18.75 by 9.88 by 9.13 inches, which is longer than most 5-inch vises. Check bench depth before committing.
The most-cited design flaw is worth understanding before you buy. The blue casting obstructs the machined steel pipe jaw, so round material cannot seat fully against it. You will still get a solid grip, but you lose some of the capacity the feature implies, and it is a genuine frustration for pipe fitters.
Owners also describe the action as slightly sloppy rather than machinist precise, and note the jaws can loosen a little with use and may need periodic adjustment. There are occasional reports of transit damage to the swivel lock, so inspect the base on arrival.
Who the IRWIN 5 Inch suits best
Plumbers, pipe fitters, and hobbyists who work on round material and want it vertical for drilling, tapping, or fitting. Two-axis rotation is rare in this size class, and the machined pipe jaws are a real asset when the casting does not get in the way.
It is also a good durability pick for a general repair bench that sees a mix of everything and wants one tool that will not need replacing.
Where the IRWIN 5 Inch falls short
If you need a precision slide, choose something else. The action is not ground or hand-fitted, and the jaws can loosen over time, which will frustrate anyone doing layout work to a tight tolerance.
The blocked pipe jaw and the long 18.75 inch footprint are the two practical limits to plan around.
8. COGNATIVE 6 Inch Bench Vise: The 9,900 lb Clamping Force Pick
COGNATIVE 6” 360° Multi-Purpose Ductile Iron Bench Vise, 9900LB
6 in jaw and 5 in opening
9,900 lb (4,500 kg) force
60,000 PSI ductile iron
37 lbs with printed scales
Pros
- 9900 lb clamping force with no other model here higher
- Straight and round scales printed on the body aid positioning
- Hole spacing suits standard welding tables
- Blue powder coat with zinc-plated spare parts
Cons
- Scale markings sit under the paint and must be ground for welding ground connections
- Supplied bolts are too short for many worktables
- Lowest average rating in the group at 4.6 stars
The COGNITIVE 6-inch advertises 9,900 lb of clamping force, and no other model we list publishes a higher clamping figure. Whether you feel the full benefit depends on your bench, but the body is a genuine 60,000 PSI ductile iron casting with a blue powder coat.
Two things make it stand out for welding work. The hole spacing matches standard welding tables, so the vise can double as a fixture. And straight and round scales are printed directly on the body, which helps you position a workpiece to a consistent measurement instead of eyeballing it.
Owners describe it as substantial, heavy, and solidly built, and welding users in particular appreciate the table compatibility.
Jaw width is 6 inches with a 5 inch opening and a 79mm (3.11 inch) throat. Pipe capacity covers 16-64mm, or 0.6 inch to 2.5 inch, and the anvil surface measures 80 by 65mm, or 3.38 by 2.55 inches.
Weight is 37 lbs (16.81 kg), and the dimensions are 8.27 by 8.27 by 17.32 inches. That height is worth measuring against your bench, since the body is tall for a 6-inch vise.
There are upgraded variants with a 45-degree jaw lock knob that tightens the jaws toward the work, which is useful when you need more bite without more spindle force. The base rotates 360 degrees, and the family covers wood, aluminium alloy, steel, and plastic across its size range.
The main caveat is the paint. The printed scales sit under several layers of coating, so if you intend to use the vise as a welding ground, you have to grind the paint away first. Owners also report the supplied bolts are too short for many worktables, and a few note that smaller variants in the same family run smaller than the photos suggest, so read the dimensions carefully.
Who the COGNITIVE 6 Inch suits best
Welders and fabricators who want the vise and the welding table to be one fixture. The matched hole spacing means you can move the whole setup without re-fixturing, and 9,900 lb of rated force gives plenty of reserve for clamping plate for cutting and grinding.
It also suits anyone who positions work by measurement rather than by eye, since the body scales support repeatable setup.
Where the COGNITIVE 6 Inch falls short
The average rating of 4.6 stars across 461 reviews is the lowest in this roundup, with a slightly higher share of critical reviews than the rest. That is not a dealbreaker, but it is a signal to buy from a seller who accepts returns easily.
Skip it for hot work without grinding the coating first, and buy your own mounting hardware.
9. Yost ADI-6 6 Inch Heavy Duty Bench Vise: The Strongest Material Spec
Yost Vises ADI-6 Heavy Duty Vise | 130,000 PSI Tensile Strength Austempered Ductile Iron Bench Vise | 6 Inch Jaw Width with a 360 Degrees Interlocking Swivel Base and 2 Lockdowns | Red
6 in jaw and 7.875 in opening
130,000 PSI austempered ductile iron
42 lbs
Geared interlocking swivel base
Pros
- 130000 PSI austempered ductile iron is the strongest material in the group
- Widest jaw opening at 7.875 in for long bar and pipe
- Geared 360-degree swivel base locks firmly with two lockdowns
- Limited lifetime warranty on the castings
Cons
- 42 lb body needs a solid bench
- No rotating head for angled workholding
- Smallest review base among the premium picks
The Yost ADI-6 is built around one number: 130,000 PSI austempered ductile iron. That is the highest material tensile rating in this roundup by a wide margin, and it is why buyers point to this vise first when they ask what the strongest bench vise available looks like.
The second headline is the 7.875 inch jaw opening, the widest here. Combined with a 6 inch jaw width and 3.7 inch throat, it clamps long pipe, tube, and flat bar that most vises in this roundup simply cannot open wide enough for.
The swivel base is different from the friction-only designs used on several picks. It is a geared, interlocking 360-degree base with two lockdowns and three mounting holes, and owners report it locks firmly and stays put under load.
The jaws are replaceable hardened steel, supplied as serrated machinist jaws and serrated pipe jaws, with zinc-plated handle, lockdowns, and jaws to slow corrosion. Pipe capacity runs from 0.75 inch to 3.5 inch, and there is a large anvil work surface on top.
Weight is 42 lbs and the dimensions are 20 by 10 by 8.5 inches, which makes it a long, low presence on the bench rather than a tall one. That geometry actually helps with long bar: the work extends past the body rather than colliding with it.
The warranty is a limited lifetime warranty on the castings, which is the strongest coverage on any non-Wilton model here. The tradeoff is that the ADI-6 has no rotating head, so angled workholding still means positioning the workpiece instead of the vise.
It also carries the smallest review base among the premium picks at 583 reviews, so treat the specification as the deciding factor rather than the volume of owner feedback.
Who the Yost ADI-6 suits best
Heavy fabrication, structural work, and anyone clamping long heavy bar, thick plate, or large pipe. The 130,000 PSI body and the 7.875 inch opening are the combination you want when the material is the problem, not the vise.
It is a strong choice for a working mechanic handling suspension components and large fasteners, and the lifetime casting warranty suits a shop that expects to keep it indefinitely.
Where the Yost ADI-6 falls short
At 42 lbs with a 20 inch length, it needs a substantial bench. If your mounting surface is thin plywood or particleboard, this is the vise that will split it.
The lack of a rotating head rules it out for tall vertical workholding and for setups needing more than a few degrees of tilt, and its 3.7 inch throat is shallower than the Yost 760-DI despite the higher price in the range.
10. Wilton 650P 6-1/2 Inch Multi-Purpose Bench Vise: The Largest Multi-Purpose Head
Wilton Multi-Purpose Bench Vise, 6-1/2″ Jaw Width, 6-1/4″ Jaw Opening, 3-1/4″ Throat (Model 650P)
6-1/2 in jaw and 6-1/4 in opening
360-degree indexed rotating head
58.4 lbs
Lifetime warranty
Pros
- Largest jaw width and opening among the multi-purpose vises here
- Rotating head indexed at 30-degree increments for repeatable setup
- V-jaws hold round material vertically
- Lifetime warranty with an exploded parts diagram
Cons
- Heaviest duty commitment at 58.4 lbs
- No bearings between base and body so the joint can seize in humid shops
- Finish chips at the base and body seam out of the box
The Wilton 650P is the big-jaw multi-purpose pick. It has a 6-1/2 inch jaw width and a 6-1/4 inch opening, and the head rotates a full 360 degrees indexed at 30-degree increments, so you can return to the same angle every time.
That indexed head is the detail experienced users notice. Long-time owners with decades of Wilton vises behind them call this the best multipurpose vise they have owned, citing square replaceable jaws, very smooth screw action, and repeatable setup angles.
It is also the heaviest commitment in this roundup at 58.4 lbs, with overall dimensions of 23.5 by 11 by 10 inches. Plan the bench before you order.
The jaws are replaceable hardened steel serrated jaws, plus separate replaceable steel pipe jaws and a V-jaw set that holds round material vertically. The V-jaws are the feature gunsmithers and drillers look for, since a part can be held plumb and cross-drilled without a second fixture.
The body combines cast iron and ductile iron, and there is a large built-in anvil for forming and shaping. The material description is mixed rather than a single rated figure, so treat it as a heavy general-purpose casting rather than a spec-driven duty rating.
Two complaints recur. The base-to-body joint has no bearings, so owners in humid shops worry it will eventually rust solid, and the finish chips at the base and body seam on some units straight out of the box. Packaging is also not built for freight handling, so inspect the vise on arrival before mounting.
The lifetime warranty is the counterweight. It covers manufacturing defects, and Wilton publishes an exploded parts diagram for service, which matters on a vise this size.
Who the Wilton 650P suits best
Gun, rifle, and pistol work where a part has to be indexed to a repeatable angle, and any shop that rotates a workpiece rather than leaning it against the jaws. The 30-degree indexing makes fixture-free setups repeatable.
It is also the right choice for anyone who clamps wide plate and large flat material and wants a lifetime warranty behind it.
Where the Wilton 650P falls short
It is a large commitment: 58.4 lbs and 23.5 inches of length. If your bench is compact or built from light material, the mounting requirement is the real obstacle, not the vise.
The unbearered base joint and the finish quality at the seam are genuine quality-control concerns in humid shops. A light oil film on the swivel interface during the first year goes a long way toward preventing seizure.
11. Forward 30505 5 Inch Bench Vise: The Lightest Full-Size 5 Inch Vise
Forward 30505 5 Inch Bench Vise Heavy Duty with Anvil and 360° Swivel Base
5 in jaw and 5 in opening
5,500 lb (24.5 kN) force
Only 26.4 lbs
60,000 PSI ductile iron
Pros
- Only 26.4 lbs while still carrying 5500 lb of clamping force
- Dual locking nuts on a 360-degree swivel base for rigid lockdown
- 60000 PSI ductile iron with a steel U-channel slide
- Best capability-to-weight balance in the 5-inch group
Cons
- Shallowest throat at 2-3/4 in and the smallest anvil in the group
- No V-jaws
- Fixed head with no rotation for angled work
The Forward 30505 solves a problem most 5-inch vises create: they are heavy. At 26.4 lbs it is the lightest 5-inch vise in this roundup, and it still delivers 5,500 lb of clamping force on a 60,000 PSI ductile iron body.
That is a better capability-to-weight balance than the other 5-inch models here, and it matters if you move your vise between benches or work in a small shop where a 33 lb vise is genuinely awkward.
Owners rate it as a strong, smooth-running vise with rigid swivel lockdown, and they single out the dual locking nuts as a step up from the single-screw bases used on cheaper vises. The 4.7-star average sits across 1,073 reviews.
The slide runs on a steel U-channel bar inside the ductile iron body, which is how a vise this light keeps its screw alignment. Two jaw sets are supplied: replaceable flat jaws and built-in pipe jaws covering 3/4 inch to 2 inch diameter.
Jaw width is 5 inches, the opening is 5 inches, and the throat depth is 2-3/4 inches. Overall dimensions are 14.4 by 6.3 by 6.5 inches, so it fits a bench with a modest front-to-back footprint.
Two dimensional limits are worth knowing. The throat is the shallowest of the 5-inch group here at 2-3/4 inches, so tall upright material sits far from the spindle line. And the anvil is 2.9 by 2.4 inches, the smallest in the roundup, which limits heavy flattening and shaping work.
There is no V-jaw set and no rotating head, so round material is worked in the pipe jaws and angled work means repositioning the piece rather than the vise.
Who the Forward 30505 suits best
Home metalworkers in a small shop, students, and anyone who has to move a vise around or mount it on a bench that cannot take 35 lbs. Ductile iron at this weight is unusual, and the 360-degree swivel base with dual locking nuts is a real step up from budget single-screw designs.
It is also a sensible first serious vise for someone who mostly clamps flat bar, does drilling and tapping, and fits pipe up to 2 inch.
Where the Forward 30505 falls short
Tall upright work and heavy forming are the two weak spots, because of the shallow throat and the small anvil. If your parts stand high above the jaw, you will feel that 2-3/4 inch gap every time.
It is also not the pick if you need V-jaws or a rotating head, so cross out the multi-jaw and angled-work categories when you compare.
12. Wilton 675U 5-1/2 Inch Utility Bench Vise: The Compact Heavy-Duty Pick
Wilton Utility Bench Vise, 5-1/2″ Jaw Width, 5″ Jaw Opening, 3-1/4″ Throat (Model 675U)
5-1/2 in jaw and 5 in opening
25.5 lbs
60,000 psi
360-degree swivel with dual lockdowns
Pros
- Only 25.5 lbs while offering a 5-1/2 in jaw and 3-1/4 in throat
- Lifetime warranty at a mid-range price
- Built-in pipe jaws with a dual lockdown swivel base
- Scratch-resistant powder coat finish
Cons
- Not machined in the USA
- 5 in opening limits long pipe versus the Yost ADI-6
- No rotating head
The Wilton 675U answers the bench space problem with real specs. It delivers a 5-1/2 inch jaw width, a 5 inch opening, and a 3-1/4 inch throat, and it does all of that at 25.5 lbs.
That throat is deeper than any 5-inch model in this roundup, and the weight is lower than most 6-inch vises. For a shop with a short bench, that combination is unusually hard to find.
Owners upgrading from budget vises describe a clear step up in build quality, and the compact footprint suits limited benches. The most common reservation is country of manufacture, with a few reviewers noting it is not machined in the USA and adjusting their rating for that reason.
The body combines cast iron and ductile iron and is rated at 60,000 psi tensile strength, which places it in the middle duty tier rather than the light gray iron class. The powder coat resists scratches, which matters on a bench where the vise gets knocked and dragged.
The jaws are replaceable hardened steel with serrated faces, and there are built-in pipe jaws for a range of pipe sizes. The swivel base rotates a full 360 degrees with dual lockdowns, so angled setup is available even though the head itself does not rotate.
Dimensions are 16.1 by 8.7 by 8.7 inches, and the lifetime warranty covers manufacturing defects. The practical limit is the 5 inch opening, which is narrower than the 7.875 inch on the Yost ADI-6 if you work with long pipe or full-length bar.
At 345 reviews this is the smallest owner-feedback base among the Wilton models here, so lean on the specification and the warranty rather than on consensus.
Who the Wilton 675U suits best
Home shops and garages where bench real estate is the limiting factor but duty class still matters. A 60,000 psi body, replaceable hardened jaws, dual lockdowns, and a lifetime warranty in 25.5 lbs is a combination you will not find often.
It is also a good bridge for someone moving up from a plastic-body budget vise who wants a brand with serviceable parts without taking on a 60 lb commitment.
Where the Wilton 675U falls short
It has no rotating head, so tall vertical clamping depends on the swivel base alone. And if buying American-made matters to you, this is not the Wilton to choose, since owners specifically flag the manufacturing origin.
For long pipe and bar, look at a wider-opening model. For tall vertical work, look at a rotating-head design.
How to Choose a Bench Vise for Metalworking
The right vise is mostly a function of material, size, and how often you will move it. Work through these factors in order and the shortlist narrows fast.
Vise duty rating by material
Material is the single strongest predictor of how a vise survives shop abuse. The PSI figures below are tensile strength ratings for the casting material, and they map directly to duty class.
Forged steel, around 75,000 PSI is the heavy duty tier. It resists impact best and is the traditional choice for machine shops and heavy fabrication.
Ductile iron, 60,000 to 65,000 PSI is the medium-heavy tier and the sweet spot for most metalworkers. It flexes slightly under shock instead of cracking, and it is what most of the vises in this roundup are built from.
Cast steel, 30,000 to 40,000 PSI is medium duty. It is strong in compression and brittle in shock, so it wants a lighter hammer.
Gray cast iron, 20,000 to 30,000 PSI is light duty. It is the traditional general-purpose material and it is what the Wilton 11106 and Yost 445 use. Fine for clamping, less fine for abuse.
One material worth knowing about is austempered ductile iron, rated at 130,000 PSI on the Yost ADI-6. It sits above everything else in this roundup and is the most expensive route to raw strength.
Jaw width, opening, and throat depth
These three numbers get confused constantly, so here is the short version. Jaw width is the size of the gripping surface and determines the widest flat material you can clamp. Jaw opening is how far the movable jaw travels, and it determines the longest round bar or pipe you can fit between the jaws.
Throat depth is the vertical distance from the spindle line down to the base, and it is the number most buyers ignore. A deep throat lets tall upright material sit close to the screw where the pull is strongest. The Yost 760-DI at 4.31 inches is the deepest here, and the Forward 30505 at 2-3/4 inches is the shallowest.
On sizing, a 4 inch vise is worth its weight for most home metalworkers, a 5 inch is the safe general choice, and 6 inch or larger earns its place when you handle large plate, long bar, or big pipe. A 6 inch vise is bulky, heavy, and often under-used in a home shop, so do not buy one because it sounds more professional.
Swivel base and lockdown security
A fixed base is cheaper and rigid but forces you to angle the workpiece. A swivel base lets you bring the work to the jaws, and on metalwork that is often the difference between a good setup and a bad one.
Pay attention to how it locks. Vises with two lockdown screws or nuts resist the base-cracking failure that shows up on cheaper single-screw models. The VEVOR uses two screws, the Forward 30505 uses dual locking nuts, and the Yost ADI-6 uses a geared interlocking base. Once the work is clamped, the base should not move, and neither will the workpiece.
Round channel versus flat channel spindles
The screw runs inside a channel cut into the body, and the shape of that channel changes how the vise wears. A round channel lets a rear-anchored nut pull in a straight line, which spreads pressure evenly and lasts longer. A flat channel with a centre-anchored nut is the budget layout, and it is more prone to binding over time.
The mechanism also matters for maintenance. Enclosed spindles keep dirt out of the thread and hold their grease, so the screw stays smooth. Exposed acme rods collect grit, and once the grease is contaminated the action gets rough, which is the single most common complaint about older vises.
Jaw caps and soft jaws for metal
Serrated hardened steel jaws grip bare metal and mark it. That is correct for rough stock and wrong for anything finished. Replaceable jaws are close to non-negotiable for metalworkers, because a vise you cannot re-jaw is a vise you have to use carefully forever.
On jaw cap material: serrated steel for grip, aluminium for aluminium and soft alloys, copper for marking without damaging, magnetic pads for quick changes on lighter work, and fibre or plastic for gentle holding. One warning carries over from shop practice: rubber and fibre caps melt or degrade near angle-grinder heat and welding sparks, so keep those caps for cold work.
Mounting options and bench weight
Bolt-down is the only mounting method we would trust for metalworking. Bolted to a solid wood top or a steel stand, a vise stops dead when the work fights back.
Check two things before you order: the bench weight and the footprint. A 75.8 lb vise will split a particleboard top, and the Yost 760-DI and Wilton 650P both need a reinforced surface or a stand. Clamp-on vises and portable clamps are fine for occasional work away from the bench, but they are not substitutes for a mounted vise under real load.
Also buy your own grade 8 mounting bolts. Supplied hardware is a repeated complaint on several models in this roundup, and short bolts will let a vise rock under clamping load.
Maintenance and break-in
A bench vise lasts a lifetime if you treat the screw like a bearing. Grease the spindle and the swivel interface when the vise is new, and again every year after that. Re-greasing the base joint is what prevents the seizing problem owners report on unbearered swivel designs.
Check the dual lockdowns periodically and tighten them if they have relaxed. Inspect the jaw inserts for rounding and replace them rather than working around a worn face. Keep the anvil area clean of scale, and wipe grinding dust off the channel so it does not work into the thread.
Bench Vise Safety Rules for Metalworking
Never clamp a pressure vessel or a sealed container in a bench vise. The stored energy in a pressurised part has no business being held by a screw, and the failure mode is violent.
Do not overtighten thin, soft, or already-hardened parts. A strong vise becomes a liability when the workpiece deforms or cracks, and forcing a hardened part to fit usually destroys the part, not the vise. Tighten until the work does not move, then stop.
Keep rubber and fibre jaw caps away from hot work. Angle grinder sparks and welding spatter will melt them, and a melted cap cannot be counted on to protect the part underneath.
Use soft jaws on finished surfaces, and never let plated or chromed material touch serrated steel. Always clamp with the work supported as close to the jaw as possible so the pull does not lever the part, and wear eye protection whenever you work in a vise, because a released fastener travels.
Frequently Asked Questions
What is the best brand of bench vise for mechanics?
Wilton and Yost are the two brands that dominate listings for mechanics. Wilton is the stronger choice for general repair work because the general-purpose models carry a lifetime warranty and use replaceable hardened serrated jaw inserts. Yost is the better value for heavy fabrication, with the ADI-6 rated at 130,000 PSI austempered ductile iron and the 760-DI offering the deepest throat at 4.31 inches. For a mechanic on a budget, the Yost 445 covers pipe and flat work at a low cost.
Who makes the best bench vices?
The shortlist of brands worth considering is Wilton, Yost, Kurt, Fireball Tool, Starrett, Heuer, Capri Tools, and TEKTON. Wilton leads on warranty and serviceability, Yost on material strength and pipe capacity, and Starrett on machinist-grade precision. Fireball Tool and Kurt cover the premium forged and large-capacity end. Capri Tools and TEKTON cover the value tier, and Heuer covers the heritage and one-piece forged end.
What is the strongest bench vise available?
Strength comes down to the casting material. Forged steel at about 75,000 PSI is the traditional heavy duty tier, and austempered ductile iron at 130,000 PSI is the highest rating available, used on the Yost ADI-6. Standard ductile iron at 60,000 to 65,000 PSI covers most professional work, while cast steel at 30,000 to 40,000 PSI and gray iron at 20,000 to 30,000 PSI are lower duty. Clamping force runs from about 4,496 lb to 9,900 lb in this roundup.
What is the best bench vise made in the USA?
Wilton is the most established USA-made bench vise brand, and its general-purpose 6 inch model carries a lifetime manufacturer warranty with replaceable hardened jaw inserts and a published exploded parts diagram. Starrett is the other strong American answer, particularly if you want machinist-grade precision. Yost is a respected American brand as well, though individual models vary in where the castings are finished, so check the specific listing.
What is the best American-made bench vise?
If brand pedigree is your priority, Wilton is the pick, with a manufacturing heritage stretching back generations and a lifetime warranty on the 6 inch general-purpose model. If you want American-made pedigree plus the strongest material on the market, the Yost ADI-6 at 130,000 PSI austempered ductile iron is the harder-built option, though it carries a limited lifetime warranty on the castings rather than on every part.
Does Yost make good vises?
Yes. Yost is a respected brand with a long record in bench vises, and the results here are consistent. The 445 works well as a light-duty bench and pipe combination, the 760-DI is the deepest-throat multi-jaw vise in this roundup at 4.31 inches with body and head rotation, and the ADI-6 carries the highest material rating at 130,000 PSI with a limited lifetime warranty on the castings.
Final Verdict: Which Bench Vise Should You Buy in 2026
The Forward DT08125A is our choice as the best bench vise for metalworking in 2026. Nothing else in this roundup combines 60,000 PSI ductile iron, three replaceable jaw sets including V-jaws, a rotating head, and a 4.8-star average across 1,950 reviews in a package that still fits a normal home bench.
Beyond that, the choice is specific. The VEVOR 6-inch is the best bench vise for a home shop budget, giving you a 6 inch jaw, a 3.5 inch throat, and magnetic soft jaw pads for less than most heritage 5-inch vises. The Wilton 11106 is the one to buy if you want a lifetime warranty and a name your mechanic peers already recognise.
For pipe and long material, the Yost 760-DI holds up to 4.33 inch pipe with a 4.31 inch throat and rotates in two planes. For maximum material strength and the widest opening, the Yost ADI-6 runs 130,000 PSI with a 7.875 inch opening. For large indexed workholding, the Wilton 650P turns its head in 30-degree steps.
Whatever you pick, bolt it to a bench that can carry it, buy your own grade 8 hardware, and grease the spindle on day one. That habit is what turns a good vise into a lifetime tool.
