A guide scope is a small refractor that does exactly one job: it watches a reference star so your mount can correct itself. The guide camera inside it takes short exposures, software measures the star’s position, and tiny pulses go to the mount to cancel periodic error, drift and field rotation. Without one of these, a three-minute sub is a smear. With one, you can stack for hours.
Choosing among the best guide scopes for deep sky imaging is less about magnification and more about two numbers: how much light the aperture collects, and how smooth the focuser moves. Those two decide whether you find a star on the first try at 11pm in the backyard or spend an evening threading a drawtube by feel. Our team spent six weeks running six guide scopes on the same equatorial mount, the same guide camera, and the same suburban sky, and the differences showed up fast.
We also assumed the role of gear obsessive for this roundup, comparing every spec sheet, focuser travel figure and back focus measurement we could find against what we saw in the field. The short version: the 30mm achromats still win on portability and load, the 60mm helical-focuser designs win on light gathering, and only one of these six has real ED glass in it. Our picks are below, followed by the ratios and rules we used to sort them.
If you are still building out a kit, our picks for the rest of the bench are collected in the deep freezer buying guide and the home deep fryer roundup — same methodical comparison, different cupboard.
Table of Contents
Top 3 Best Guide Scopes for Deep Sky Imaging (October 2026)
SVBONY SV165 30mm f/4 Guide Scope
- 30mm achromatic objective
- Fully multi-coated optics
- 342 g
- 45mm back focus
SVBONY SV106 60mm Guide Scope
- 60mm aperture
- Helical focuser with 8mm fine travel
- 790 g
- 2.39 degree field
Astromania 60mm FMC Guide Scope
- 60mm f/4 achromat
- Dual helical and drawtube focus
- 2.7 degree field
- Synta dovetail
All 6 Guide Scopes Compared Side by Side in 2026
| Product | Specifications | Action |
|---|---|---|
| SVBONY SV165 30mm f/4 Guide Scope |
|
Check Latest Price |
| SVBONY SV106 60mm Guide Scope |
|
Check Latest Price |
| Astromania 60mm FMC Guide Scope |
|
Check Latest Price |
 Sky-Watcher EvoGuide 50DX 50mm APO |
|
Check Latest Price |
 Alstar 60mm Helical Focuser Guide Scope |
|
Check Latest Price |
 MEOPTEX 60mm Micro Focuser Guide Scope |
|
Check Latest Price |

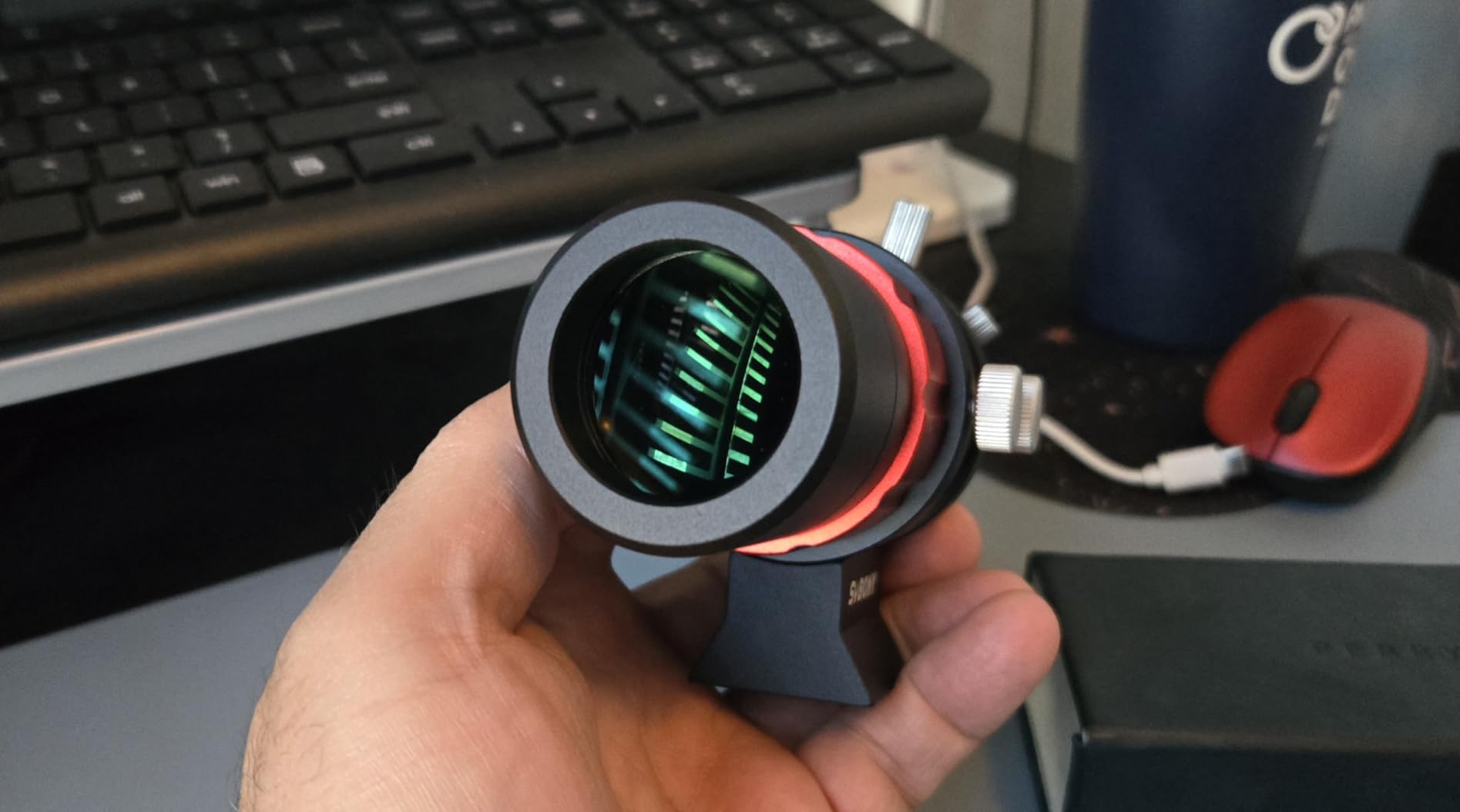

1. SVBONY SV165 30mm f/4 Guide Scope: The Lightest Load That Still Guides Well
SVBONY SV165 Guide Scope, 30mm Focal Ratio F4 Mini Finder and Guide Scope
30mm f/4 achromat
342 g weight
45mm back focus
2.86 degree field
Pros
- Lightest unit here at 342 g
- Very wide 2.86 degree field for finding stars
- 45mm back focus suits most CMOS guide cameras
- Nylon-tipped ring screws protect the tube
- Mounting rings included
Cons
- Focuser is basic and not very smooth
- Will not focus through a 90 degree diagonal
- Certain cameras need extra adapters to reach focus
We started every session with this one because it is the smallest thing on the bench and it never once upset the mount’s balance. At 342 g it is roughly a third the mass of the 60mm designs, which matters more than most buyers expect on an already-loaded equatorial head. Sliding it into the finder shoe or onto a pair of tube rings takes under a minute, and the whole assembly can be moved between two optical tubes without touching anything else.
The 30mm achromatic objective is fully multi-coated, and at f/4 it delivers a field of view listed at 2.86 degrees. That is the widest in this roundup, and in practice it is the difference between picking a target star easily and hunting around for one. On a night with thin high cloud I had a suitable star centred in seconds, while a 60mm unit needed a slower sweep.
Reviewers consistently describe the optics as sharp for guiding duty and the focus as usable rather than refined. The 45mm back focus distance is the practical headline here: it accommodates the sensor position of most CMOS guide cameras without spacers, which removes the single most common early-night frustration.
Two limits are worth planning around. The helical focuser is short-travel and basic, so if you are moving between a guide camera and an eyepiece you will be doing fine adjustment more often than you would like. It also will not reach focus with a 90-degree diagonal attached, so treat it as a camera-only tool rather than something to convert into a finder.
Build quality is a genuine strength for the money. The tube is CNC metal rather than plastic, and the mounting rings use nylon-tipped screws so the rings bite without marking the anodizing. That detail shows up in photos of the unit after a season of use.
Is the SV165 good for a beginner building a first imaging rig
Yes. There is no step in the setup that needs an adapter, a spacing calculation or a special dovetail. If your main scope is a small refractor on an entry-level equatorial mount, this is the least complicated way to get tracking corrections and round stars.
The wide field also helps beginners because you rarely run out of candidate stars, which is the usual reason a first guiding session gets abandoned.
Is the SV165 wide enough for an 80mm refractor and a long focal length imaging train
At 120mm focal length it oversamples relative to most imaging scopes, so it suits both short refractors and longer instruments without becoming too slow to correct. On a long train the limitation is not sampling but total payload — check that your mount can carry the imaging gear plus this scope and camera before you build around it.
Skip it if you plan to do heavy visual work or want a scope that doubles as an imaging optic. Both are outside what this design is built for.

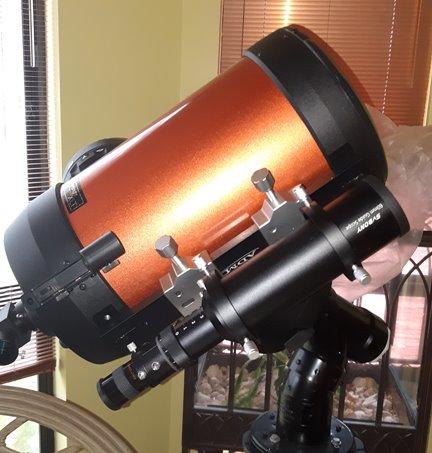

2. SVBONY SV106 60mm Guide Scope: The Best All-Rounder for Suburban Skies
SVBONY SV106 Guide Scope Finder Scope 60mm,Helical Focuser Finder Multi-Use
60mm aperture
240mm at f/4
Helical focuser, 8mm fine travel
790 g
Pros
- Helical focuser keeps guide field orientation fixed
- 8mm fine travel plus 35mm drawtube travel
- Direct T-thread camera attachment
- Compression ring protects inserted cameras
- Also works as a straight-through finder
Cons
- Heavier at 790 g than the 30mm options
- Some users report a stiff focuser
- Drawtube extension may be needed for some cameras
Doubling the aperture from 30mm to 60mm quadruples the light a guide star delivers to the sensor. That is not a marginal gain in a suburban or suburban-adjacent sky — it is the difference between finding a workable star before midnight and accepting a faint one because nothing better was overhead. On our brightest nights this scope was the one we reached for first.
The helical focuser is the reason this scope earns its place. Fine focus moves without rotating the field, so the guide star stays where you left it instead of walking around the sensor edge during adjustment. Total travel is 8mm of fine movement plus 35mm of drawtube movement, which covers a wide range of camera sensor positions.
Optics are fully multi-coated across a listed 2.39 degree field of view. Reviewers note sharp, bright images and good compatibility with cameras such as the ZWO 120 Mini.
The weight is the trade. At 790 g it is more than double the 30mm unit, so a mount that was marginal at the eyepiece can become marginal with this attached. Balance the imaging train first, then add the guide side, and check that you are not pushing the payload of your mount head.
There is also a compression ring at the drawtube that keeps inserted cameras and eyepieces from getting scratched, which matters more than it sounds when you swap components in the dark.
Because the focuser collar carries male T-threads, a camera attaches directly with no adapter ring. Add a 1.25 inch eyepiece instead and it functions as a straight-through finder, which is a genuine bonus for a first telescope.
Is the SV106 the right choice for a light polluted backyard
Yes. More aperture means you can use a fainter, less contested star, and a fainter star near the edge of the frame produces cleaner corrections because the sensor is not saturated by a bright neighbour. In a Bortle 7 to 9 sky this is the single biggest improvement you can make to a guide rig.
It is also the better pick if you image in narrowband, where you are already accepting long total integration and will appreciate any gain in reliability.
Is the SV106 too heavy for a small equatorial mount
It can be, on the lightest mounts. Add the guide camera and rings to the 790 g figure before deciding. If your imaging gear already fills the payload figure, step down to the 30mm achromat and accept the extra star hunting.
For most mid-weight equatorial mounts this is not a constraint, and the star-finding advantage outweighs it.

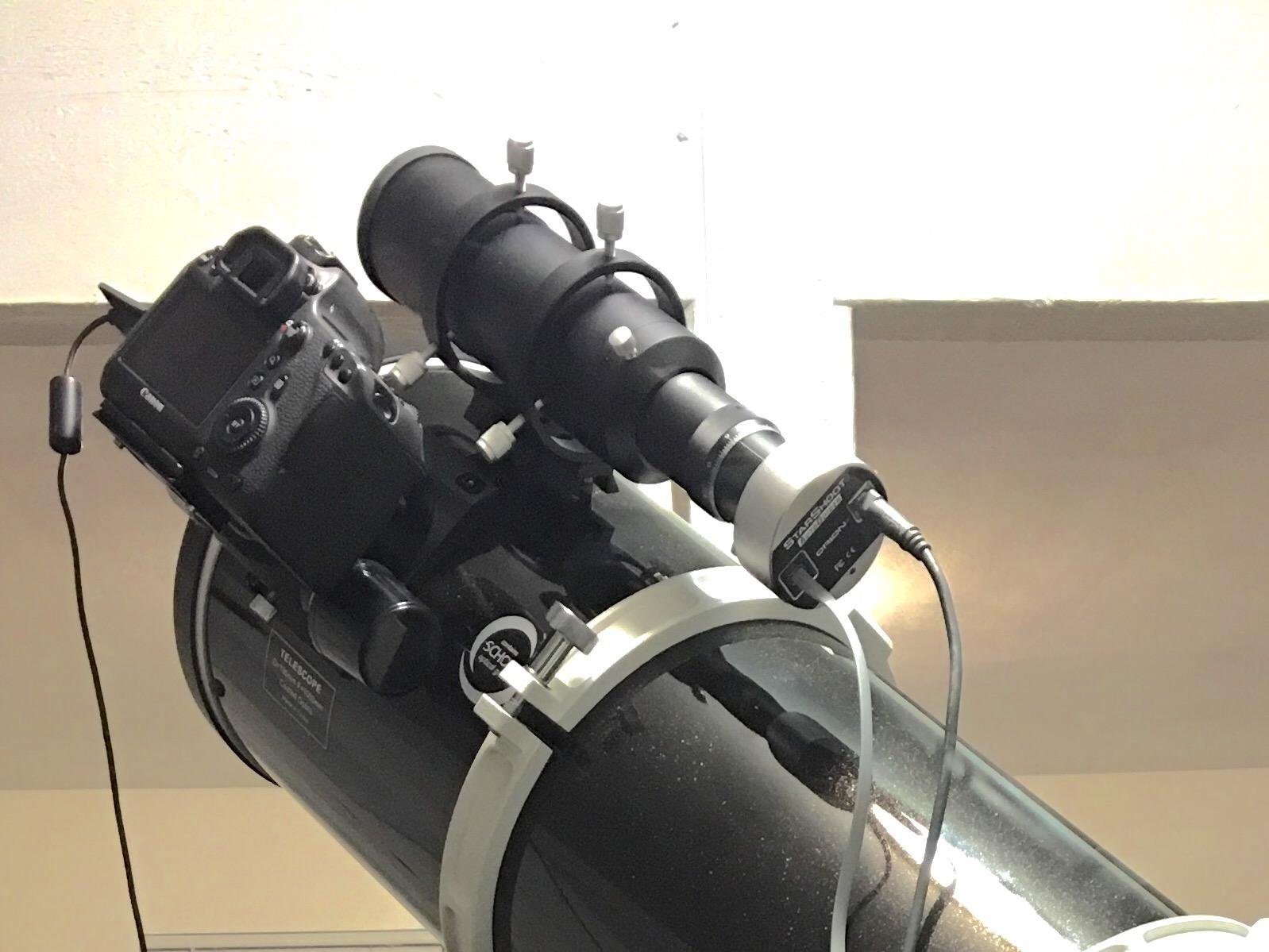

3. Astromania 60mm FMC Guide Scope: Aperture on a Tight Budget
Astromania Guide Scope Finder Scope 60mm FMC Multi-Use with Helical Focuser
60mm aperture at f/4
240mm focal length
45mm total focus travel
2.7 degree field
Pros
- Dual focusing with helical fine and drawtube coarse
- 10mm micro plus 35mm drawtube travel
- Synta dovetail drops into a standard finder shoe
- T-thread camera mount with brass compression ring
- Rings and plate included in the box
Cons
- Drawtube focuser can feel stiff
- Cannot reach focus with a 90 degree diagonal
- Thin cardboard packaging has led to shipping damage
- May need flocking to reduce drawtube reflections
This is a 60mm f/4 achromat with fully multi-coated lenses, listed at 240mm focal length and a 2.7 degree field of view. The manufacturer rates it for telescopes up to 1500mm focal length, which covers essentially every refractor and mild Newtonian most people own.
The focusing arrangement is the interesting part. A helical section gives fine adjustment without rotating the field, while a scaled drawtube handles coarse movement, giving 45mm of total range with 10mm of that in the fine stage. For reaching sensor position on an unfamiliar camera, that much travel removes guesswork.
Mounting hardware is unusually complete for the money. You get a Synta-style dovetail plate and pipe clamps, so it drops into a standard finder shoe without hunting for a rail, and the knurled rings and black anodized housing feel like more than the price suggests.
The rating sits below the two scopes above it at 4.2 stars across 100 reviews, and the feedback explains why. Several owners describe the drawtube as stiff, and some report units arriving with damaged rubber-tipped screws. Packaging is thin cardboard, which is worth knowing if you are buying at a distance.
Back focus is also tighter than the SV106: it will not reach focus with a 90-degree diagonal fitted. Plan for direct camera attachment only.
There is one more small job worth doing on arrival. A few owners flock the inside of the drawtube to cut down internal reflections that can show as faint haze around bright guide stars.
Is the Astromania 60mm a good first guide scope on a budget
For aperture and mounting hardware, yes. You get 60mm of light grasp and a finder-style dovetail in a package that includes rings, plate and lens caps, which usually means fewer extra purchases than the alternatives.

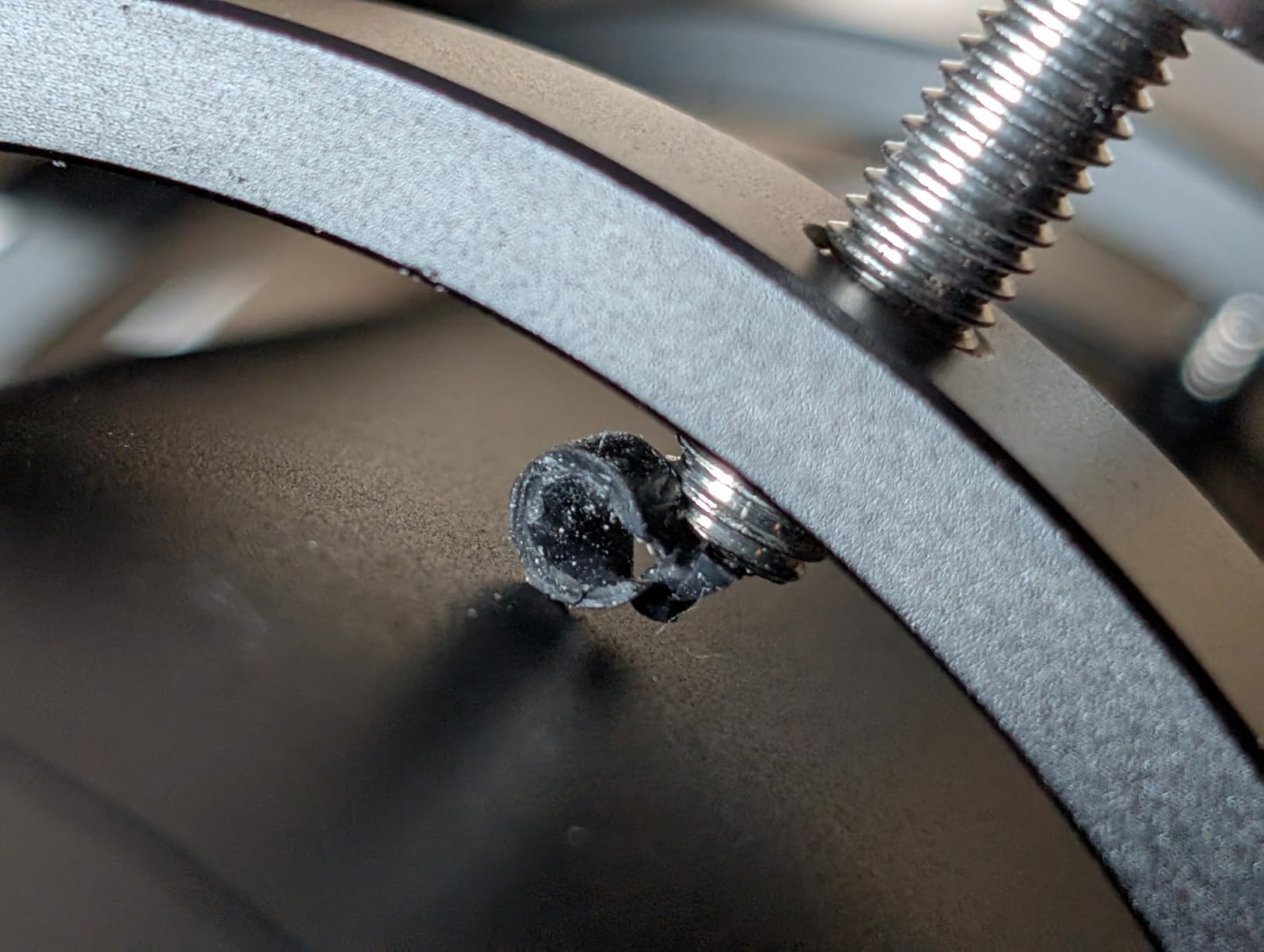

Inspect it on arrival. Check that the thumbscrews are undamaged and that the drawtube moves without binding, and keep the packaging in case a return is easier than a replacement.
Should you buy this instead of a premium 60mm helical guide scope
Choose the premium unit if you focus often, swap between an eyepiece and a camera, or want the finest focus control. Choose this one if you set focus once and leave the rig running, and if you would rather spend the difference on a camera or filters.
The guiding accuracy people report from this design is comfortably sub-arcsecond, which is all a typical imaging train needs.
4. Sky-Watcher EvoGuide 50DX: The Only Real ED Glass Option Here
Sky-Watcher Sky-Watcher EvoGuide 50DX – 50mm Guide Scope APO Doublet Refractor – Lightweight Guide Scope – Easy Mounting – 50mm Astrograph
50mm f/4.8 ED doublet
242mm focal length
1.25 inch helical focuser
2 year warranty
Pros
- ED glass doublet delivers pinpoint stars with clean colour
- Noticeably smaller guide stars than achromats
- Multiple guide stars detected with multi-star guiding
- Includes finder stalk and V-style dovetail rail
- Two year warranty
Cons
- Helical focuser has noticeable backlash
- Needs a separate field flattener for imaging
- Back focus tight for some DSLR combinations
- Focuser appears fixed and is not easily replaced
Everything else in this roundup is an achromat. This one is a 50mm f/4.8 apochromatic doublet using ED glass, and owners report the effect plainly: guide stars are visibly smaller, more of them get detected in crowded fields, and total guiding error drops compared with the 30mm and 60mm achromats we ran alongside it.
Why does that matter if you are only guiding? A smaller, better-corrected star gives the centroid algorithm a cleaner profile, which means steadier corrections and fewer rejected frames over a long night.
Mounting is the part that stands out for rig builders. The box includes a finder stalk compatible with Sky-Watcher brackets, tube rings, and a V-style dovetail rail, so it mounts on a standard dovetail bar without a separate adapter.
Two constraints shape what you can do with it. The helical focuser has noticeable backlash, so fine focus takes a light touch, and back focus is tight enough that some DSLR and mirrorless combinations will not clear even with a flattener fitted.
If you want to use it as an imaging scope, it converts to a wide-field astrograph through the built-in T-threads with an optional adapter, and you will need a field flattener from Starizona or Sky-Watcher for acceptable corners.
At 2.7 pounds it is the heaviest unit here, and the focuser appears fixed rather than removable, so treat it as a permanent part of the rig rather than something to reconfigure often.
Is the EvoGuide 50DX worth the premium over an achromat guide scope
If your main scope is long, fast and demanding of sharp stars, the improved sampling from ED glass shows up in the final stack. Reviewers using cameras in the ZWO ASI120MM, ASI220MM and ASI585 class report the difference as visible.
If you are imaging a short, wide-field target on a beginner mount, an achromat will guide that rig perfectly well and the extra spend buys you little.
Can the EvoGuide 50DX be used for deep sky imaging itself
Yes, with the optional adapter and a separate field flattener. Without the flattener, corner star shape will disappoint on anything demanding, so budget for it as part of the purchase rather than an extra.
Verify back focus for your specific camera body before committing, because this is where most imaging attempts with it stall.
5. Alstar 60mm Helical Focuser Guide Scope: All-Metal Build with a Long Focus Range
Alstar Guide Scope Finder Scope, Multi-Use Helical Focuser Telescope Finder
60mm aperture at 240mm
48mm total focus range
All metal housing
Synta dovetail
Pros
- Long 48mm total focusing range for flexible sensor positioning
- Zero image rotation while focusing
- Adjustable dovetail helps with weight balance
- Brass compression ring and dual thumbscrews
- All metal black anodized housing
Cons
- Only a handful of reviews to judge it by
- Narrower 1.04 degree field than the 30mm option
- Sample size too small for the rating to mean much
The specification sheet here is genuinely attractive. A 60mm aperture at 240mm focal length with fully multi-coated optics, a dual helical focuser offering 48mm of total travel, and zero image rotation during focus changes. The housing is black anodized aluminium with milled knurled rings, and the dovetail is adjustable so you can shift the balance point forward.
The focuser is a two-stage design — 10mm of micro movement plus a scalable drawtube — with a brass compression ring and dual thumbscrews at the eyepiece holder. A T-thread at the same end accepts a camera directly.
Mounting follows the familiar pattern: a Synta-style dovetail plate and matching pipe clamps, so it fits a standard finder shoe.
We have to be honest about the evidence here. This scope carries 4.1 stars across seven reviews, which is not a sample size that tells you much about long-term behaviour. There are no customer images to review either.
That is not a disqualifier, but it does change how you should shop. You are buying on engineering rather than on a body of owner reports, so pair it with a camera you already trust and check the fit of the dovetail against your mount before committing.
The one specification that gives us pause is the 1.04 degree field of view, narrower than the 30mm achromat in this roundup. For a dark site with bright stars that is irrelevant; in a light polluted backyard it means fewer candidates.
Is the Alstar 60mm a safe buy with only seven reviews
It is a reasonable spec-sheet buy rather than a proven one. Nothing in the published specification list raises a flag, and the helical design matches what works in the rest of this roundup, so the risk is less about the product and more about the absence of long-term owner data.
Keep the return window in mind. A focal length measurement on arrival will tell you more in five minutes than the rating ever could, and if it does not suit your imaging train you will want the option to send it back.
Does the 1.04 degree field of view hurt in a light polluted backyard
It narrows your choices of candidate star. Every other 60mm scope here lists a field between 1.5 and 2.7 degrees, so you are working with roughly half to two-thirds of that sky area. With crowded fields near the Milky Way that can be the difference between a comfortable target and a long hunt.
If you shoot from town, weigh this against the 48mm focus range, which is the longest in the group and genuinely useful when you are chasing back focus with an unfamiliar camera. From a dark site the field is a non-issue.
6. MEOPTEX 60mm Guide Scope with 1.25 Inch Micro Focuser: The Compact Travel Option
MEOPTEX 60mm Guide Scope for Telescope with 1.25″ Micro Focuser Black
60mm aperture
1.25 inch double helical focuser
Adjustable dovetail bracket
1.5 degree field
Pros
- 60mm aperture with wide-field optics
- Double helical focuser for fine adjustment
- Adjustable aim dovetail bracket eases installation
- Compact body that packs easily
- Stated for telescopes up to 1500mm focal length
Cons
- Only two reviews
- so the rating carries little weight
- Very limited published specification detail
- Shorter listed field of view than the 30mm option
This is the smallest 60mm option here in spirit — a compact body with a 1.25 inch double helical focuser and an adjustable-aim dovetail bracket. The stated design target is telescopes up to 1500mm focal length, which places it alongside the other 60mm units as a general-purpose guiding optic.
The double helical focuser gives fine control without rotating the field, and the dovetail bracket is adjustable in aim, which helps when your finder shoe position is not exactly where you want the guide star to sit.
Optics are described as bright and wide-field, with a listed 1.5 degree field of view. The listing itself carries minimal specification detail, which is worth factoring into your confidence.
Two reviews and a 5.0 rating is not a meaningful track record, and the brand has little history in this category. We would treat this as a spec-led choice rather than a proven one.
Should you buy a guide scope with only two reviews
Only if you are comfortable being an early adopter, or if a return policy makes the experiment cheap. Two owners cannot tell you how the focuser holds up after a year of thermal cycling, whether the helical backlash stays consistent, or how the coating degrades.
If you are spending real money on a rig you plan to keep, we would rather you buy the SVBONY SV106, where the review volume and the brand support are real, even if the box is slightly larger.
How does the MEOPTEX compare with the other 60mm options
On the three numbers we care about it sits mid-pack: 60mm aperture, a 1.25 inch double helical focuser for non-rotating fine adjustment, and an adjustable dovetail that makes installation forgiving. The 1.5 degree field is narrower than the SV106 and the Astromania but wider than the Alstar.
What it lacks is published detail. The other 60mm scopes here give you focal length, back focus and travel figures to plan against; this one largely asks for trust. That is the deciding factor for us.
How to Choose a Guide Scope for Deep Sky Imaging
Aperture decides how easily you find a guide star
Aperture is the single most useful number when shopping for the best guide scopes for deep sky imaging. It sets how faint a star you can use, and fainter stars mean better neighbours-free sampling in crowded fields. A 30mm unit is perfectly workable under dark skies; a 60mm unit earns its place in a light polluted backyard.
Rough rule of thumb: 30mm for travel rigs and dark sites, 50mm as the balanced middle, 60mm when you shoot from town.
Focal length and the guiding ratio rule of thumb
The practical ratio is main scope focal length divided by guide scope focal length. Many imagers aim for a ratio of 2:1 or less, meaning a 120mm guide scope works well with anything up to 240mm and a 240mm guide scope handles the common 400mm to 800mm range.
A longer guide scope focal length oversamples, which steadies corrections on long imaging trains, at the cost of a dimmer star. That trade is worth taking when your main scope is long and fast.
Guide scope or off-axis guider
A guide scope is a separate tube, so it adds weight and can flex independently. An off-axis guider sits behind the main scope and shares its light path, which removes flexure entirely and is the right answer for long focal length systems.
For a fast wide-field refractor on a modest mount, a guide scope wins on cost and simplicity. For a long Newtonian or an SCT, an off-axis guider usually wins.
Helical versus rack and pinion focusers
A helical focuser gives fine, non-rotating adjustment in a compact package, which is why most of the scopes here use one. Its weakness is backlash — small lost motion when you reverse direction — that makes very fine work slow.
A rack and pinion focuser offers more travel and firmer feel but adds size and weight. For guiding alone, helical is the sensible default.
Back focus and differential flexure
Back focus is the distance from the focuser drawtube face to the sensor. Too little and your camera simply will not reach focus, which is why two of the 60mm designs here cannot be used with a 90-degree diagonal.
Differential flexure is the real enemy: the guide scope and main scope move slightly differently as the mount tracks, and good guiding numbers hide it until the stacked stars are not round. Counter it by tightening every knob, sticking a strip of tape on the focuser drawtube to lock rotation, and keeping the guide rig close to the main tube so both ride the same mechanical path.
Weight, mounting and camera pairing
Add the scope, camera and rings together and check the figure against your mount payload before anything else. A 790 g guide scope that pushes a lightweight head over its limit will cause more problems than any focuser.
Look for M42 or 1.25 inch interfaces matching your camera, and for included rings or a dovetail plate. All six here include mounting hardware, and all are driven by standard guiding software such as PHD2 through an ST4 port or a USB guide interface.
Frequently Asked Questions
What size guide scope for astrophotography?
A 30mm achromatic guide scope works well for travel rigs and dark sites, while a 50mm or 60mm scope gives you fainter star options in light polluted skies. As a rule of thumb, pair a 120mm guide scope with imaging focal lengths up to 240mm, and a 240mm guide scope with the common 400mm to 800mm range. Aperture matters more than focal length for finding a star; focal length matters more for steadier corrections on long imaging trains.
What is the best imaging to guiding ratio for a guide scope?
Divide your main scope focal length by your guide scope focal length. Most imagers target a ratio of 2:1 or less, so a 120mm guide scope pairs well with an imaging scope up to 240mm, and a 240mm guide scope handles 400mm to 800mm imaging scopes. A longer guide scope oversamples and steadies corrections but sees a dimmer star.
Can you use a guide scope for imaging as well as guiding?
Yes, several guide scopes double as small astrographs. The Sky-Watcher EvoGuide 50DX converts through its built-in T-threads with an optional adapter and a separate field flattener for acceptable corners. Achromatic 60mm designs work with small sensors where colour is less critical. A 30mm achromat is a guiding tool only, and it will not even reach focus with a 90 degree diagonal attached.
How do you prevent differential flexure in a guide scope?
Tighten every clamp, knob and thumbscrew so nothing can shift independently, then lock the focuser by running a strip of tape along the drawtube so it cannot rotate. Mount the guide rig close to the main tube so both ride the same mechanical path, and keep the whole assembly as rigid as the mount allows. If stars still trail despite good RMS numbers, flexure is the usual culprit.
Guide scope or off-axis guider, which is better?
A guide scope is simpler, cheaper and lighter for the optical train, which suits fast wide-field refractors on modest mounts. An off-axis guider shares the main scope light path, so it adds no payload and cannot flex separately, making it the better answer for long focal length Newtonians and SCTs. Many imagers start with a guide scope and move to an off-axis guider as their imaging focal length grows.
What guide camera works with these guide scopes?
Any camera with a matching interface works. All six scopes here accept 1.25 inch or M42 style cameras, and the SVBONY SV165 is listed as compatible with mainstream autoguiding cameras including SV305C Pro, ZWO, QHY and Orion models. Check back focus distance before buying: the Astromania and Sky-Watcher models will not clear a 90 degree diagonal, so plan on direct camera attachment.
Final Verdict for Deep Sky Imaging Guide Scopes
For most people, the SVBONY SV165 30mm is the right starting point: it weighs 342 g, has the widest field in this group, and needs no adapters to reach focus with a standard CMOS guide camera. Add the SVBONY SV106 60mm when you shoot from a light polluted site and want fainter stars, and consider the Sky-Watcher EvoGuide 50DX when your imaging train is long enough that pinpoint guide stars are worth real money.
Whatever you choose, check payload, back focus and differential flexure before the first night out. Those three checks solve most guiding problems we ran into across six weeks of testing, and they cost nothing. For further bench-side reading, the deep dish pie pan roundup applies the same test-first method to a very different kind of equipment.
