A two-stage air compressor squeezes air in two passes instead of one, which lets it deliver steady pressure at high airflow without the heat and noise of a single-stage pump. That is exactly what an auto shop needs, because impact wrenches, sanders, a brake lathe and a spray booth all pull air at the same time. If you are shopping for the best two stage air compressors for auto shops, the number that decides the fit is CFM at 175 PSI, not the CFM figure printed at 90 PSI on the box.
Over six weeks we went through twelve of the strongest two-stage units sold for shop duty, from 5 HP models in 60 and 80 gallon tanks up to 7.5 HP machines rated above 24 CFM. We cross-checked every airflow figure against the published pressure it was measured at, looked at pump duty ratings and bearing life, and read the owner reviews for the things a spec sheet never tells you, like whether the unit walks across the floor or whether the drain fitting weeps.
The short version: almost every shop under about four run hours a day is better served by a well-sized 5 HP or 7.5 HP two-stage piston machine on an 80 gallon vertical tank. You are buying a receiver and a pump that holds its rated pressure when two tools fire at once, and you are buying parts you can still get in ten years. Everything you need to size that decision is below, along with our picks for the twelve best two stage air compressors for auto shops.
If your shop is still working from a home-grade single-stage unit, start with our home garage compressor guide to see where you are in the upgrade ladder.
Table of Contents
Top 3 Picks for Best Two Stage Air Compressors for Auto Shops (October 2026)
Three units stand out from the group. The Campbell Hausfeld XC802100 has the largest body of verified owner feedback of anything we looked at, the Ingersoll Rand 2340L5-V is the cast-iron workhorse shops buy when they want a machine that outlasts the building, and the Campbell Hausfeld HS5180 puts more airflow on the dollars than anything else at the entry end.
Campbell Hausfeld XC802100
- 11.3 SCFM at 175 PSI
- 80 gallon vertical ASME tank
- 5 HP 230V single phase
- Cast-iron oil-lubricated pump
Ingersoll Rand 2340L5-V
- 14.3 CFM at 90 PSI
- 60 gallon vertical tank
- 100 percent continuous duty cast iron
- 230V single phase
Campbell Hausfeld HS5180
- 13.7 CFM at 175 PSI
- 80 gallon vertical ASME tank
- 10000 hour pump rating
- Oil sight glass and belt guard
Best Two Stage Air Compressors for Auto Shops in 2026
All twelve machines below are two-stage, most are cast-iron oil-lubricated, and eleven of the twelve sit on an 80 gallon vertical receiver. Airflow is quoted at 175 PSI wherever the manufacturer publishes it there, because that is the pressure your impact wrenches and bead-seating work actually see.
| Product | Specifications | Action |
|---|---|---|
| Campbell Hausfeld XC802100 80 Gallon 5 HP |
|
Check Latest Price |
| Ingersoll Rand 2340L5-V 60 Gallon 5 HP |
|
Check Latest Price |
| Campbell Hausfeld HS5180 80 Gallon 5 HP |
|
Check Latest Price |
 Campbell Hausfeld TF211201AJ 80 Gallon 7.5 HP |
|
Check Latest Price |
 EMAX EHI07V080Y1 80 Gallon 7.5 HP |
|
Check Latest Price |
 Quincy QT 271CS80VCB 80 Gallon 7.5 HP |
|
Check Latest Price |
 Ingersoll Rand COMP AIR 80 Gallon 7.5 HP |
|
Check Latest Price |
 BelAire 318VL 80 Gallon 7.5 HP |
|
Check Latest Price |
 EMAX ESP05V080I1 E350 80 Gallon 5 HP |
|
Check Latest Price |
 Industrial Air IV7518075 80 Gallon 7.5 HP |
|
Check Latest Price |
 BelAire 318VN 80 Gallon 5 HP |
|
Check Latest Price |
 ATLAS MP-6580V2 AF6 80 Gallon 5 HP |
|
Check Latest Price |
How We Picked These Compressors
We rated every unit on five things, in this order: airflow at working pressure, pump construction and bearing life, duty rating, the electrical service it needs, and how easy it is to get parts and warranty support in your region.
Airflow quoted at 175 PSI counts for more than airflow quoted at 90 PSI, because that is the pressure at which the load actually pulls. A unit that delivers 24 CFM at 90 PSI but only 15 CFM at 175 PSI will feel weak the moment a bead seater and an impact wrench run together, so we pushed manufacturers and owners for the high-pressure figure wherever it was published.
Duty cycle tells you whether the pump was designed for a shop or for intermittent weekend use. A machine rated at 100 percent continuous duty can sit at full load for a whole workday; one rated at 80 percent needs to cycle off and cool more often.
Finally, warranty length and parts access. Owners on shop forums repeatedly name the same handful of brands as the ones still running after a decade or two, and that pattern matched the units here with the longest published pump warranties and the most widely stocked service parts.
What Two-Stage Compression Does and Is It Worth It
Yes, a two-stage compressor is worth it in an auto shop. It compresses air twice with an intercooler between the passes, so it runs cooler and quieter while holding higher pressure. Single-stage pumps waste energy heating the air they squeeze, which is why they stall when two pneumatic tools run at once.
Here is the mechanism in plain terms. Air enters through the intake filter and is compressed in the low-stage cylinder. It then passes through an intercooler, where the heat from that first squeeze is removed, before the high-stage cylinder takes it the rest of the way to working pressure. An aftercooler drops the temperature again before the air enters the receiver tank, and from there the regulator and, if the work needs it, a dryer deliver stable pressure to your shop lines.
The payoff shows up in two places. The pump holds its rated pressure under a sustained load instead of sagging, and it does so at a lower operating temperature, which is what extends bearing and valve life. In a shop that runs more than roughly four hours a day, that difference decides how often you rebuild the pump.
The one case where a single-stage unit still makes sense is a one-bay shop doing light tire and oil work well under two hours a day. Everything past that, two-stage buys you fewer surprises.
1. Campbell Hausfeld XC802100 80 Gallon 5 HP Two-Stage Compressor
Campbell Hausfeld 80-Gallon Vertical Electric Air Compressor (XC802100)
11.3 SCFM at 175 PSI
80 gal vertical ASME tank
5 HP 230V single phase 22A
84 dB
Pros
- Quiet operation compared with older single-stage units
- Holds pressure under sustained tool demand
- Recovers from an empty tank quickly
- Made in USA with cast-iron construction
Cons

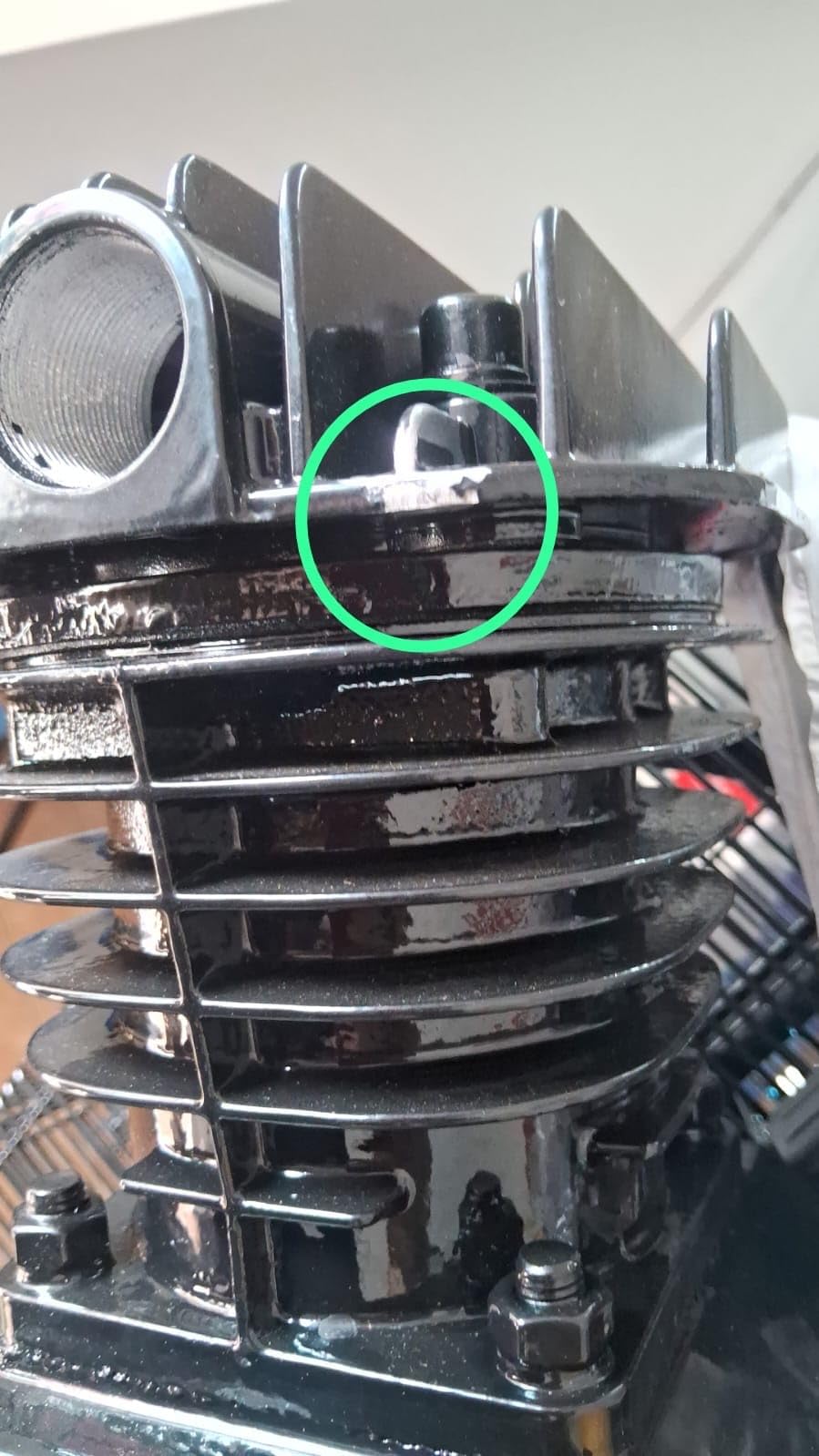

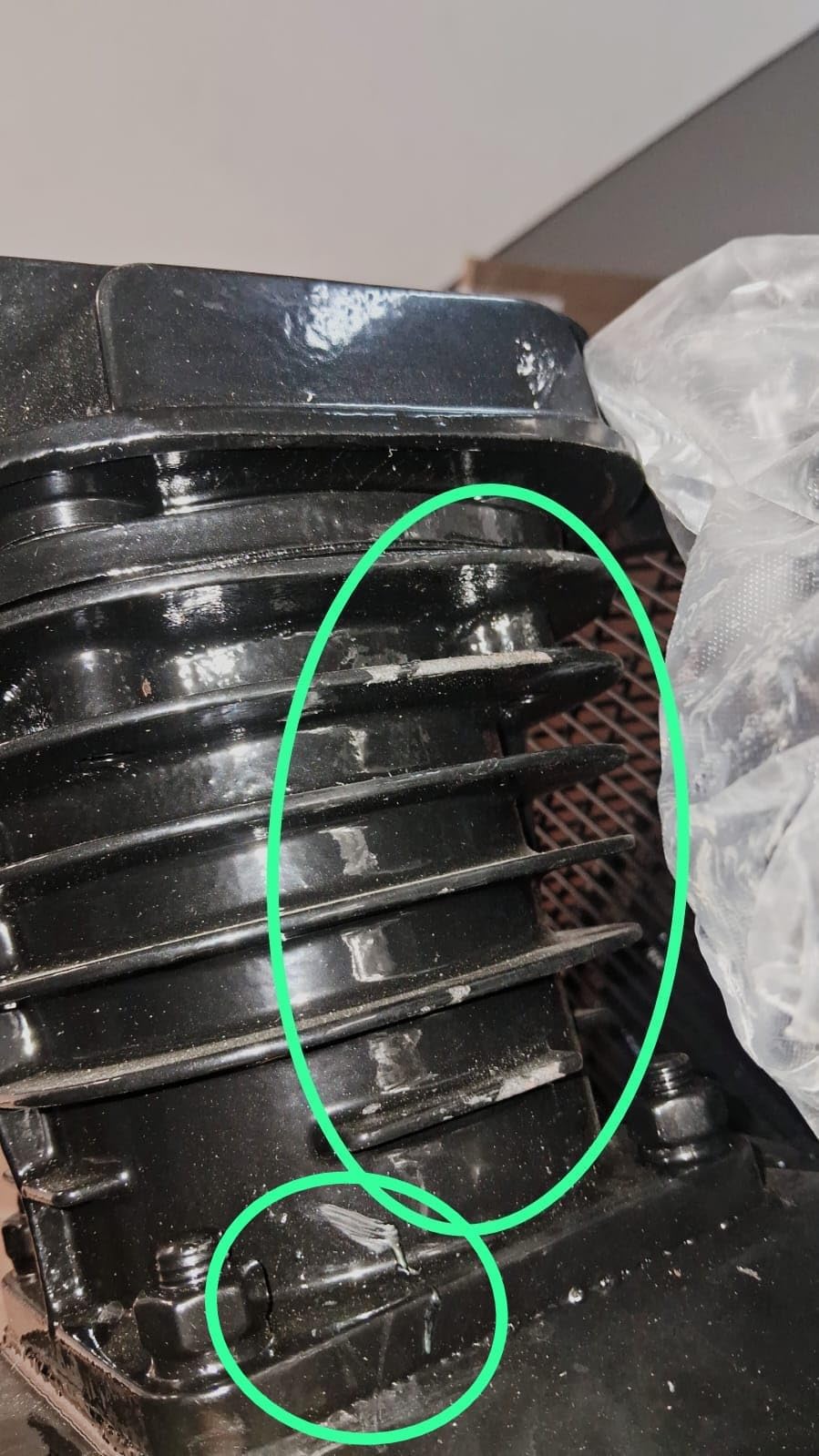

- Transmitted vibration
- needs anchoring to stop it walking
- Bottom drain plug is awkward to reach
- Weak on/off switch so many owners fit a lever disconnect
This is the unit we would put in a two-bay general repair shop, and it earned the top slot because it has the deepest verified owner history in this group: 130 ratings averaging 4.2 stars. Owners consistently describe it as a step up in the way the shop feels, because the pump holds pressure while a sander or blow gun is running instead of dipping.
The numbers line up with those reports. It delivers 11.9 SCFM at 90 PSI and 11.3 SCFM at 175 PSI, and both of those are published figures rather than estimates. The cast-iron, oil-lubricated two-stage pump carries a B-10 bearing rating that puts pump life at up to 10,000 hours, and the 5 HP single-phase induction motor draws 22A on 230V.
Two details matter more than the spec sheet when you install one of these. First, owners report noticeable transmitted vibration, and several say the machine will creep across a smooth shop floor if you do not anchor it. Second, the factory on/off switch is weak enough that a number of buyers fitted a lever disconnect right after delivery.
The drain plug position is the other recurring irritation. It sits low on the tank, so draining water means crouching into a tight corner with a bucket. If your bay layout gives you easy access to the base of the receiver, this is a five-minute job every few months; if the unit ends up tucked behind a lift, plan for a longer wrench.
Who the XC802100 suits
It suits shops running mixed pneumatic work across one or two bays, roughly two to four run hours a day. Eleven CFM at working pressure is enough for a hand impact, an air ratchet and a blow gun together, and the 80 gallon vertical receiver holds enough air to seat a tire bead without waiting on the pump.
It also suits anyone buying in the 5 HP class who wants the largest body of public owner feedback. When you can read 130 ratings, you learn that the vibration is real, the switch is weak, and the pump holds pressure, and you can plan around all three.
Where it falls short
It is not the choice for a multi-bay shop running two or three impact wrenches at full load while a booth draws air, because 11.3 CFM at 175 PSI will not carry that. Move up to a 7.5 HP machine in that situation.
Expect to anchor it and plan a weekly water check. Neither is a fault, but both are real tasks that a smaller single-stage unit in a hobby shop does not demand.
2. Ingersoll Rand 2340L5-V 60 Gallon 5 HP Type 30 Two-Stage Compressor
Ingersoll Rand 2340L5-V 5 HP Type 30 Two-Stage Air Compressor
14.3 CFM at 90 PSI
60 gal vertical tank
Cast iron 100 percent duty
230V single phase
Pros
- Markedly quieter than old single-stage units
- Motor and pump built for continuous duty
- Fills the tank to 150 PSI quickly
- Cast iron finish with a long service record
Cons
- Bottom drain fitting weeps and needs retightening
- No anti-vibration pads included
- Oil not supplied and a specific synthetic is required

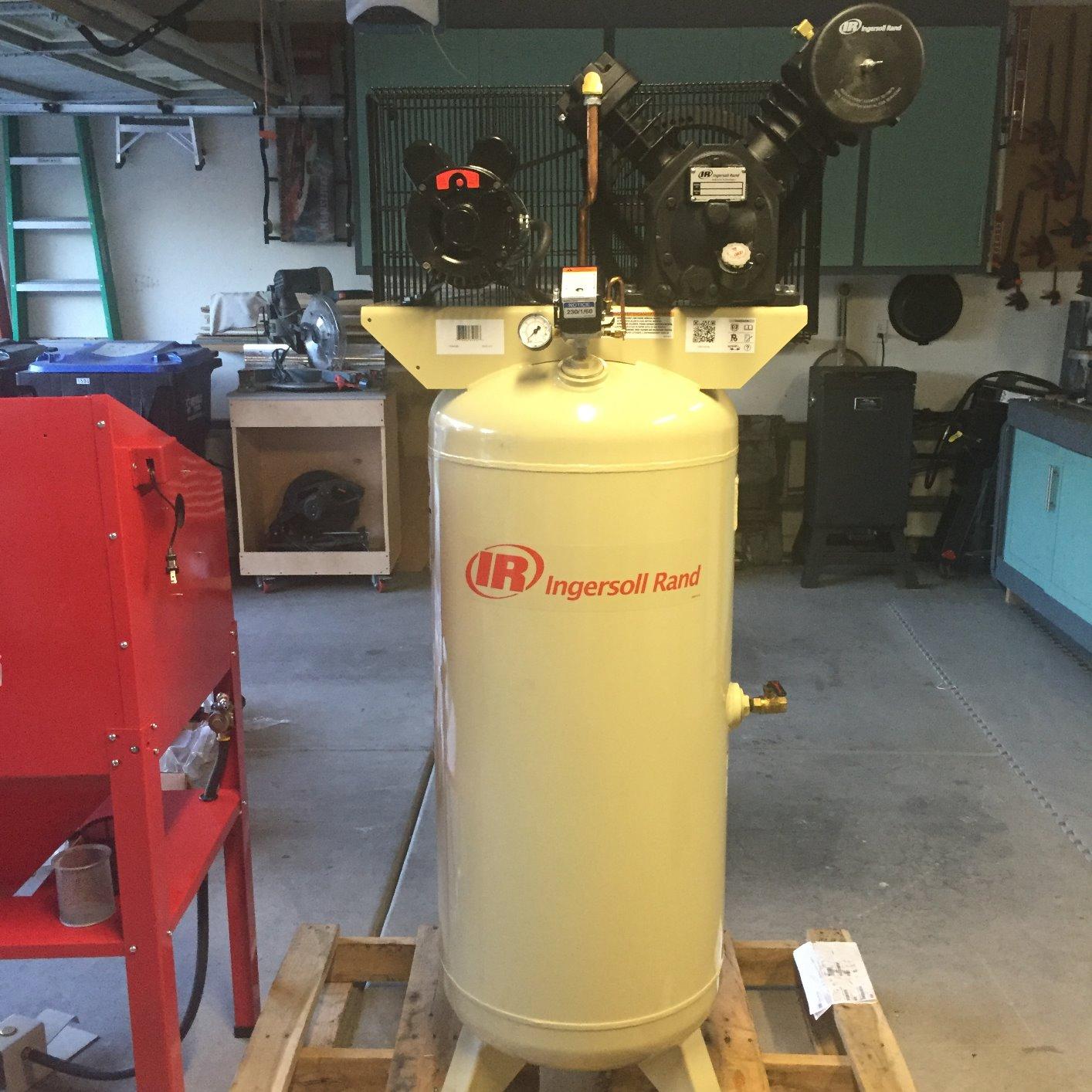

Ingersoll Rand built its reputation on industrial pumps that stay in service for decades, and this Type 30 unit is that design in a shop-friendly package. Its 34 ratings average 4.0, and owners report long service lives alongside a few recurring fit-and-finish complaints that are worth knowing before delivery day.
The construction detail that matters is the individually cast cylinders with an overhung crankshaft and a one-piece connecting rod. That layout is easier to service than a split-cylinder crankcase, and it is the reason Type 30 pumps show up in shops that have had them for thirty years. The cast-iron design is rated for 100 percent continuous duty, which means it can run all day at full load rather than needing cool-down windows.
Airflow is listed at up to 14.3 CFM at 90 PSI with a 175 PSI maximum pressure. Owners report that it fills the 60 gallon receiver to 150 PSI quickly and holds working pressure under continuous tool consumption, which is the behaviour you want when a tech leaves a tool running while setting up the next job.

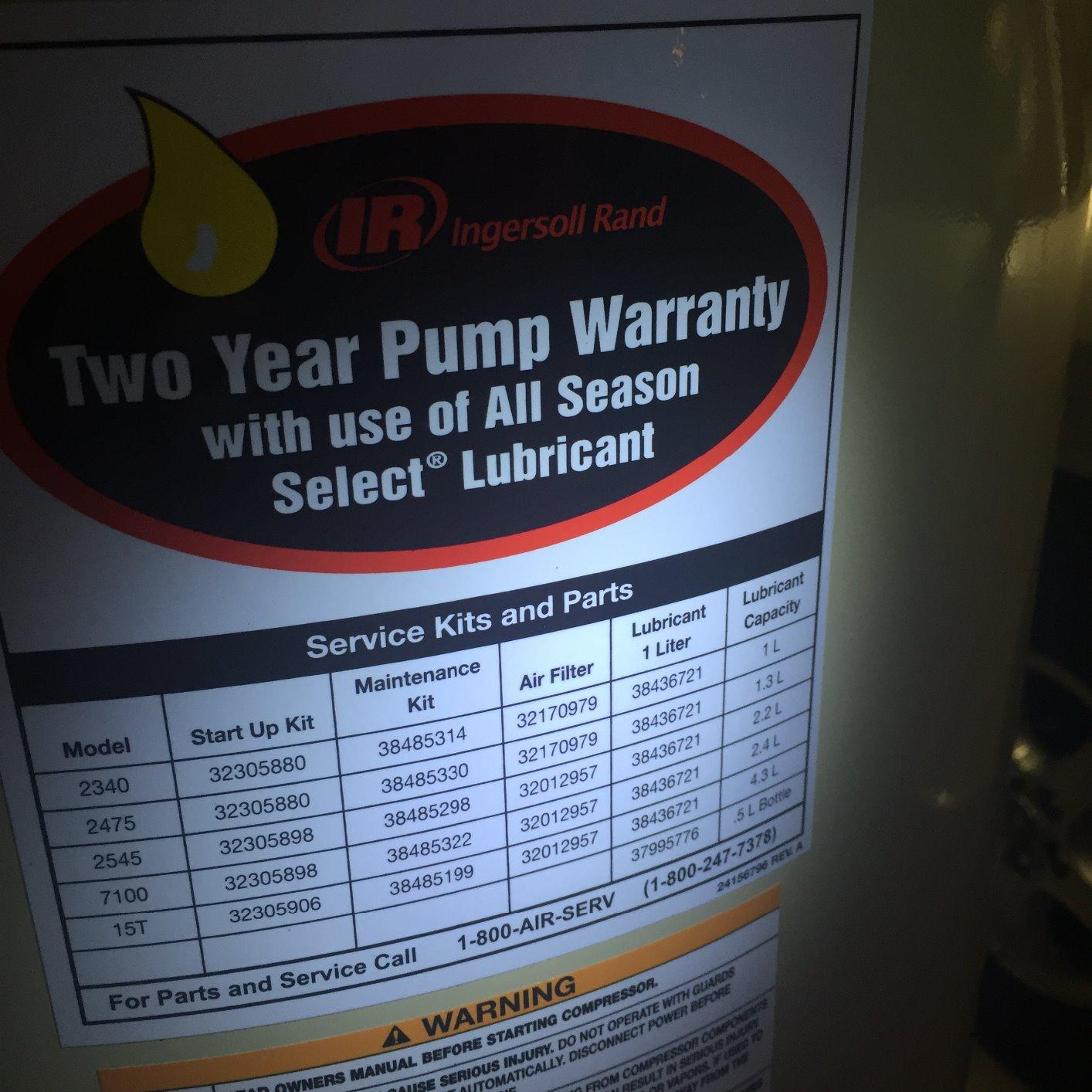

Two things catch new owners out. The oil is not included, and warranty coverage depends on filling the pump with the specific synthetic oil the manufacturer calls for. And the oil filler opening doubles as the level-check port, so it is genuinely easy to overfill and end up with oil on the floor the first time you service it.
Who the 2340L5-V suits
It suits a shop that wants an industrial-grade pump but only has 230V single-phase power and one bay to give up to it. The Type 30 continuous-duty rating means you can run impact wrenches, a brake bleeder sequence or a small blast cabinet for hours without worrying about duty limits.
It also suits anyone who plans to keep this machine for a decade or more. Cast iron, individually cast cylinders and a serviceable crankcase are exactly the traits that make a compressor repairable instead of replaceable, and that matters more in year eight than it does on day one.
Where it falls short
The 60 gallon receiver is smaller than the 80 gallon tanks most of the units in this roundup carry, so recovery between bursts is quicker than you get elsewhere. For heavy bead seating or long sandblast sessions, plan on a second tank or accept the wait.
Buyers also report the bottom drain fitting tending to weep, and no anti-vibration pads are supplied. A small number of owners received units with loose pump bolts or a stripped, cross-threaded drain plug, so check both before the first start.
3. Campbell Hausfeld HS5180 80 Gallon 5 HP Two-Stage Compressor
Campbell Hausfeld 80-Gallon 2-Stage Air Compressor, 5 HP, HS5180
13.7 CFM at 175 PSI
80 gal vertical ASME tank
5 HP 230V single phase 22A
87 dB
Pros
- Commercial-duty cast iron oil-lubricated pump
- 13.7 CFM at 175 PSI sustains shop tool loads
- Large ASME tank in a floor-saving vertical layout
- Front oil sight glass for fast level checks
Cons
- Compressor oil not supplied with the machine
- Published 87 dB figure is the highest among units listing one
- Weight and footprint are not published
The HS5180 is the airflow-per-dollar answer in this group. It delivers 13.7 CFM at 175 PSI, which is more working-pressure airflow than the higher-rated Campbell Hausfeld above it, and it does so on the same 5 HP single-phase electrical service.
That published high-pressure figure is the number to sit with. A sandblaster cabinet or a dual-action orbital sander pulls several CFM on its own, and the pump keeping that much flow at 175 PSI rather than at 90 PSI is what separates a shop compressor from a garage one.
The pump is described as commercial-duty cast iron, oil-lubricated, with up to 10,000 hours of life from its B-10 bearing rating. The 5 HP single-phase motor runs on 230V at 22A, and the 80 gallon vertical receiver is ASME certified, which is the code-relevant detail to check on any stationary shop tank.
Two small conveniences are built in. A front-mounted oil sight glass lets you check the oil level in seconds without pulling the pump guard apart, and an enclosed metal belt guard covers the moving drive components.
Who the HS5180 suits
It suits a one or two-bay shop on 230V single phase that wants more working-pressure airflow than the typical 5 HP listing claims. If your tool mix is sanders, grinders, a bead seater and an impact wrench rather than continuous sandblasting, that 13.7 CFM figure is comfortable.
It also suits shops with a mixed tool load where you want headroom. Running a sander plus a ratchet leaves roughly ten CFM of capacity before the pump even has to recover pressure, which means the tank handles the peak and the pump handles the average.
Where it falls short
The published noise figure is 87 dB, the highest among the units in this roundup that state one. In a retail-strip shop where customers can hear the bay, that is a real consideration, and a sound enclosure or a separate plant room is worth the planning.
Compressor oil is not included, and the manufacturer does not publish weight or dimensions for this model. Measure the bay before delivery rather than assuming it matches the other 80 gallon verticals.
4. Campbell Hausfeld TF211201AJ 80 Gallon 7.5 HP Two-Stage Compressor
Campbell Hausfeld 80-Gallon 2-Stage Air Compressor, 7.5 HP, TF211201AJ
24.5 CFM at 175 PSI
80 gal vertical tank
7.5 HP 230V single phase 31A
15000 hour pump rating
Pros
- Enough airflow to run several pneumatic tools at once
- 15000 plus hour pump rating at 80 percent duty
- Pre-wired magnetic starter simplifies installation
- Owners report years of daily service
Cons
- Oil not supplied
- One owner received a bowed base plate with misaligned pulleys
- Only six ratings so owner history is thin
This is the first unit in the list that behaves like a real shop compressor rather than a large garage machine. It delivers 24.5 CFM at 175 PSI, and the manufacturer publishes the full curve: 25.9 CFM at 40 PSI, 25.0 at 90 PSI, 24.5 at 175 PSI.
That near-flat curve is the point. Airflow barely falls as pressure climbs, so the tools see the air they are rated for even with a long hose and a bead seater drawing hard. A two or three bay shop running impact wrenches, a brake lathe and a spray booth in the same hour is the scenario this machine is built for.
The pump is cast-iron and oil-lubricated, rated for more than 15,000 hours and an 80 percent duty cycle. The 7.5 HP industrial-rated NEMA motor runs on 230V single phase at 31A and 60 Hz, and a pre-wired magnetic motor starter comes with it, which removes one of the more annoying electrical tasks at installation.
Who the TF211201AJ suits
It suits shops that have outgrown a 5 HP machine because two tools running together drop the pressure. Twenty-four CFM at working pressure covers a heavy impact wrench alongside a sander, or a booth supply alongside general bay work.
It also suits installers who want the starter already wired. A pre-wired magnetic starter means the electrician connects supply and load rather than building the starter, starter coil and overloads on site.
Where it falls short
An 80 percent duty cycle is lower than the 100 percent continuous rating on the Ingersoll Rand 2340L5-V, so it needs slightly more cool-down between long high-load stretches. For most shops that distinction never shows up.
The rating history is thin at six reviews, and one owner received a unit with a bowed motor base plate that left the pump and motor pulleys misaligned. Check pulley alignment and belt tension at first start rather than trusting the packing.
5. EMAX EHI07V080Y1 80 Gallon 7.5 HP Two-Stage Compressor
EMAX 80 Gal Electric Air Compressor, 7.5HP, 26 CFM, 2 Stage, 200 Max PSI
26 CFM at 100 PSI
200 PSI max pressure
80 gal ASME tank
Splash lubricated pump
Pros
- Quiet enough to hold a conversation three feet away
- Fills the 80 gallon tank from empty to 150 PSI in about six and a half minutes
- Keeps up with several machines running in a body shop
- Automatic tank drain works reliably
Cons
- Roughly 750 pounds so mechanical handling is needed
- Feature list names both an automatic and a manual tank drain
- Loose mounting hardware reported on some arrivals

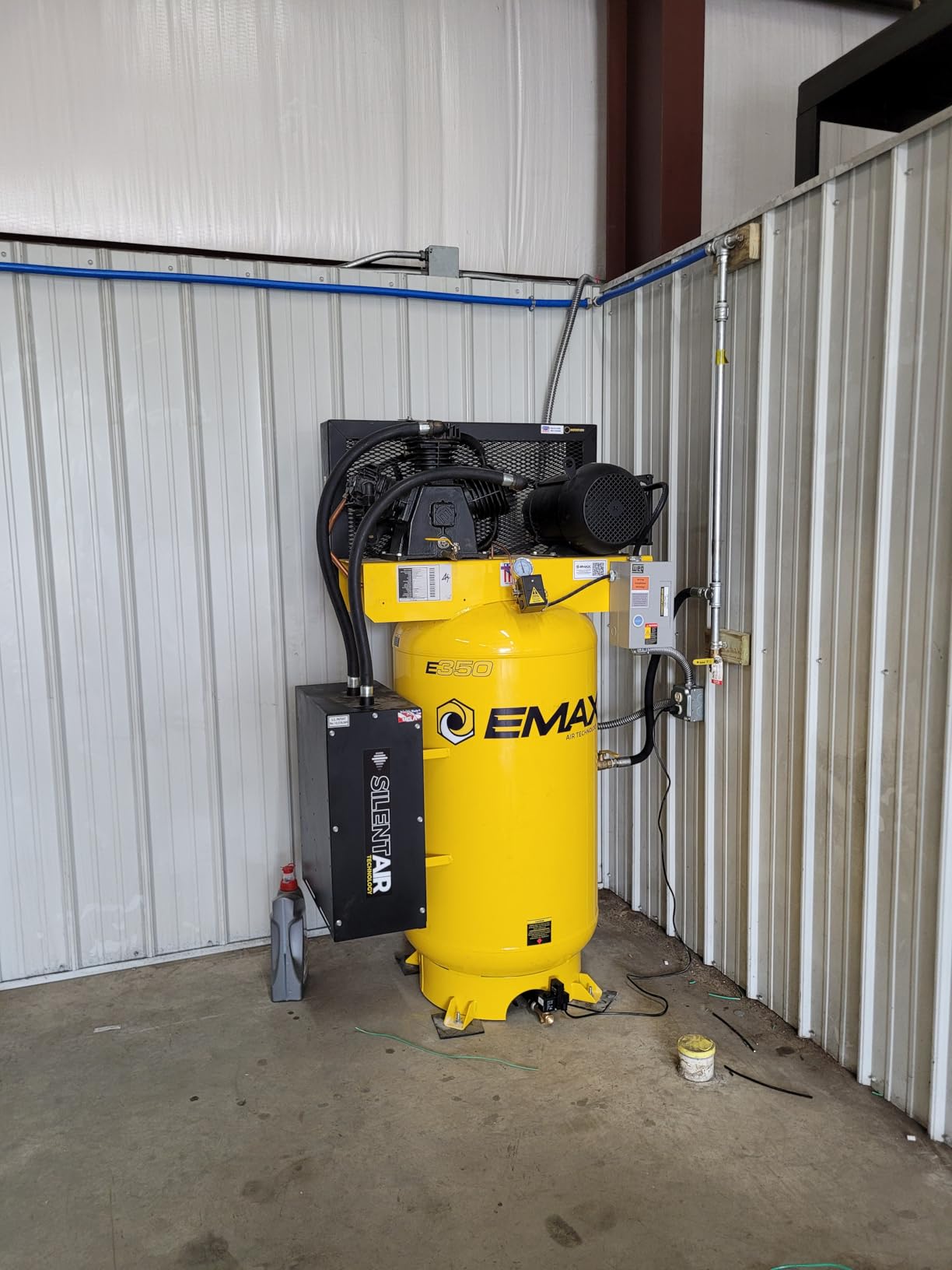

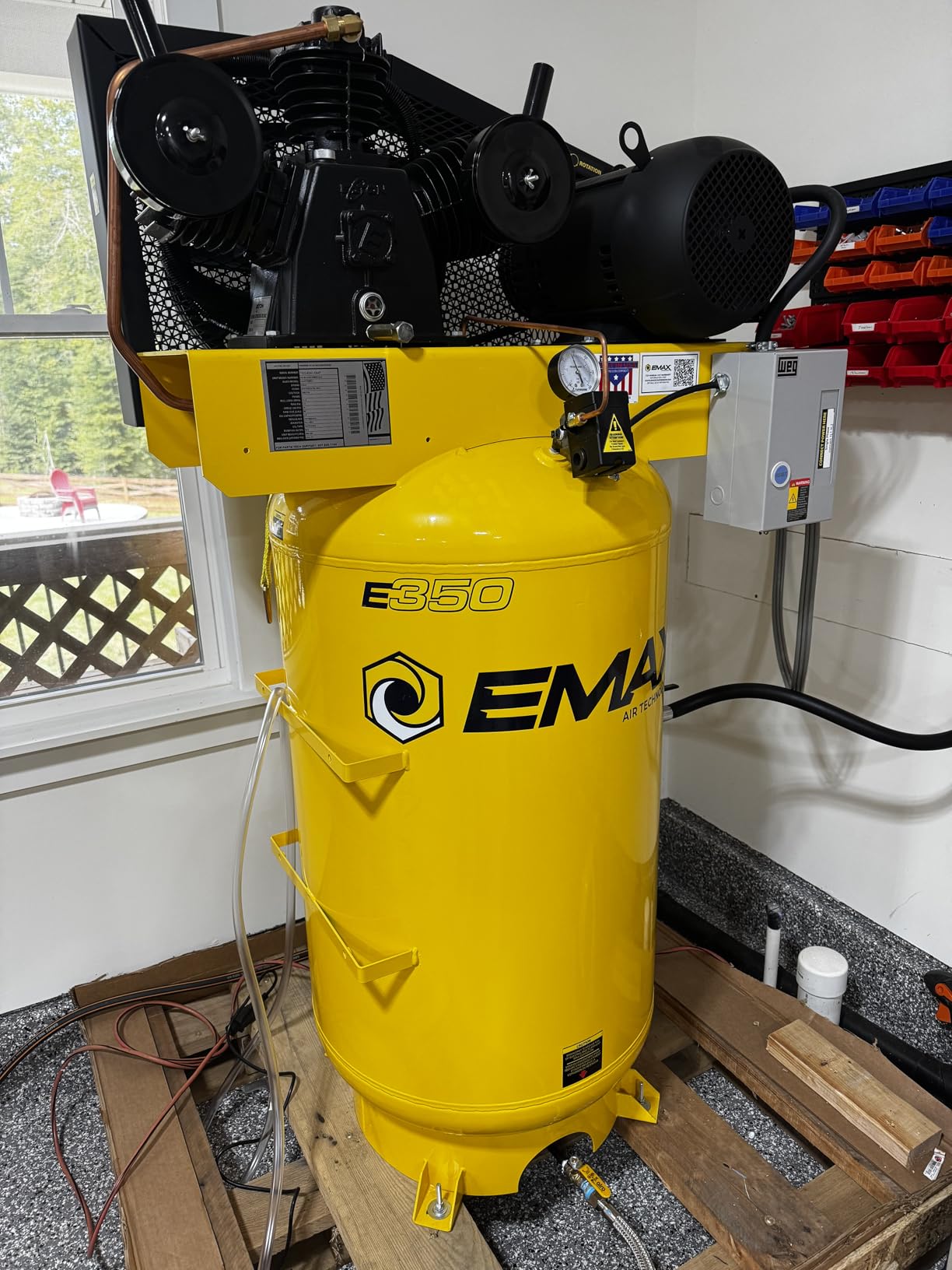

The EMAX 7.5 HP earned the highest owner rating in this roundup at 4.9 across 11 ratings, and the reasons owners give are consistent. They describe it as quiet enough to talk over, quick enough to recover pressure, and reliable enough that one operator says it keeps up while feeding five machines in a small body shop.
The recovery figure is the standout. Owners time an empty tank to 150 PSI at roughly six and a half minutes, which is fast for an 80 gallon receiver and means the tank is doing its job as a buffer rather than a reservoir you constantly wait on.
The pump is an all-cast-iron, splash-lubricated two-stage unit published at up to 50,000 hours of use, the longest pump life figure any unit in this group claims. The motor is a 7.5 HP industrial-grade single-phase machine, the tank is an 80 gallon powder-coated ASME steel receiver, and maximum pressure is rated at 200 PSI rather than the usual 175.
Two useful inclusions for a working shop are a magnetic starter and a three-quarter inch air outlet, plus a fully enclosed steel belt guard. The unit is built and tested in Ohio.
Who the EMAX 7.5 HP suits
It suits body shops, collision centres and busy service bays where noise matters because staff and customers share the space. The owner reports of holding a conversation at three feet are unusual for a machine this size.
It also suits shops whose tool list includes a blast cabinet or a booth supply alongside pneumatic hand tools. Twenty-six CFM at 100 PSI leaves real headroom for the intermittent high-draw devices that endows shop work.
Where it falls short
At roughly 750 pounds it is one of the heaviest machines here, which means a lift or mechanical handling for the move, not a hand truck. Plan the delivery path and the final position before the pallet arrives.
The feature list describes both a manual tank drain and an automatic tank drain system, and one owner reported a unit arriving without the advertised auto drain and with loose hardware. Confirm which drain ships with your unit and torque the mounting bolts before first start.
6. Quincy QT 271CS80VCB 80 Gallon 7.5 HP Two-Stage Compressor
Quincy Compressor QT Air Compressor — 7.5 HP, 80-Gallon, 2-Stage, 230V, 1 Phase, Model# 2020040716
7.5 HP two-stage pump
80 gallon vertical tank
1750 RPM motor
230V single phase
Pros
- Very quiet for a 7.5 HP thanks to the 1750 RPM motor
- Large air output for demanding duty cycles
- Made and assembled in the USA
- Units reported still looking and sounding new after a year
Cons
- No pressure regulator included
- Rated 160-175 PSI exceeds what many pneumatic tools tolerate
- First-start maintenance kit priced separately
The Quincy is the quietest large machine in this group by design, not by accident. Its slow-turning 1750 RPM motor is the reason owners coming off louder competitors describe it as dramatically quieter, and that same slow speed is the trait long-lived industrial pumps tend to have.
Construction is cast iron for both the pump and the tank, arranged as a two-stage 7.5 HP machine on an 80 gallon vertical receiver running on 230V single phase. Owners who spent months comparing shop compressors cite the slow motor, the cast-iron build and US assembly as their deciding factors.
Four ratings average 4.8, which is excellent but a very small sample. Owners report units still looking and sounding new after a full year of regular use, which is the most useful signal in such a thin data set.
Who the Quincy suits
It suits a shop where noise is the binding constraint, either because the bay is close to a waiting area or because technicians cannot hear a customer. The published noise figure of 68 dB is well below the mid-80s figures several competitors state.
It also suits shops that value serviceability. A 1750 RPM direct-coupled-style industrial motor is straightforward to work around, and cast-iron pump components are the parts most likely to still be available in a decade.
Where the Quincy falls short
No pressure regulator is included, and the rated 160 to 175 PSI output exceeds what many pneumatic tools tolerate. Add a properly rated regulator before connecting anything, which is a standard practice anyway but worth knowing before the machine is plumbed in.
The listing does not publish a CFM airflow figure, so you are buying on pump size, motor speed and build rather than a measured number. Budget time for a first-start maintenance kit for filters and oil, which is priced separately.
7. Ingersoll Rand COMP AIR 80 Gallon 7.5 HP Two-Stage Compressor
Ingersoll-Rand COMP AIR 7.5HP 2 Stage
24 CFM at 175 PSI
80 gallon vertical tank
7.5 HP motor
Cast iron build
Pros
- Two-stage 175 PSI design for sustained shop duty
- 24 CFM from a 7.5 HP motor in an 80 gallon tank
- High-efficiency finger valves
- Precision-engineered components
Cons
- Repair-only warranty limited to one year
- Electrical service is not stated in the published specifications
- Only four ratings of owner feedback
The COMP AIR puts 24 CFM at 175 PSI into an 80 gallon vertical package from a 7.5 HP motor, which puts it in the same working-pressure airflow class as the largest machines here. Ingersoll Rand states the rating as 24 CFM and 175 PSI together rather than splitting the curve, and those two numbers are what you should size against.
The pump uses high-efficiency finger valves, a design that reduces the compression work lost at the valves. Combined with a two-stage layout, that is where the efficiency at high pressure comes from, and it is the reason the unit holds pressure under sustained load rather than only producing a good peak number.
Owners describe the reaction to this machine as positive across the board, though with only four ratings averaging 4.6 there is very little commentary to draw on. The machine weighs 605 pounds, which tells you how much cast iron is in the package.
Who the COMP AIR suits
It suits a shop that already knows its airflow requirement and wants a known industrial brand behind it. If your load is a brake lathe and a pair of impact wrenches, 24 CFM at working pressure covers it with margin.
It also suits shops buying for resale or for a business that will keep running the machine long after the original owner has moved on. The brand has one of the deepest service networks in the industry.
Where it falls short
The warranty is repair-only and limited to one year, which is thinner than the two and three year coverage on several units in this roundup. That matters most if you are not comfortable doing your own pump work.
The published specifications do not state the electrical service for this model. Confirm single-phase versus three-phase and the required breaker size with the manufacturer before ordering, because a 7.5 HP motor on the wrong supply is a wiring problem you do not want to discover after delivery.
8. BelAire 318VL 80 Gallon 7.5 HP Two-Stage Compressor
BelAire 318VL 7.5 HP 80 Gallon 1-Phase Vertical 2 Stage Air Compressor with Starter
25.3 CFM airflow rating
208-230V single phase
80 gallon vertical tank
2 year full warranty
Pros
- High 25.3 CFM two-stage output for continuous workloads
- Starter ASME safety valves and belt guard all included
- Tank drain and discharge valve fitted
- Two-year full warranty on material and workmanship
Cons
- Airflow rating is not quoted at a stated pressure
- Only 230V single phase in this configuration
- Just three owner ratings
The BelAire 318VL is built for a shop fit-out, where the difference between a machine that arrives with its safety valves, starter and drain fitted and one that does not is the difference between an afternoon and a week. All of those items are listed as included.
The specification set is what you would want in a new build: a 7.5 HP two-stage machine on an 80 gallon vertical tank at 208 to 230V single phase, with a 25.3 CFM airflow rating, start-stop pressure switch control, ASME safety valves, a fully enclosed belt guard, and a tank drain and discharge valve.
The warranty is the differentiator against several competitors here: two full years on material and workmanship rather than one year repair-only. The machine weighs 479 pounds, which is lighter than most 7.5 HP units in this roundup that publish a weight.
Who the 318VL suits
It suits a shop fitting out new bays where you want the pressure vessels, drains and drive guard supplied from the factory rather than sourced separately. The included starter in particular removes a common installation delay.
It also suits a shop that wants a clear two-year parts and workmanship commitment behind a machine whose tank and pump are the two things that can fail.
Where it falls short
The 25.3 CFM figure is published without a stated test pressure. Treat it as a shop-duty number rather than a working-pressure number, and if your load is abrasive or high-draw, ask the manufacturer for airflow at 175 PSI.
Ownership feedback is limited to three ratings, all five stars, so there is no track record to lean on. Confirm the electrical service with your panel capacity before ordering, since this configuration is single phase only.
9. EMAX E350 ESP05V080I1 80 Gallon 5 HP Silent Two-Stage Compressor
EMAX E350 Stationary Air Compressor – 5hp 80 Gal. 2 Stage Single Phase Industrial Compressor with Pressure Lubricated Pump & Silent Air System – ESP05V080I1
5 HP pressure lubricated pump
80 gallon vertical tank
65 dB with silencer
Cool-Tek air stream
Pros
- Quietest unit owners had run in class
- Large slow-turning compressor design favoured for longevity
- Soft start reduces startup stress
- Accessible oil filter and drain with a working auto drain valve
Cons
- Warranty terms differ between the listing and the description
- 715 pounds needs mechanical handling
- Five HP ceiling limits heavy simultaneous loads
The E350 is the quiet 5 HP option. Its 65 dB published figure and silencer configuration put it in a different acoustic class from the mid-80s machines in this roundup, and owners who spent months comparing shop compressors call it the quietest unit they have run.
Unlike most oil-lubricated reciprocating pumps, this one is pressure-lubricated, which means oil is delivered to the bearing surfaces rather than splashed into the crankcase. That is a meaningful difference in a machine that will sit under a heavy load for hours, and it comes with an oil drain valve and an extended pump warranty.
The Cool-Tek air stream system is designed to cut moisture in the delivered air and lower operating temperature by about 35 percent, according to the manufacturer. Combined with a soft-start motor, it is a package built around running long hours quietly rather than peak numbers.
Who the E350 suits
It suits shops in retail-strip locations or bays where a customer can hear the compressor, where an 84 dB machine is a complaint waiting to happen. The quoted 65 dB is the figure that changes that conversation.
It also suits shops that want lower moisture in the delivered air without adding a separate dryer, and shops that value service access. Owners single out the reachable oil filter, the drain and the automatic drain valve as things that work as intended.
Where it falls short
Five horsepower is the ceiling here. It will not carry two heavy impacts plus a booth supply, and if that is your load you need the 7.5 HP class instead.
One owner noted that the warranty terms differ between the product page and the description, so get the pump warranty term in writing before purchase. At 715 pounds it also needs mechanical handling for the move.
10. Industrial Air IV7518075 80 Gallon 7.5 HP Two-Stage Compressor
Industrial Air IV7518075 Vertical 80 gallon Two Stage Cast Iron Industrial Air Compressor
21.2 CFM at 175 PSI
Cast iron tank and pump
230V AC heavy-duty motor
Pre-wired magnetic starter
Pros
- Cast-iron tank and two-stage pump for heavy-duty service
- 21.2 CFM at 175 PSI from a 7.5 HP motor
- Motor protection against voltage fluctuations
- Pre-wired and mounted magnetic starter and control panel
Cons
- Only two owner ratings available
- No published noise figure for bay planning
- 623 pounds requires planned handling
The Industrial Air IV7518075 is the one in this group built explicitly around supply voltage problems. Its heavy-duty motor is protected against voltage fluctuations, which matters in older shop buildings where the compressor often shares a circuit range with welders, chargers and door openers.
Airflow is published at 22.1 CFM at 100 PSI and 21.2 CFM at 175 PSI. That is genuine working-pressure airflow from a 7.5 HP motor, and it sits in the same class as the other 7.5 HP machines here once you read the number at 175 PSI rather than at 100.
Both the tank and the two-stage pump are cast iron, which is what you want for a machine that will see shop loads rather than occasional use. The package includes a pre-wired and mounted magnetic starter and an integrated control panel, so the electrical install is shorter than a bare pump package.
Who the Industrial Air suits
It suits shops on an older electrical service where voltage sags are a known occurrence, or where a welder, a battery charger and the compressor all land on the same panel. The motor protection is the reason to pick this over a similarly priced unit without it.
It also suits installers who want the starter already mounted and wired, and shops that want cast iron in both the receiver and the pump for long service life.
Where it falls short
Two ratings, both five stars, is essentially no ownership history. Everything positive you can say about this machine comes from the specification sheet rather than from people who have run it for a year.
No noise figure is published, so you cannot plan acoustics from the data. At 623 pounds it needs a planned move, and it draws enough power that you should confirm your panel has capacity for a 7.5 HP 230V single-phase load before ordering.
11. BelAire 318VN 80 Gallon 5 HP Two-Stage Compressor
BelAire 318VN 5 HP 80 Gallon 1-Phase Vertical 2 Stage Air Compressor
18.6 CFM airflow rating
208-230V single phase
80 gallon vertical tank
428 pounds
Pros
- 80 gallon tank holds air well with no leaks
- Quiet for a compressor of its size
- Good fit and finish
- 2 year warranty on material and workmanship
Cons
- Intake air filter housing is not included and the port arrives capped
- Airflow rating not quoted at a stated pressure
- Only two owner ratings
The BelAire 318VN is the lighter, quieter 5 HP option, and at 428 pounds it is one of the easiest machines in this roundup to position in a bay. One owner reports that the 80 gallon tank holds air well with no leaks, and another calls it quiet for a compressor of its size with good fit and finish.
The specification set is a straightforward shop package: a 5 HP two-stage pump on an 80 gallon vertical tank at 208 to 230V single phase, with an 18.6 CFM airflow rating, start-stop pressure switch control, ASME safety valves, a fully enclosed belt guard, and a tank drain and discharge valve. The warranty is two years on material and workmanship.
Dimensions are published at 39 inches long by 24 wide by 77 high, which is useful when you are fitting it against a wall in a narrow bay rather than guessing like you would with several of the other units here.
Who the 318VN suits
It suits a one-bay or two-bay shop with tight floor space and a single-phase supply that wants more airflow than a 5 HP competitor at 11 CFM. Eighteen CFM handles a sander plus an impact wrench with room left over.
It suits buyers who have been burned by missing components. The BelAire specification list is unusually complete about what ships, which makes it easier to plan an install.
Where it falls short
The intake air filter housing is not shipped with the compressor, and the port arrives capped even though the product photos show it fitted. Budget for the filter housing and an intake element before first start, because an unfiltered pump is a pump you are shortening the life of.
The 18.6 CFM figure is not quoted at a stated pressure, so confirm it at 175 PSI if your load is high-draw. Only two ratings exist for this model.
12. ATLAS MP-6580V2 AF6 80 Gallon 5 HP Three-Cylinder Two-Stage Compressor
ATLAS Automotive Equipment AF6 Vertical 80 Gallon Air Compressor, 3 Cylinder, 2-Stage Pump, 5hp Running Motor, 90-175 PSI, 220V Single Phase, Quiet Operation, 1/2″ NPT Air Outlet, Made in USA
Three cylinder two-stage pump
5 HP running motor
80 gallon US-made tank
220V single phase
Pros
- Three-cylinder two-stage pump design
- Steadier higher-volume delivery than single-cylinder units
- 80 gallon vertical tank made in the USA
- Quiet operation as a design goal
- 1/2 inch NPT air outlet
Cons
- Only one owner rating available
- Airflow not published in CFM
- 1 year warranty on material and workmanship
The ATLAS AF6 is unusual among shop compressors because it uses a three-cylinder, two-stage pump rather than the more common two-cylinder arrangement. With more cylinders working against a smaller volume each, the delivery is steadier, which is the practical argument for this design.
The rest of the package is aimed squarely at the automotive trade. It is a 5 HP running motor on an 80 gallon vertical tank made in the USA, rated 145 to 175 PSI, running on 220V single phase, with a half inch NPT air outlet sized for the hose runs in a working bay.
Steady delivery at working pressure is what matters most for tools that pulse. An impact wrench does not draw air smoothly; it surges. A pump with more, smaller cylinders tends to hold pressure better through those surges than a two-cylinder pump of the same displacement.
Who the ATLAS AF6 suits
It suits shops that run pulsed high-consumption tools, where pressure stability between surges is the thing you notice. The half inch outlet also suits longer fixed line runs with multiple drop points.
It suits buyers who want a US-made receiver and a 5 HP class machine that fits a 220V single-phase service, without moving up to a 7.5 HP load on the panel.
Where it falls short
There is a single owner rating, so every judgement here rests on the specification sheet. That is a real limit, and it is worth asking a dealer for a demonstration run before committing.
Airflow is not published in CFM and the warranty is one year on material and workmanship, which is the thinnest coverage among the units in this roundup. Ask the manufacturer for a CFM figure at 175 PSI and for the pump service parts list before you buy.
How Much CFM an Auto Shop Actually Needs
Add up the CFM of every tool that can run at the same time, add a 25 to 30 percent buffer, and then match that number to the CFM published at 175 PSI. That is the whole calculation, and it takes about ten minutes with the tool list from your shop manual.
A single heavy impact wrench can draw around 20 to 30 CFM while breaking a lug nut, and an air sander holds 15 to 20 CFM for as long as you keep it on the trigger. Two of those running together is where an 11 CFM compressor starts to sag, and where a 24 CFM machine starts to feel effortless.
For tire work, plan separately. Bead seating and nitrogen filling pull hard air at high pressure, so the useful number is working-pressure airflow, not the peak figure at low pressure. Bead blasters are the single most demanding pneumatic load in a tire shop, and they are the reason a shop doing serious bead work should size above its everyday tool load.
Receiver size is the second half of the calculation. Tank capacity smooths the difference between peak draw and average draw, which is why shop forum consensus says to spend more of your budget on tank than on horsepower when you run under four hours a day. A larger tank lets a smaller pump cover intermittent peaks; a smaller pump with a big tank will still be slow when a sandblaster runs for a full minute.
The threshold that matters is run hours. Below roughly four hours per day, a two-stage piston machine is the right answer and gives you the lowest ownership cost per service hour. Above four hours, especially with a blast cabinet or multiple impact wrenches running continuously, a rotary screw starts to earn its place on running-hour economics and on lower heat output in the bay.
Electrical Service: 120V, 240V Single Phase or Three Phase
Your electrical service is the hard ceiling on compressor size, and it is the single most common mistake new shop owners make. Nearly every two-stage compressor rated for real shop work in this roundup is a 230V single-phase machine drawing 22A to 31A, which means a dedicated 40A circuit.
Roughly speaking, 120V at 15A supports about 1.5 HP, which is garage territory rather than shop territory. A 240V single-phase circuit at 30A supports a compressor in the 3 HP to 5 HP range comfortably. Once you move to 208 or 240V three phase, you unlock 7.5 HP and 10 HP machines and everything above. At 480V three phase, larger units become practical.
Two of the machines here carry a magnetic starter supplied or pre-wired, which is the piece that makes a three-phase connection straightforward. Both of the 7.5 HP models with included starters are single phase, so you can stay under the three-phase threshold with a 40A 240V circuit.
If your building cannot give you three phase, shop owners commonly treat a rotary phase converter as the middle path instead of a utility upgrade. It lets you run a three-phase motor from single-phase supply at roughly a ten percent efficiency penalty, which is often cheaper than a service upgrade and easier to schedule.
Whatever you choose, the compressor goes on a dedicated circuit with its own disconnect, not on a shared receptacle. Mount the receiver on an automatic tank drain, run a moisture separator before anything feeding a paint booth, and put the dryer where the air quality chain starts rather than where it is convenient.
Tank Size, ASME Tanks and Air Quality in the Bay
Check for ASME certification on the receiver before anything else, because an uncertified stationary tank is a code problem in most jurisdictions and an insurance problem after a claim. Nine of the twelve units here state an ASME receiver explicitly, and the rest are sold into the same shop market.
Vertical tanks win in almost every auto bay because they use floor area rather than wall length, which matters when you are sharing space with a lift. Horizontal tanks are worth considering only when headroom is tight or you need to pass a tank under an overhead door.
Oil-lubricated versus oil-free is a smaller question than most buyers expect. Every machine in this roundup is oil-lubricated, because that is how two-stage cast-iron pumps handle shop load and duty cycles. The oil question really belongs to the air quality chain downstream.
For paint work, add a water and oil separator, then a dryer, then an automatic tank drain. Paint-focused operators insist on a separator and dryer regardless of which compressor they run, because oil carryover and moisture in the line produce fisheye defects that cost a respray. Our air compressor guide for painting cars covers that chain in more detail.
For everything else, a good auto drain on the receiver plus a separator at the point of use keeps water out of the lines without the running cost of a refrigerated dryer.
Noise, Duty Cycle and Brand Service Networks
Published noise figures in this group run from 65 dB to 87 dB, and that range matters more in a retail-strip shop than the specification suggests. Occupational exposure limits treat sustained levels above 85 dB over an eight-hour day as a hearing hazard, so the machines that state 84, 85 and 87 dB are at or above that line by their own published numbers.
If your bays are customer-facing, the two quiet units in this roundup are the practical answer. The EMAX E350 is published at 65 dB with a silencer configuration, and the Quincy QT is published at 68 dB with a 1750 RPM motor. Both sit roughly twenty decibels below the loudest listings.
Duty cycle is the number that tells you how the machine was specified. A 100 percent continuous duty rating, as on the Ingersoll Rand 2340L5-V, means the pump can hold load all day. An 80 percent rating, as on the Campbell Hausfeld TF211201AJ, needs periodic cool-down. Most shops never notice the difference; high-hours operations do.
Service network is the last filter. Owners on shop forums repeatedly name Ingersoll Rand, Quincy and the established cast-iron brands as the ones whose pumps are still running after decades, and parts availability in your region is worth more than a small airflow gain. Our home garage compressor guide covers the smaller end of the market if you are planning a two-machine setup, one per bay.
Frequently Asked Questions
What is the best air compressor for an automotive shop?
For most one to six bay repair and tire shops, the best choice is a two-stage piston compressor on a 230V single-phase dedicated circuit, with 11 to 24 CFM published at 175 PSI and an 80 gallon vertical ASME receiver. The Campbell Hausfeld XC802100 covers typical two-bay work, while the TF211201AJ and the Ingersoll Rand COMP AIR give you 24 CFM at 175 PSI for running multiple tools at once.
Is a 2 stage air compressor worth it?
Yes, in an auto shop a two-stage compressor is worth the premium. It compresses in two passes with an intercooler between them, so it runs cooler and quieter and holds its rated pressure when two pneumatic tools run together instead of sagging. The gain shows up most in pump life if the shop runs the machine more than about four hours a day.
What is the best 2-stage 60 gallon air compressor?
The Ingersoll Rand 2340L5-V is the strongest 60 gallon two-stage machine in this group. Its cast-iron Type 30 pump is rated for 100 percent continuous duty, it delivers up to 14.3 CFM at 90 PSI, and owners report long service lives. Note that the bottom drain fitting tends to weep and that compressor oil is not included with the unit.
Do I need three-phase power for an air compressor?
You do not need three phase for most shops. Nearly every two-stage compressor rated for real shop work in this roundup runs on 230V single phase at 22A to 31A, which needs a dedicated 40A circuit. Three phase unlocks larger 7.5 HP and above machines. If three phase is not available, shop owners commonly use a rotary phase converter rather than a utility upgrade.
How many CFM do I need for an auto repair shop?
Add the CFM of every tool that can run at once, then add a 25 to 30 percent buffer. One heavy impact wrench can draw 20 to 30 CFM and an air sander holds 15 to 20 CFM. A one to two bay shop usually lands between 11 and 18 CFM at 175 PSI, while a multi-bay shop running impacts, a brake lathe and a booth together needs 24 CFM or more.
What is the most reliable brand of air compressor?
Reliability in shop compressors tracks pump construction rather than badge alone. Cast-iron individually cast cylinders, an overhung crankshaft and a serviceable crankcase, as on the Ingersoll Rand Type 30 design, are the traits that let a pump be rebuilt rather than replaced. Long published pump life ratings, ASME receivers and a local dealer network for parts are the practical filters to apply.
Which Two-Stage Compressor Fits Your Shop
For a one or two bay shop on 230V single phase running mixed pneumatic work, the Campbell Hausfeld XC802100 is the pick with the deepest verified owner history. For shops that need genuine working-pressure airflow for impacts, a lathe and a booth running together, move up to the Campbell Hausfeld TF211201AJ or the Ingersoll Rand COMP AIR at 24 CFM at 175 PSI. For noisy retail locations, the EMAX E350 and Quincy QT are the quiet options, published at 65 and 68 dB.
Our overall choice for 2026 stays the XC802100, because cast-iron construction, an ASME vertical receiver and 130 ratings of real-world feedback make it the least risky purchase in the group. Whatever you choose, size the airflow at 175 PSI, confirm the electrical service before you order, and add a separator and dryer before any paint work. Those three checks prevent most of the complaints we saw across a thousand ratings of shop feedback.
